Brief introduction and Application

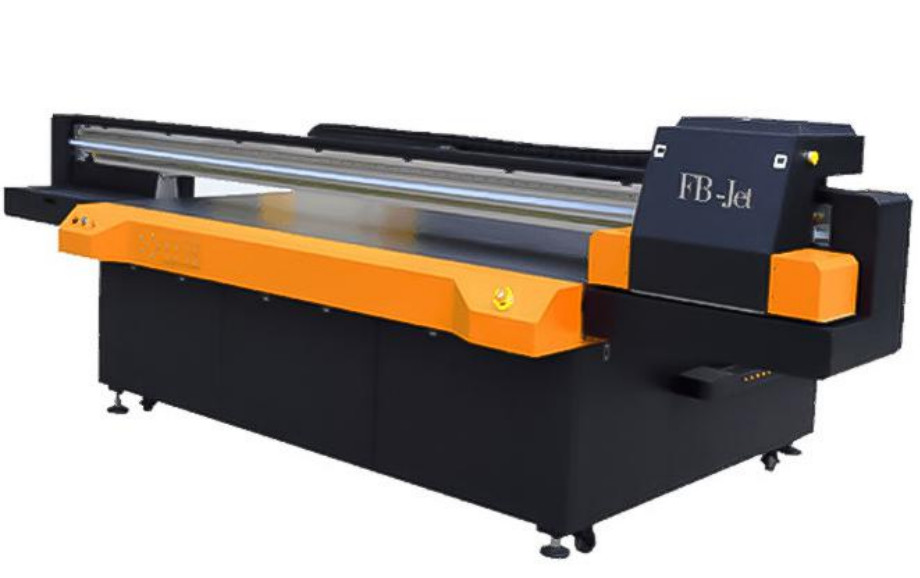

FB-JET is a flatbed digital inkjet printing machine suitable for corrugated carton printing. It could use UV ink.
Technical data
| Model | FB-JET |
| Print Head | RICOH GENS |
| Head Quantity | Maximum 8 heads |
| Print Model | Unidirectional printing , Bidirectional printing |
| Resolution |
600dpi*600dpi 600dpi*1200dpi 900dpi*1200dpi |
| Speed |
Production Model:58㎡/h Standard Model:38㎡/h Hi-resolution Model:30㎡/h |
| Color Option | CMYK,CMYKLcLm,(White,Vanish) |
| Port | USB3.0 |
| Print Size | 2500mm*1300mm |
| Print Thickness | 1-100mm |
| Machine Dimension | 4150mm*2100mm*1380mm(L*W*H) |
| Environment | Temperature:20-32°C, Humidity:40%-70% |
| Power | AC220V±10% 50-60 hz |
Machine features
Dual Lead Screw Driver
◆Using imported high precision servo control system & Dual lead screw rational matching for transmission system,to ensure ultra-high precision for transmission
High Precision Core Components
◆Core component by imported CNC precision machining
◆Overall precision index increase effectively more than 25%
Print Head Automatic anti-collision System
◆Carriage automatically stop in collision accident to avoid print head broken
Rigid Oxidized of Wind Suction
◆Using famous brand rigid oxidized of wind suction,prevention scratches to platform by rigid materials
Electronic Wind Suction System
◆Technology-leading in the industry,longer service life,easy to operation
