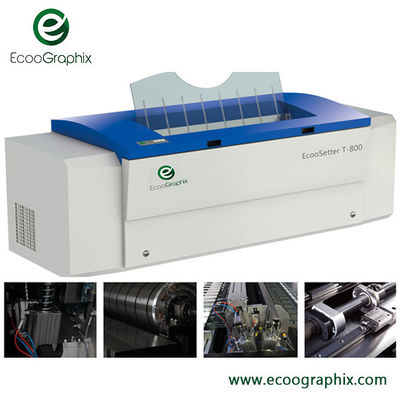

28pph Thermal CTP T-800 Series Platesetter Manual Offset Printing Machine
1. Application
EcooGraphix Thermal CTP(Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor.
By the EcooGraphix CTP, the customer can get Excellent output image quality, highly reliable stability, less space occupied with more flexibility.
EcooGraphix T-800series thermal CTP are for A1 or B1 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual, very easy to use.
2. Characteristic
Maximum size of plate: 1,163×940mm
Features: Less manpower, high stability and perfect output quality
UV plate and thermal plate are available for you to lower production cost.
3. Specification
| EcooSetter T-800 Series Thermal CTP Specifications | |||
| Model | T-800F | T-800S | T-800E |
| Exposing Method | External Drum | ||
| Imaging System | 64-channel | 48-channel | 32-channel |
| Discrete 830nm laser diode | |||
|
Throughput |
28 plates/hour | 22 plates/hour | 16 plates/hour |
| 1,030mm × 800mm, 2400dpi | |||
| Plate Size | Max. 1,163 × 940mm, Min. 300 × 400mm | ||
| Media Type | Positive 830nm thermal CTP plate | ||
| Plate Thickness | 0.15mm to 0.30mm | ||
| Resolution | 2400dpi | ||
| Repeatability |
±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23℃ and humidity of 60%) |
||
| Interface | USB2.0/ USB3.0( USB2.0 is recommended ) | ||
| Plate Loading | Manual | ||
| Net Weight | 900 KG | ||
| Machine Size | 2,320 × 1,080 × 960 mm( L×W×H ) | ||
| Power Supply | Single phase: 220AC, +6%, -10%, Power Consumption: 4KW | ||
| Operation Environment |
Recommended: 21-25℃, Max. 15-30℃, Humidity: 40-70% | ||
4. Major Highlights
1) Superior dot quality reproduction proven by worldwide market:
1%-99% dot reproduction
Up to 250lpi screening, 2400 dpi or 1200dpi optional
2) Fully qualified: for any thermal non-process plate and process plates.
3) Robustness and simplicity: robust machine and easy to use. User friendly and simple design to avoid human error.
4) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA and Germany
5) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)
6) Long warranty of the machine:
3 years warranty (free replacement of all parts)
Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.
7) Guaranteed service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved.
Regular remote maintenance to be conducted every 2 months. Proactively revisit by engineers to be conducted. 7x24 hours service response.
8) Proven worldwide market leader:
Over 6000 units installed worldwide over past 10 years
USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.
Turkey: 35 units installed in Turkey by Esen Graphics
Installations in other countries UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria and etc.
5. Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
6. Certifications
7. FAQ
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP machine factory is in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
Q3: Is there any certification for your CTP machine ?
A: Yes, all our CTP machines have been certified by SGS and CE.
Q4: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q5: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
