Automatic Thermal CTP Machine With Integrated Punch System

1 set
USD 34000/SET
Automatic Thermal CTP Machine With Integrated Punch System
Features Gallery Product Description Request A Quote
Features: With Inline Punch, Without Autoloader
Model: T400Q
Speed: 20/25/30 PPH
Max. Size: 800mm*660mm
Applicated Plate: Thermal CTP Plate
Laser Channels: 24/32/48
High Light:

Integrated Punch Thermal CTP Machine


Automatic CTP Printing Machine


Thermal Automatic CTP Plate Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: Ecoographix
Certification: ISO9000, ISO20001, CE
Model Number: T400Q
Payment & Shipping Terms
Packaging Details: Wooden case with standard protective layers
Supply Ability: 300 SET PER YEAR
Product Description

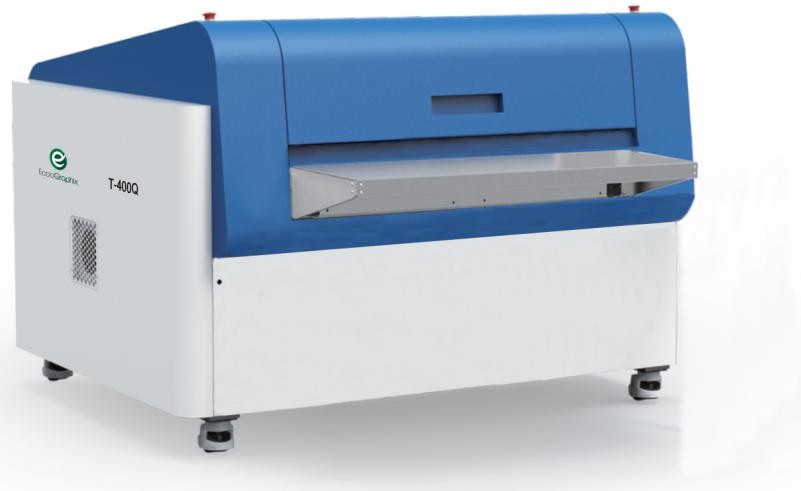

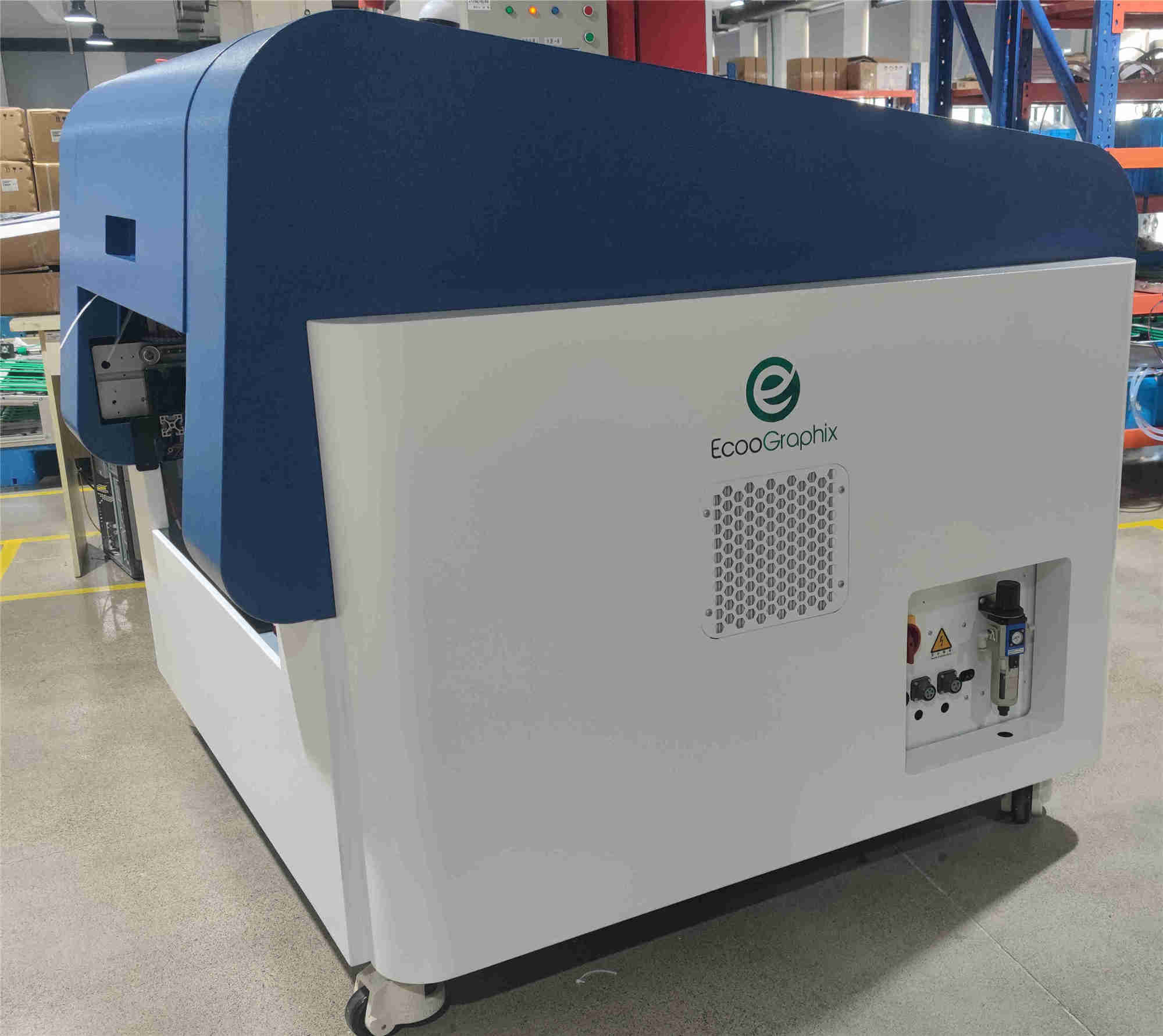

Automatic Thermal CTP Machine With Integrated Punch System 0

Different from our T400QV series, this T400Q is more afforable. It is a manual 4 UPS thermal CTP machine, with integrated punching system but without autoloaders. It requres manual plate feeding and plate offloading.


1. Manual loading, manual offloading, without autoloader
2. with integrated plate punch system
This model is for thermal CTP plate imageing and has 3 speed for customer option. It works with 4 ups printing machine. It is manual loading. If customer want a highly automatic CTP with autoloader and 256 laser valve, you can consider our ECOO T*400QV series. Below is a comparison for your reference.



Model T-400QF T-400QS T-400QE
Exposing Method External Drum
Imaging System 48-channel 32-channel 24-channel
  Discrete 830nm laser diode
Throughput 30PPH 25PPH 18PPH
  800 x 660mm, 2400dpi
Plate Sizes Max.800mm x 660mm
Min.235mm x 335mm
Media Type thermal CTP plate
Plate Thickness 0.15mm to 0.30mm
Resolution Standard: 2400 dpi or 1200 dpi (Optional)
Repeatability 0.01mm
Interface Optical Fiber(Fiber-way)
Plate Loading Automatic or Manual
Net Weight 1100kg
Machine Size
Power Supply single phase:220AC,+ 6%,- 10%, power Consumption:4KW
Environment recommended:21-25ºC, Max.18-26ºC, humidity:40-70%



1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates,inks, blankets, postpress Packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers),positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
