25pph Preprinting Full-Automatic Online Thermal CTP Plate Making Machine
●○●○ Characteristics

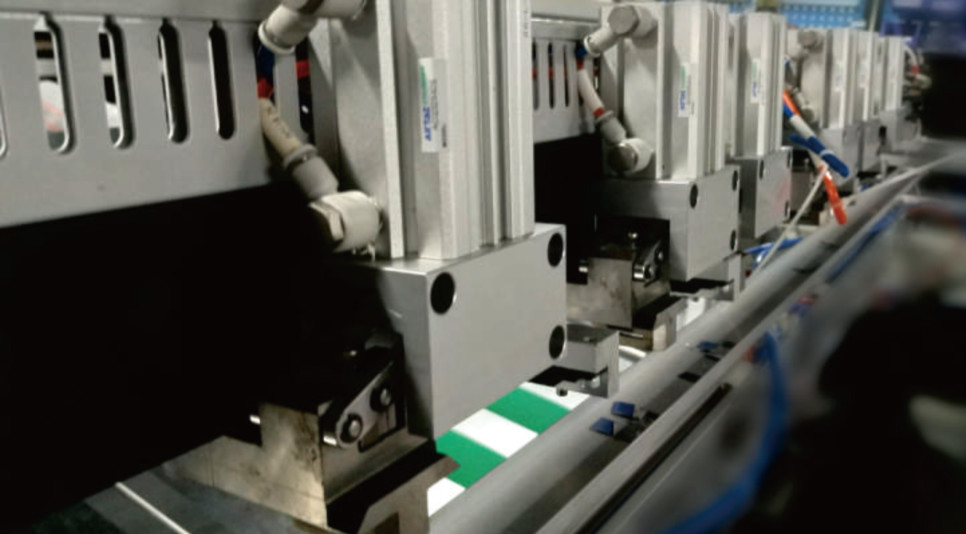

Full-automatic plate making with Inline punch option
Equipped with automatic plate loading and unloading, automatic feeding and automatic punching function(as an option), it can work continuously without interruption to maximize the performance.
Linear motor
In addition to high acceleration, linear motor drive offers extremely stable operation and high positioning accuracy.
Motor direct drive drum
The application of direct motor driving drum technology makes start-up time accelerated and greatly improves production efficiency.
●○●○ Specifications

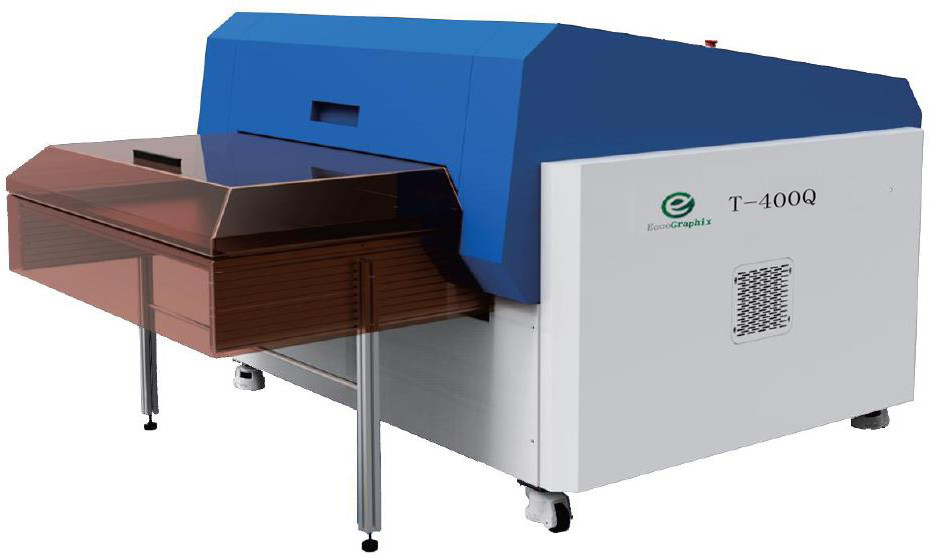

| T-400 QS Machine |
| Model |
T-400QS |
| Exposing Method |
External Drum |
| Imaging System |
825nm laser |
|
Throughput
|
25plates/hour |
| 800 x 660mm, 2400dpi, Plate sensitivity 120mj/cm² |
| Plate Sizes |
Max. 800mm x 660mm
Min. 300mm x 300mm |
| Plate Thickness |
0.15mm, 0.30mm |
| Resolution |
Standard: 2400 dpi or 1200 dpi |
| Repeatability |
0.01mm |
| Interface |
Optical Fiber(Fiber-way) |
| Plate Loading |
Standard: Single cassette autoloader with manual plate insert function |
| Inline Punching System |
Optional: Internal punching (maximum four sets of plate holes) |
Machine Size
(WxLxH)mm |
1450 x 1950 x 1290 (additional 600mm length for conveyor to wash unit) |
| Power Supply |
CTP(Single phase: 220V, Max. power(Peak Value): 4KW)
Simplified Autoloader(Single phase: 220V; Max. power(Peak Value): 900W)
Multi-cassette Autoloader(Single phase: 220V; Max. power(Peak Value): 1100W)
|
Operation
Environment |
Recommended: 21-25℃
Allowable Temperature: 15-30℃
Relative Humidity: 40-70%
|
Size and footprint (Note: A Conveyor with length of 600mm included, not showing in the below graph)
●○●○ Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
●○●○ Certificates
●○●○ FAQ
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP machine factory is in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
Q3: Is there any certification for your CTP machine ?
A: Yes, all our CTP machines have been certified by SGS and CE.
Q4: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q5: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
