Newspaper CTP Printing Plates 0.15mm Gauge Thermal Positive CTP Plate

1000 Square Meters
MOQ
Negotiable
Price

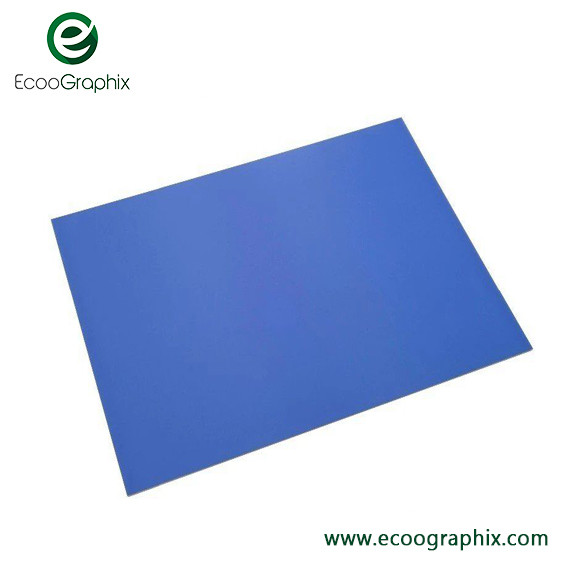

Newspaper CTP Printing Plates 0.15mm Gauge Thermal Positive CTP Plate
Features Gallery Product Description Request A Quote
Features
Specifications
Run Length: 150,000 Impressions Unbaked; 1,000,000 Impressions Baked; Baking Recommended When Use Of UV Ink
Resolution: 1%- 99% @ 200 Lpi Or 10 Micron Stochastic (depend On Capability Of Imaging Device)
Exposure Energy Required: 110-130 Mj/cm2 (depend On Imager Type, Configuration And Resolution)
Substrate: Electrochemically Grained And Anodized Lithographic Aluminum
Gauge: 0.15mm-0.40mm
Plate: No Preheat Required, Positive Working, Thermal Digital Plate
Application: Commercial, Newspaper And Packaging Print Applications
High Light:

Commercial Newspaper CTP Printing Plates

,

0.15mm Gauge Positive CTP Plate

,

780nm Spectral Positive CTP Plate

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-EX
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 25 Days
Payment Terms: L/C, T/T
Supply Ability: 15,000,000 Sqm Per Year
Product Description



 Commercial/Newspaper Printing Long Run- length New Thermal Positive CTP Plate










 ►1.  Application



ECOO-EX New Thermal Positive CTP Plate is specifically applied to a variety of commercial printing and newspaper printing, which has properties of clear dot and gradation, quick ink- water balance, long run- length and adaptability and etc. Whether traditional or alcohol dampening, the plate outputs clean, clear and accurate color print.










 ►2.  Technical Specifications



Model ECOO-EX
Plate No preheat required, positive working, thermal digital plate
Application Commercial, newspaper and packaging print applications
Gauge 0.15mm-0.40mm
Substrate Electrochemically grained and anodized lithographic aluminum
Coating Color Blue
Spectral Sensitivity 780 nm- 850 nm
Exposure Energy Required 110-130 mj/cm2(depend on imager type, configuration and resolution)
Resolution

1%- 99% @ 200 lpi or 10 micron stochastic

(depend on capability of imaging device)

Developer

ECOO DV-T series developers

Dynamic supplement 80-120ml/m2,Static supplement 100-120ml/h

Develop Temperature 24±1℃
Develop Time 25±5s
Run Length

150,000 impressions unbaked; 1,000,000 impressions baked;

baking recommended when use of UV ink

Safelight Daylight handling
Shelf Life

18 months, with sealed package.

Stored in a cool and dry environment, away from sunlight

Cost-effective A product with high productivity that extends laser life of image setter










 ►3. Plate Structure



Newspaper CTP Printing Plates 0.15mm Gauge Thermal Positive CTP Plate 0









 4. Work Flow



Newspaper CTP Printing Plates 0.15mm Gauge Thermal Positive CTP Plate 1










 ►5. Producing And Packaging



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



Newspaper CTP Printing Plates 0.15mm Gauge Thermal Positive CTP Plate 2



Newspaper CTP Printing Plates 0.15mm Gauge Thermal Positive CTP Plate 3



Newspaper CTP Printing Plates 0.15mm Gauge Thermal Positive CTP Plate 4



Newspaper CTP Printing Plates 0.15mm Gauge Thermal Positive CTP Plate 5



Newspaper CTP Printing Plates 0.15mm Gauge Thermal Positive CTP Plate 6



Newspaper CTP Printing Plates 0.15mm Gauge Thermal Positive CTP Plate 7



Newspaper CTP Printing Plates 0.15mm Gauge Thermal Positive CTP Plate 8










 ►6. Certificates



Newspaper CTP Printing Plates 0.15mm Gauge Thermal Positive CTP Plate 9



Newspaper CTP Printing Plates 0.15mm Gauge Thermal Positive CTP Plate 10










 ►7. FAQ





 Q1: Can I get the sample ?



A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.







 Q2: What is the cost for the CTP plate sample freight ?



A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.







 Q3: How long can the sample be ready ?



A: It usually takes about 3 days to prepare the sample.







 Q4: Can I visit your factory ?



A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
