Offset CTP Printing Plates Thermal Double Layer Coating Positive Aluminum CTP Plate 0.30mm

1000 sqm
Offset CTP Printing Plates Thermal Double Layer Coating Positive Aluminum CTP Plate 0.30mm
Features Gallery Product Description Request A Quote
Guage: 0.15-0.4mm
Color: Blue
Running Length: 100000 Impression Unbaked
Size: Not Exceeding 1280mm In Width
Resolution: 1-99% @400 Lpi
Energy: 120 MJ/cm2
Plate Size: 1030x800,724x615,510x400
Developer: Kodak Goldstar Premium,Ecoo DV-T
High Light:

double layer coating ctp printing plate


thermal ctp offset printing plates

Basic Infomation
Place of Origin: CHINA
Certification: ISO, CE
Model Number: ECOO-ED
Payment & Shipping Terms
Packaging Details: 50 pieces per carton, 45 cartons in a pallets, with standard and secure package worthy for exporting
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, Western Union, paypal
Supply Ability: 5000000 sqm per year
Product Description

Offset Printing Thermal Double Layer Coating Positive Aluminum CTP Plate 0.30mm


1. Product specification

Model: Ecoo-ED

Our best respond plate products, with durable running length and high cost-effectivity.

No preh

eat, positive working, thermal digital plate with excellent chemical and press durability.

Well worked with mainstream developer and processor in the market.



- Resist UV-ink; workable with both normal ink and UV ink

- Mature product, good stability and wide processing latitude

- Long run length with non-ablative coating

- Being adaptive to most of platesetters, processors and solutions.


General Information
Plate Model ECOO-ED
Plate Type Thermal UV-CTP Plate(Double Layer)
Application High grade commercial and newspaper printing
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy Standard 1050 Alloy
Coating Two-layer system, IR sensitive, positive acting
Gauge 0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width Maximum width 1280 mm
Plate intermix Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates,
Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Run

Ordinary Ink: 100,000 to 200,000 impressions

UV Ink : 50,000 to 100,000 impressions

CTP Plate Making Machine Plate setters Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS
Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter
Screen : PT-R,Creo : Scitex
EcooGraphix Thermal CTP Tseries
Exposure energy 110 - 130 mJ/cm²
Spectral Sensitivity 800-850 nm – Peaks 830nm
Resolution 1-99% at 200 LPI
FM capability 20 micron stochastic
Image color Blue Green to Pale Green











Processor All the kind Brands.
Developer Kodak Gold Star or our own developer
Processing temperature 23°C +/- 2°C
Developing time 25 - 30 sec
Processing Speed 0.80 – 1.20 m/min


Product details and package details

Normally 50 pcs are packed together in a carton with wood surroundings. Cartons in same size are packed in a carton with binding and protective layers.
Application: High grade commercial and newspaper printing.
Storage: stored in a cool and dry environment, away from excessive cold, heat and humidity.

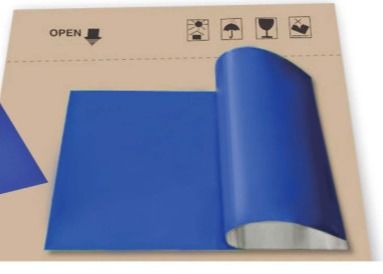

Offset CTP Printing Plates Thermal Double Layer Coating Positive Aluminum CTP Plate 0.30mm 0
About us

EcooGraphix is a leading worldwide prepress and graphics arts supply provider. With our main office in China and top quality factories mostly based in China. We provide top quality as well as cost competitive products including CTP/CTCP equipments, CTP/CTCP plates, and some other graphics arts supply. Furthermore, we treat quality service as our top priority to ensure evey single customer operates seamlessly. We are by far one of largest and top quality and service provide for CTP equipments, plates and service from China. With hundreds of EcooGraphix CTP installations across USA, Canada, Mexico, South America, UK, Europe, Middle East, Turkey and etcs, we have gained a very fine international reputation in the industry.

We offer top quality and competitive products and service on following categories:

1) Thermal CTP and CTCP equipments (all formats)

2) Thermal CTP and CTCP plates (single layer, double layer, and non process plates)

3) Processors

4) Other graphics arts supply

For more details, please check our website;


Our dealership around the world

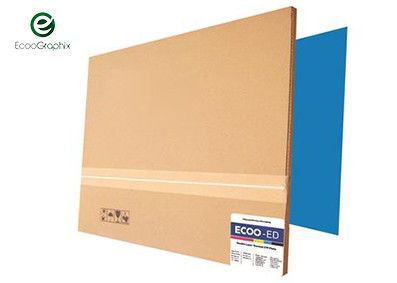

Offset CTP Printing Plates Thermal Double Layer Coating Positive Aluminum CTP Plate 0.30mm 1
