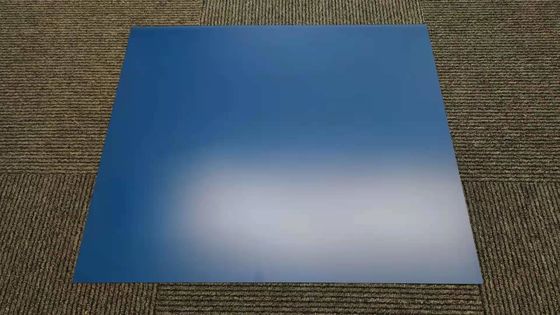

50mj / cm2 Offset UV Ink Printing Positive Double Layer Conventional Ctcp Plate
1. Application
EcooGraphix Positive CTCP Plate(Double Layer) are made for UV-based ink. It is also compatible with ordinary ink. It is used for long-run length high-grade offset commercial and newspaper printing.
2. Characteristic
Features
- Positive writing CTCP (conventional) plate
- Double layers system
- Made with high-grade aluminum from Europe
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 80,000 impressions
- UV Ink up to 50,000 impressions
- Ability to print both AM and FM screening
Advantages
- Resist UV-ink; workable with both normal ink and UV ink
- Mature product, good stability, and wide processing latitude
- Long run length with non-ablative coating
- Being adaptive to most of the platesetters, processors, and solutions.
Benefits
-Very Quick turn around time on press
-Robust coating and consistent reliability
-compatible with most developers
-the premium quality of dot reproduction and long run length
| Model | ECOO-CTCP-D |
| Plate Type |
No preheat, positive working, UV-sensitive digital plate with excellent chemical and press durability; No need for baking for UV ink printing |
| Application | Commercial, newspaper, and package printing application |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Coating | Two-layer system, positive-acting |
| Gauge | 0.15 – 0.40 (mm) |
| Length of run |
Normal Ink: 200,000 impressions unbaked UV Ink: 70,000 impressions unbaked |
| Plate setters | Luscher, Basysprint, Cron, EcooGraphix |
| Exposure energy | 45-65 mj/cm² (depend on imager type, configuration, and resolution) |
| Spectral Sensitivity | 405 nm |
| Resolution |
1-99% at 200 LPI or 20 microns stochastic (depends on the capability of the imaging device) |
| Image color | Light blue |
| Processor | All kinds of brands |
| Developer |
Any brand developer or EcooGraphix own developer Dynamic supplement 80-120ml/m2 Static supplement 100-120ml/h |
| Processing temperature | 23℃+/- 1℃ |
| Developing time | 20-30 sec |
| Processing Speed | 0.80-1.20 m/min |
| Safelight | Handle under yellow safelight |
| Shelf life |
18 months, with the original sealed package, stored in a cool and dry environment, away from sunlight |
| Packaging |
Available in all standard formats, including bulk packaging options, such as APL packaging |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold or heat |
