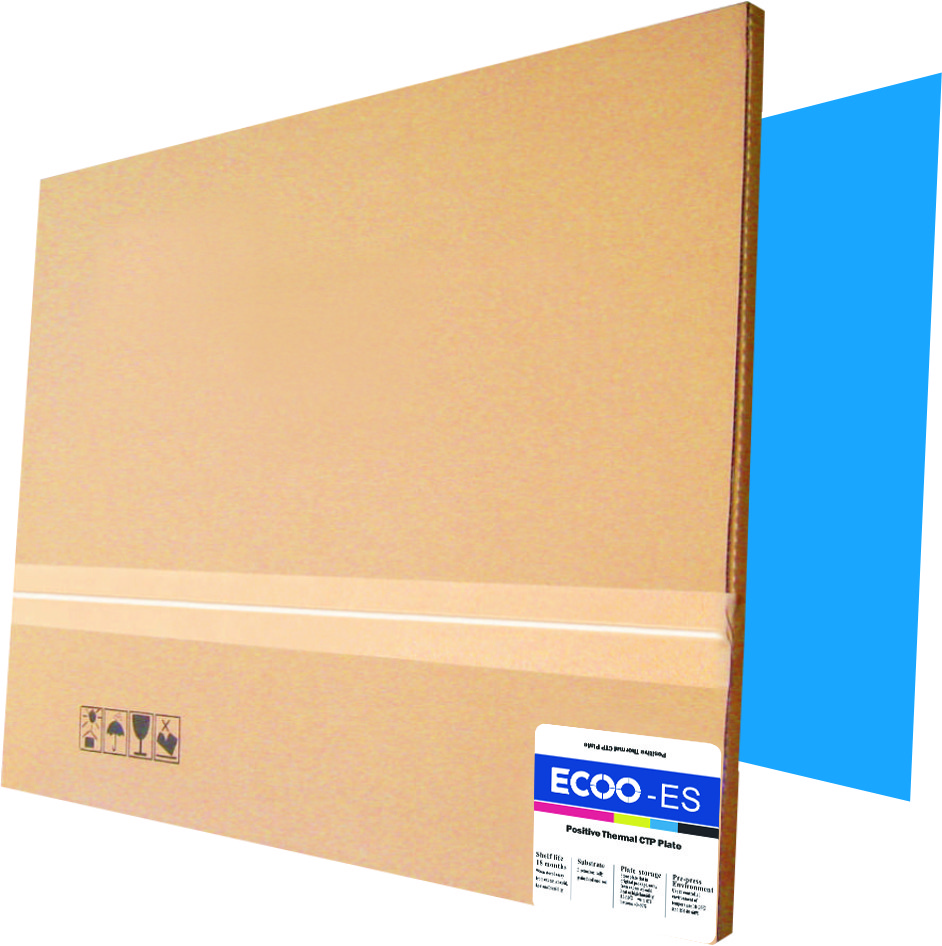

Long Runs Positive Convention CTCP Offset Printing Plate

1,000 Square Meters
MOQ
Negotiable
Price
Long Runs Positive Convention CTCP Offset Printing Plate
Features Gallery Product Description Request A Quote
Features
Specifications
Classification: UV CTP Plate
Gauge: 0.15, 0.20, 0.25, 0.30, 0.40 Mm
Maximum Short Grain Width: Maximum Width 1280 Mm
Application: High Quality Commercial And Newspaper Printing
Run Length With: Unbaked: 80,000 To 100,000 Impressions; Baked: Over 100,000 Impressions
Exposure Energy: 50 - 70 Mj/cm²
Resolution: 2 - 99% @LPI 200
Safelight: Handle Under Yellow Safelight (UV Free)
Spectral Sensitivity: 400 - 430 Nm – UV Laser
Highlight:

Long Runs ctp plate making

,

70 mJ/cm2 offset printing plate

,

Positive Convention offset printing plate

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-CTCP-ES
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 15,000,000 Sqm Per Year
Product Description



 Long Runs Positive Convention CTP/UV-CTP/CTCP Offset Plate
















 1. Application



EcooGraphix CTCP Plate can be used for long runs high grade commercial and newspaper printing. Unique production technology and high quality raw materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.
















 2. Characteristic



1) High quality aluminum and photosensitive coating.



2) Multi layer composite grain structure.



3) Precise half-tone dot reproduction.



4) High development tolerance level and convenient operation.
















 3. Specification



 General Information
Plate Model ECOO-CTCP-ES
Plate Type Positive CTCP plate(single layer)
Application High quality commercial and newspaper printing
Substrate Electro chemically grained and anodized lithographic aluminum
Aluminum Alloy Standard 1050 alloy
Gauge 0.15, 0.20, 0.25, 0.30, 0.40 mm
Maximum Short Grain Width Maximum width 1280 mm
Length Of Run

Unbaked: 80000 to 100,000 impressions

Baked: Over 100000 impressions

 Exposing
Plate Setters Luscher, Basysprint, Cron, EcooGraphix UV series CTCP machine
Exposure Energy 50 - 70 mj/cm²
Spectral Sensitivity 400 - 430 nm - UV Laser
Resolution 2 - 99% @LPI 200
Photosensitive Wave Length 405nm
Coating Blue
 Developing
Processor All the kind brands
Developer Any CTCP plate developer or our own developer
Processing Temperature 23°C +/- 2°C
Developing Time 25 - 30 sec
Processing Speed 0.80 - 1.20 m/min
 Storage And Handling
Safelight Handle under yellow safelight (UV free)
Shelf Life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options, such as APL packaging
Storage And Handling

Stored in a cool and dry environment, away from excessive cold, heat and humidity

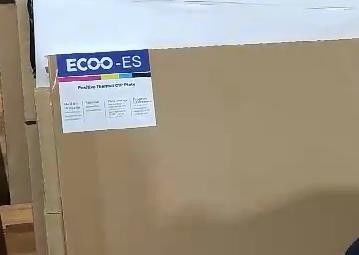

 4. Producing And Packaging



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



Long Runs Positive Convention CTCP Offset Printing Plate 0



Long Runs Positive Convention CTCP Offset Printing Plate 1



Long Runs Positive Convention CTCP Offset Printing Plate 2



Long Runs Positive Convention CTCP Offset Printing Plate 3



Long Runs Positive Convention CTCP Offset Printing Plate 4



Long Runs Positive Convention CTCP Offset Printing Plate 5
















 5. Certificates



Long Runs Positive Convention CTCP Offset Printing Plate 6



Long Runs Positive Convention CTCP Offset Printing Plate 7
















 6. FA





 Q1: Can I get the sample ?

A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.





 Q2: What is the cost for the CTP plate sample freight ?

A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.





 Q3: How long can the sample be ready ?

A: It usually takes about 3 days to prepare the sample.





 Q4: Can I visit your factory ?

A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.





 Q5: How many square meters CTP plates can feed one 20 container ?

A: About 20000-25000SQM.





 Q6: Can I take my own brand and label on the packing ?

A: Yes, we can provide the OEM with the customer’s brand and label.
