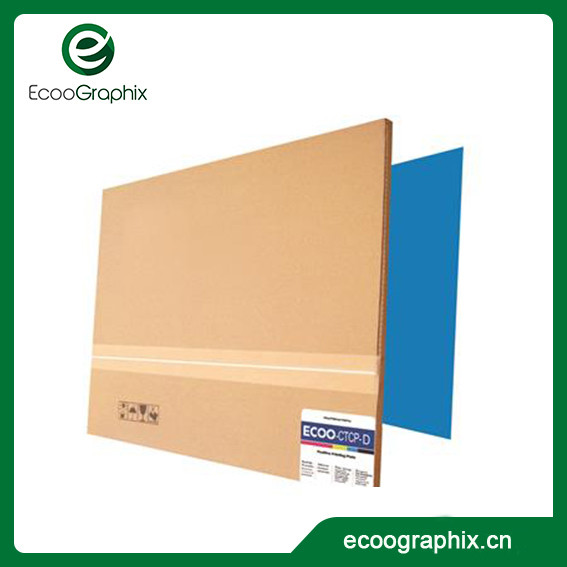

High Sensitivity Positive CTCP Aluminium Offset Printing Plates

1000 Square Meters
MOQ
Negotiable
Price
High Sensitivity Positive CTCP Aluminium Offset Printing Plates
Features Gallery Product Description Request A Quote
Features
Specifications
Run Length: 200,000 Impressions Unbaked; 70,000 Impressions With UV Ink Unbaked; 1,000,000 Impression Baked
Exposure Energy: 50-65uj/cm² (based On Plate Setter And Developing Condition)
Spectral Sensitivity: 405 Nm
Resolution: 1-99% @200 LPI & 20 UFM
Developing Time: 20±3 Sec
Gauge: 0.15, 0.20, 0.25, 0.30, 0.40(mm)
Shelf Life: 12 Months Under Recommended Storage Conditions
Developer: Any Positive Plate Developer Or Our Own Developer
High Light:

405 nm Aluminium Offset Printing Plates

,

Positive aluminium offset printing plates

,

High Sensitivity ctp plate

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-CTCP-D
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 15,000,000 Sqm Per Year
Product Description



 High Sensitivity Positive CTCP Aluminium Offset Printing Plates










 1. Application





EcooGraphix Positive CTCP Plate(Double Layer) are made for UV based ink. It is also compatible with an ordinary ink. It is use for long run length high grade offset commercial and newspaper printing.










 2. Characteristic





Features

- Positive writing CTCP(conventional) plate

- Double layers system

- Made with high grade aluminum from Europe

- Wide adaptability for different plate setter brands

- Non-ablative coating

- Ability to print both AM and FM screening



Advantages

- Resist UV-ink; Workable with both normal ink and UV ink

- Mature product, good stability and wide processing latitude

- Long run length with non-ablative coating

- Being adaptive to most of platesetters, processors and solutions



Benefits

- Very quick turn around time on press

- Robust coating and consistent reliablity

- Compatible with most developers

- Premium quality of dot reproduction and long run length










 3. Specification





Model

ECOO-CTCP-D


Plate Type

No preheat, positive working, UV sensitive plate, double coated, no need baking for UV ink printing


Application

Newspaper printing, Commercial printing and Package printing


Substrate

Electrochemically Grained and Anodized Aluminum


Gauge

0.15, 0.20, 0.25, 0.30, 0.40(mm)


Maximum short grain width

Maximum width 1350 mm


Developer

Any positive plate developer or our own developer


Length of Run

200,000 impressions unbaked;

70,000 impressions with UV ink unbaked;

1,000,000 impression baked.


Plate setters Capability

All the main brands violet CTP in market, laser power no less than 30 mw


Aluminum

Standard 1050 Alloy


Exposure energy

50-65uj/cm² (based on plate setter and developing condition)


Developing time

20±3 sec


Developing Temperature

28±2 ℃


Spectral Sensitivity

405 nm


Resolution

1-99% @200 LPI & 20 uFM


Shelf life

12 months under recommended storage conditions


Storage and handing

Stored in a cool and dry environment, away from excessive cold, heat.


Product highlight

High sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate





Model ECOO-CTCP-D
Plate Type

No preheat, positive working, UV sensitive plate, double coated,

no need baking for UV ink printing

Application Newspaper printing, Commercial printing, and Package printing
Substrate Electrochemically Grained and Anodized Aluminum
Gauge 0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width Maximum width 1350 mm
Developer Any positive plate developer or our own developer
Length of Run

200,000 impressions unbaked;

70,000 impressions with UV ink unbaked;

1,000,000 impression baked.

Plate setters Capability

All the main brands violet CTP in market,

laser power no less than 30 mw

Aluminum Standard 1050 Alloy
Exposure energy 50-65uj/cm² (based on plate setter and developing condition)
Developing time 20±3 sec
Developing Temperature 28±2 ℃
Spectral Sensitivity 405 nm
Resolution 1-99% @200 LPI & 20 uFM
Shelf life 12 months under recommended storage conditions
Storage and handing Stored in a cool and dry environment, away from excessive cold, heat.
Product highlight

High sensitivity; Extend laser life for image setter;

Grain efficiency; Positive CTCP plate









 4. Producing and Packaging





From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



High Sensitivity Positive CTCP Aluminium Offset Printing Plates 0



High Sensitivity Positive CTCP Aluminium Offset Printing Plates 1



High Sensitivity Positive CTCP Aluminium Offset Printing Plates 2



High Sensitivity Positive CTCP Aluminium Offset Printing Plates 3



High Sensitivity Positive CTCP Aluminium Offset Printing Plates 4



High Sensitivity Positive CTCP Aluminium Offset Printing Plates 5



High Sensitivity Positive CTCP Aluminium Offset Printing Plates 6



High Sensitivity Positive CTCP Aluminium Offset Printing Plates 7










 5. FAQ





 Q1: Can I get the sample ?

A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.





 Q2: What is the cost for the CTP plate sample freight ?

A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.





 Q3: How long can the sample be ready ?

A: It usually takes about 3 days to prepare the sample.





 Q4: Can I visit your factory ?

A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
