Semi Automatic A2 Book Cover Carton Thermal Film Laminator with Double-sided Laminating UV Dryer and Hot Knife

1SET
MOQ
Negotiable
Price
Semi Automatic A2 Book Cover Carton Thermal Film Laminator with Double-sided Laminating UV Dryer and Hot Knife
Features Gallery Product Description Request A Quote
Features
Specifications
Net Weight: 4000kg
Max.Paper Size: (L)760×(W)590
Min. Sheet Size: (L)200×(W)240
Machine Size: (L)550×(W)130×(H)180(cm)
Machine Speed: 0~80m/min
Laminating Temperature: 80-110℃
Basic Infomation
Place of Origin: China
Brand Name: ECOOGRAPHIX
Certification: CE,SGS
Model Number: YFMB750
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30DAYS
Payment Terms: L/C,T/T
Supply Ability: 500SETS
Product Description

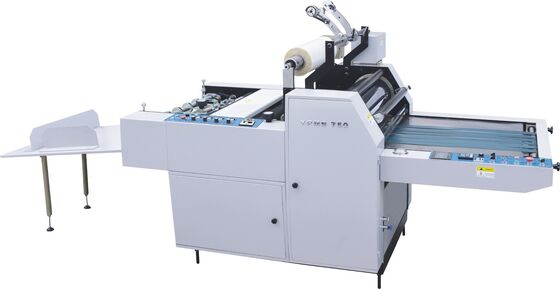

Semi Automatic A2 Book Cover Carton Thermal Film Laminator
Product Overview

The YFMB 750 is a semi-automatic precoating hot laminating machine that utilizes pre-coated film (BOPP/PET with adhesive) for both hot (heated rollers) and cold (pressure only) lamination processes.

Applications

This professional laminating equipment is designed for plastic film application on paper printed materials, widely used in:

  • Packaging materials
  • Paper boxes and cartons
  • Books, magazines, and calendars
  • Handbags and gift boxes
  • Wine packaging paper

Enhances print material quality while providing dust-proof, water-proof, and oil-proof protection. Suitable for printing and laminating enterprises of all scales.

Compatible Films: OPP, PET, PVC, METALLIC, and other precoated or thermal laminating films.

Main Features
  • Double-sided laminating (optional - both sides laminated simultaneously)
  • Dust removal system with surface preheating for enhanced brightness and fit
  • UV dryer for strong fastness, especially for embossing applications (optional)
  • Chain knife for cutting tailless and high-toughness films like PET and aluminum foil (optional)
  • Hot knife for high-speed slitting of tough films (optional)
  • Corona device for improved ink adhesion on laminated surfaces (optional)
  • Static elimination device for paper adhesion control (optional)
  • Embossing system for decorative surface aesthetics (optional)
Technical Specifications
Model YFMB-750
Max. Sheet (W x L) 590 × 760 mm
Min. Sheet (W x L) 200 × 240 mm
Machine Speed 0-80 m/min (one side)
Paper Thickness 100-450 g/m²
Voltage 380V
Paper Feed Height 680 mm
Paper Stack Height 650 mm
Laminating Temperature 80-110 ℃
Power Required 18 kW
Dimensions (L × W × H) 5500 × 1300 × 1800 mm
Net Weight 4000 kg
Semi Automatic A2 Book Cover Carton Thermal Film Laminator YFMB-750
