Automatic Flute Laminating Machine For Corrugated Board

1 set
USD 35000/SET
Automatic Flute Laminating Machine For Corrugated Board
Features Gallery Product Description Request A Quote
Speed: 110m/min
Max Format: 1450mm*1350mm
Min Format: 400mm*400mm
Dimension: 12000mm*2300mm*2950mm
Type: Pre Coating Laminating Machine
Paper Thickness: 150-500 G/Sqm
High Light:

Corrugated Board Flute Laminating Machine


Automatic Flute Laminating Machine


Automatic Flute Laminator 110m/min

Basic Infomation
Place of Origin: CHINA
Brand Name: Ecoographix
Certification: ISO9000, ISO20001, CE
Model Number: ECOO 1450
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T
Supply Ability: 300 SET PER YEAR
Product Description

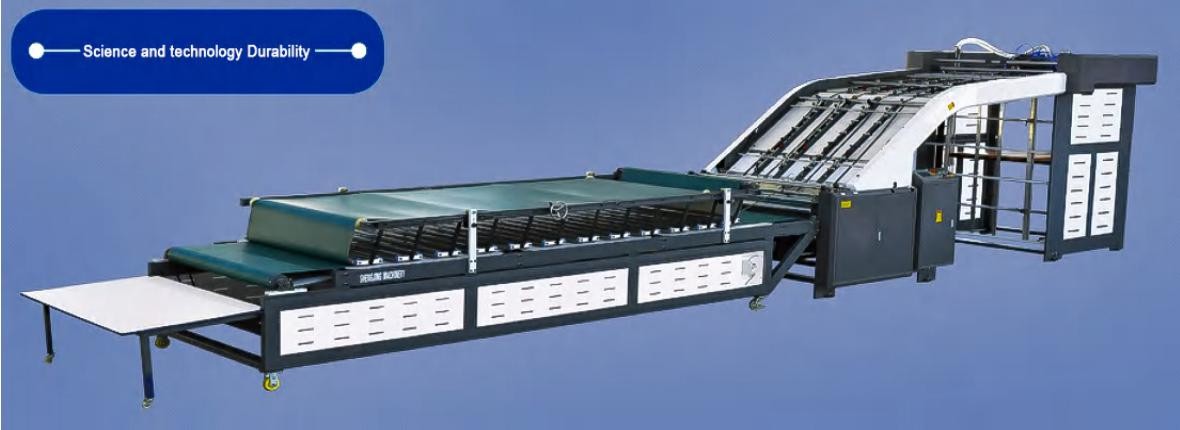

Automatic Flute Laminator For corrugated board

1. Brief introduction

Ecoo 1450 automatic flute laminator mainly consists of six parts: automatic face paper feeding section, face paper conveying section, automatic bottom paper conveying section, cyclic gluing section, positioning and pre-pressing section and pressing section. It suits to laminate the printed paper to the corrugated board( 3ply ), with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company.


Model: Ecoo 1450

2. Product Details

♥ Automatic feeder feeding is equipped with pre-loading device(optional) to reduce downtime and improve work efficiency.
♠ The conveying of the face paper unit adopts scale feeding method. Both thick and thin paper can be conveyed efficiently and quickly with smooth feeding.
♦ The unique design of the tension spring front lay effectively reduces the failure rate of the machine, and combined with intelligent control systems to ensure the positioning and lamination precision(machine precision ±1.5mm). It is more convenient to adjust the front lay.
♣ The gluing roller wheel group adopts medium height and anilox design to ensure the coating is more uniform which makes the lamination more strong,the production cost lower. At the same time, the glue supply system adopts automatic cyclic glue, which greatly reduces the labor intensity.
♥ It adopts frequency speed regulation, PLC centralized control which enables accurate operation.
♠ With the unique drive design, the machine doesn't need to add any parts when the order is changed.

3. Specification

Automatic Flute Laminator
Model Ecoo 1450
Max. Paper size(mm) 1450×1300
Min. Paper size(mm) 400×400
Thickness of face paper(g/m2) 150-500
Bottom paper A.B.C.D.E flute
Front lay laminating precision (mm) ±1.5
Mechanical speed (m/min) 110
Laminating efficiency (sheets/h) 0-6000
Power( kw) 15Kw
Power supply 380V 3P 5W 50Hz
Dimension ( mm L*W*H) 12000×2300×2950
Weight(kg) 5500

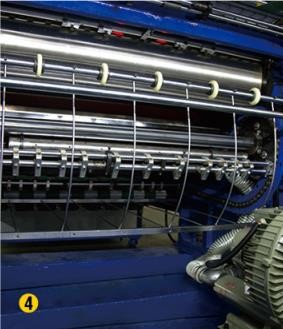

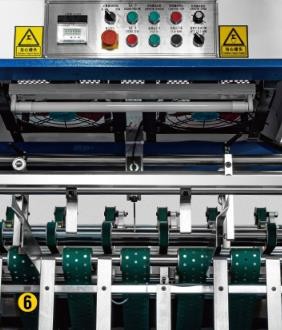

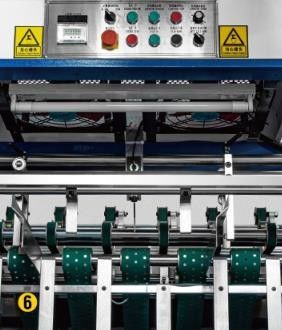

4. Closer look at Machine details


5. Producing and Packing

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

6. Certificate and installation


7. FAQ
1.What are your main products ?

We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.

2.Where is your factory ?

Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.

3. What is your warranty?
Normally 2 years.

4. What is the Lead Time?

Usually 35 days, and we will try our best to meet your demands.

5. Can you also supply the software?

Yes, we offer copyrighted software.

6. What about the Installation and after-sales technician support?

Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
