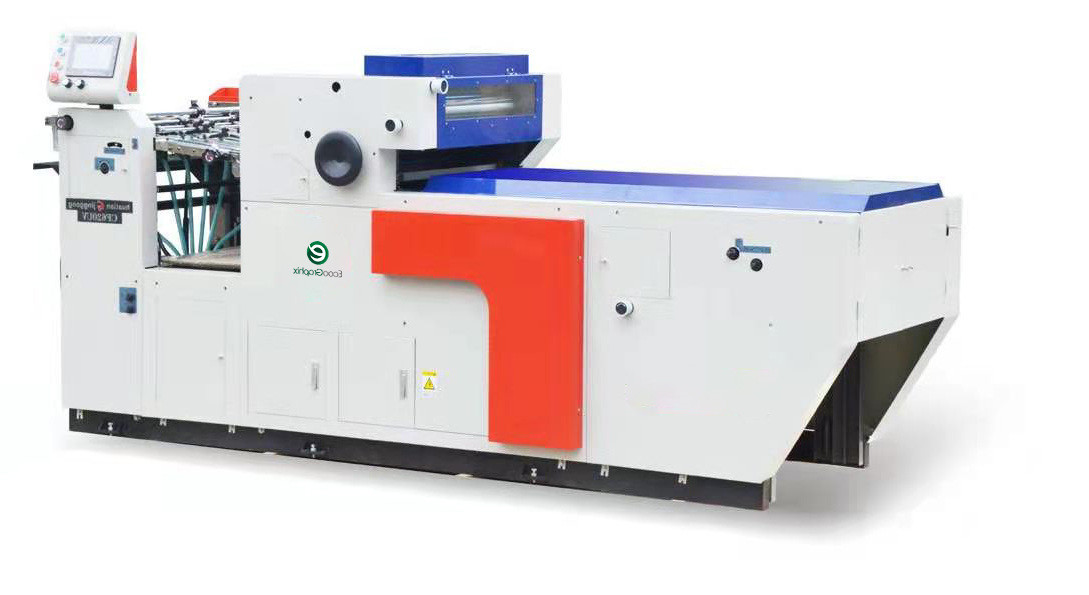

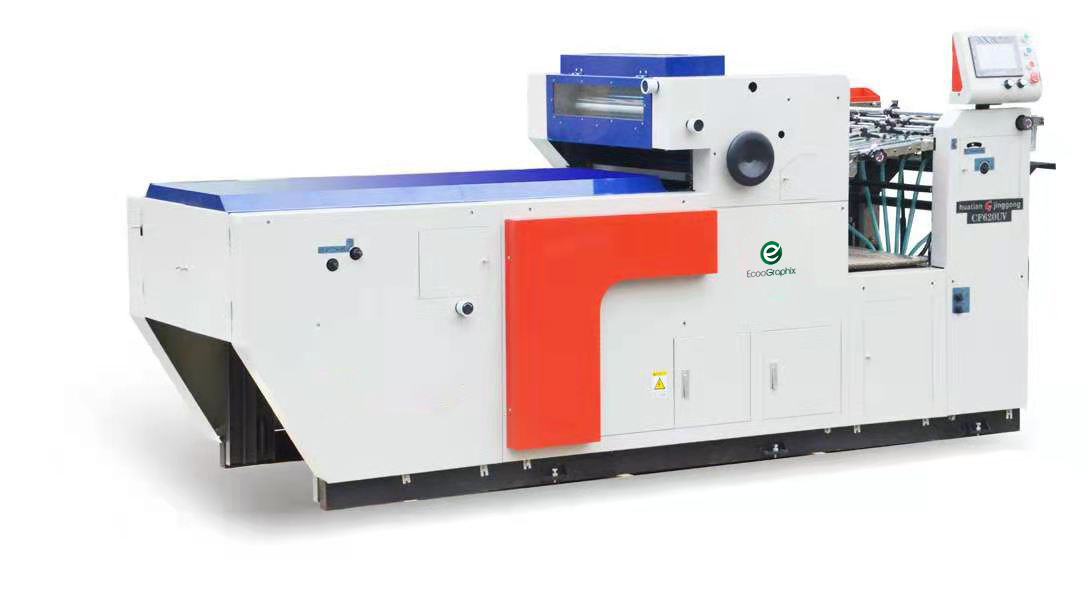

Small Size UV Spot and Coating Varnishing Machine, 620 mm format, both spot and full page varnish coating
Brief introduction
High Speed UV Spot and Overall Coating machine adopts upper-swaygripper- pass -sheet method to enable max speed up 9000 sheets/hour. UV curing system with Teflon conveying belt has characteristic of higher speed, precise orientation and UV curing higher efficiency and lower power consumption. After sheet travelling through UV coater and being transferred directly by teflon belt, grippers cannot be heated by high temperature from UV light, which prevent them from being damaged or deformed to ensure easy maintenance.
Main section and function
1 Feeder
High speed feeder with four sucking and four forwarding suckers can feed sheet smoothly.
2 Sheet Transferring Unit
Upper swing sheet transferring method can transfer sheet smoothly at high speed to pres-sure cylinder exactly.
3 Varnish Supply
Steel roller and rubber roller with metering roller reversing and doctor blade design control by varnish consumption and volume to meet the demand of products and operate easily. (Varnish consumption and volume are determined by LPI of ceramic anilox roller)
4 Transferring Unit
After sheet is transferred from pressure cylinder to gripper, air volume blowing for paper can support and reverse sheet smoothly, which can prevent sheet surface from being scratched.
5 Conveying Unit
Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery.
6 Sheet Delivery
Automatic pneumatic patting sheet controlled by photoelectric detecting sensor make sheet pile fall automatically and collect sheet neatly. Electronic control can take out sheet sample safely and quickly for inspecting.
Technician data
| Model | Ecoo CF-620A |
| Max.sheet size | 620×450mm |
| MIN.sheet size | 260×190mm |
| Sheet weight | 60-350g/m2 |
| Production speed | 5500 sheet/hour |
| Power | 15KW |
| UV lamp | 2pcsx5.6kw |
| Weight | 1200KG |
| Dimension | 2950×1200×1450mm |
Standard equipment
1.Non-stop feeder
2.UV surface oil coating machine
3.Surface oil leveling system
4.Surface oil UV curing system
5.Stepless power regulation UV curing system
6.Paper thickness automatic adjustment
7.Stacker
Processing Flow Chart
1. Paper auto feeding,
2.Brush dust removal device,
3. Surface oil coating,
4.Leveling,
5. UV curing,
6. Cooling fan,
7. Auto delivery.
