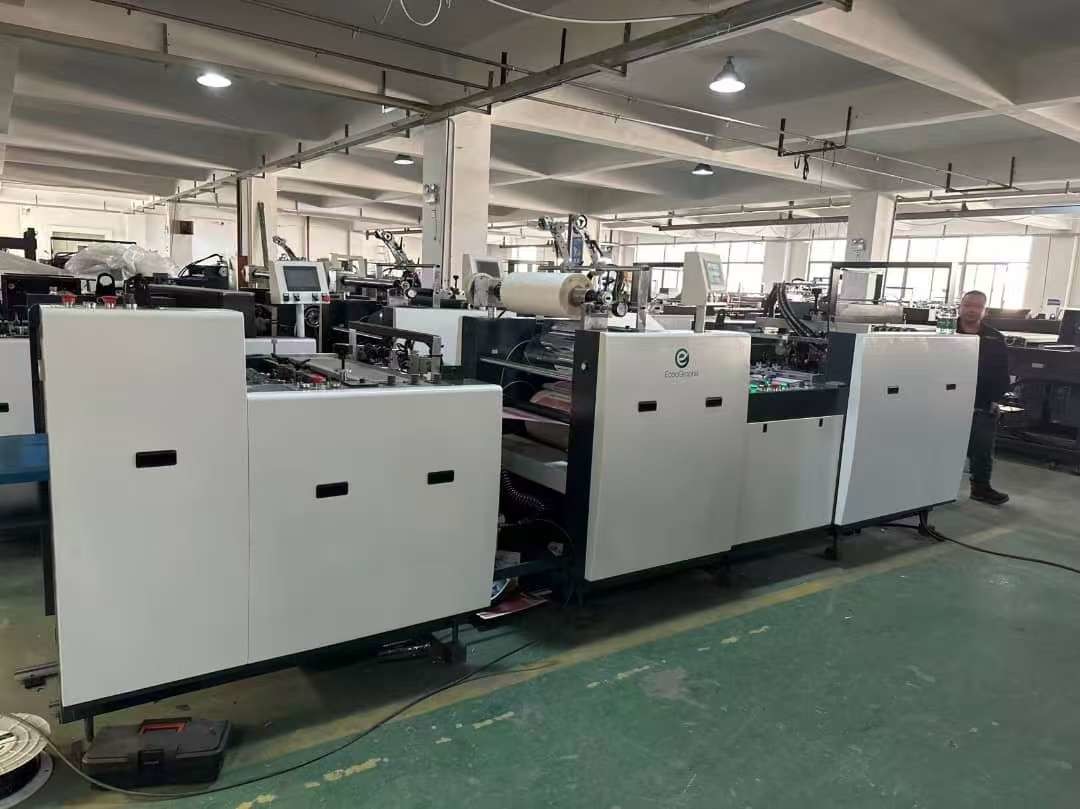

Automatic Flute Laminating Machine for PET PVC Thermal Film Cutting
Focusing on Laminating Machine for 18years,in order to satisfy for customers’ high demands of laminating technology, our engineers team devote years to research and test, and combined with the characteristic of the best laminating technology in Europe, we finally launch the new automatic laminating machine with advanced technology . The outstanding features are with high speed, high quality, saving electricity and environment protection.
* The machine is suitable for using water-based glue, solvent-based glue, and thermal film.
* Cold-water non-curling system: The paper will be non-curling after separated.
* Low cost: Ceramic anilox roller coating, minimize gluing amount to 5g/sqm.
* The heating energy cycle drying system makes the whole machine power consumption about 30kw/h.
* High efficiency:The machine working speed reaches to 70m/min, 10000sheets/h.
Laminating speed depend on paper weight, film thickness and gule material quality.
Subject to change without notice.
Standard Configuration: Selectable Configuration:
1. Automatic Feeder 1.Cold Water Non-curling System
2. Non-stop Feeding Device 2. Hot Knife
3. Pre-loading Device 3.Anti-static System
4. Laminating Host
5. Automatic Sheeter
6. Automatic Delivery
7. Powder Removing Device
Applications: Water-based Glue, Oil-based Glue, Thermal Film, Glueless Laminating Film
|Max. laminating width (mm)||1,080||1,080||1,080|
|Max sheet W×L (mm)||1,080x950||1,080x1300||1,0800x1,450|
|Min sheet W×L (mm)||350x350||350x350||350x350|
|Paper thickness (gsm)||100-500||100-500||100-500|
|Film thickness (µm)||10--25||10--25||10--25|
|Laminating speed (m/min)||10-60||10-60||10-60|
|Machine weight (kgs)||8,500||9,500||10,200|
|Total power (kw)||63-68||63-68||63-68|
