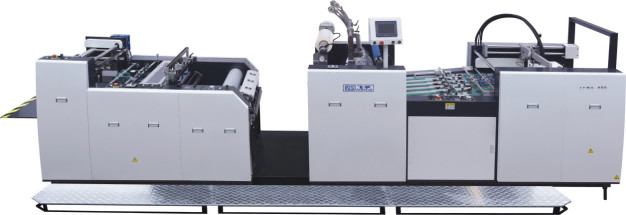

Thermal pre-coated film laminating machine - YFMA 590
Brief introduction
YFMA-590 fully Automatic laminating machine is a professional equipment used for plastic film laminating on the surface of paper printer matter.
Technical data
| Film Laminating Machine | |
| Model | Ecoo YFMA-590 |
| Max. Sheet(W x L) | 590*760mm |
| Min. Sheet(W x L) | 1*240mm |
| Machine Speed | oneside:0~80m/min |
| Paper Thickness | 100~450g/m2 |
| Voltage | 380V |
| Paper feed height | 680mm |
| Paper stack height | 650mm |
| Laminating Temperature | 80-110℃ |
| Power required | 18kw |
| Dimension(L x W x H) | 5500*1300*1800 mm |
| N.W. | 4000kg |
Features
1. Intelligent paper delivery
This machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine.
2. Automatic paper feeding system
Servo-controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine.
3. Sauction device
The suction device guarantees stability and smoothness of paper sending.
4. Front registration
Synchronized servo control and Feida, precise control of cam mechanism to ensure paper stacking
5. Intelligent side registration
Synchronized servo control and Feida, precise control of cam mechanism to ensure paper stacking
6. Anti-curvature device
The machine is equipped with an anti-curl device, which ensures that paper remains flat and smooth during the lamination process.
Application
Widely applicable for laminating in packaging, paper box, books, magazines, calendars, carton, handbags, Gift box, Wine packaging paper improving the printing matter grades, and achieve the purpose of dust-proof, water-proof, oil proof. It’s the best choice for printing and laminating enterprises of all scales.
