Ecoo 8w Paper Box Making Machine Fast Food Carton Erecting Machine

1 SET
MOQ
Negotiable
Price
Ecoo 8w Paper Box Making Machine Fast Food Carton Erecting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Type: Paper Box Making Machine
Max. Production Speed: 200 PCS/Min
Material: Paper Board 200-600gsm, Corrugated Board Paper With Thickness Not Exceed 1.5mm
Blank Length: 100mm-450mm
Blank Width: 100mm-630mm
Height Of Side Flaps: 15mm-250mm
Height Of Flaps+Lid: 50mm-250mm
Total Power: 8w
Highlight:

Fast Food Carton Erecting Machine

,

8w Paper Box Making Machine

,

Ecoo Paper Box Making Machine
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO L-800A
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description

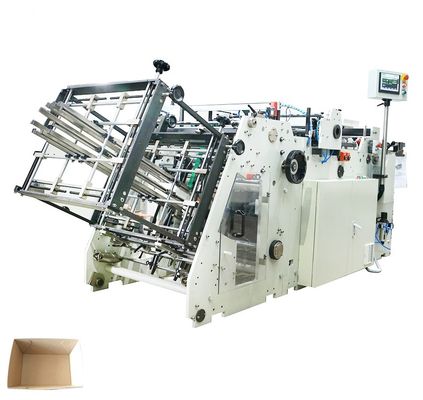

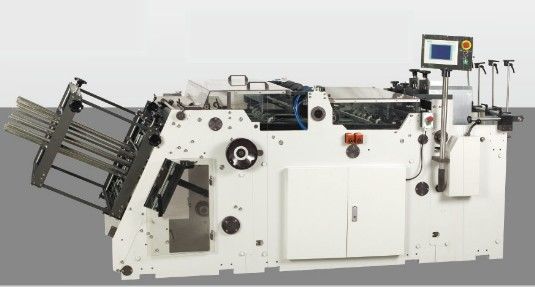

Fast Food Carton Erecting Machine Automatic Paper Box Maker



Introduction



The Ecoo lunch box forming machine is designed according to European industrial standards. Initially developed in China, the products developed in China, the products have achieved CE certification and have been sold to many countries in the world.


With high quality and efficiency, it is an ideal choice for you to produce single PE-coated or double PE-coated paper lunch boxes. Adopting a servo system to control the forming structure.



Specification

​








Ecoo 8w Paper Box Making Machine Fast Food Carton Erecting Machine 0Ecoo 8w Paper Box Making Machine Fast Food Carton Erecting Machine 1





​





Machine type L800-A
Blank length (L) 100mm-450mm
Blank width (B) 100mm-630mm
Height of side flaps (H) 15mm-250mm
Height of side flaps+lid (HI) 50mm-250mm
Conicity 5°-40°
Voltage 380V/50HZ
Covering Area 4.0M*1.2M
The total Power 8KW
Maximum Production Speed 200 pieces/min
Air Pressure 0.6Mpa(Dry and clean compressed air)
Packing 2980mm*1560mm*1320mm, N.W.: 1500KG, G.W.: 1600KG
Materials

Paper Board 200-600gsm;

Corrugated board paper with a thickness not exceeding 1.5MM

​​

Machine type L800-A
Blank length L 100mm-450mm
Blank width B 100mm-630mm
Height of side flaps H 15mm-250mm
Height of side flaps+lid HI 50mm-250mm
Conicity   5°-40°

​

Features



Ecoo 8w Paper Box Making Machine Fast Food Carton Erecting Machine 2



1. L800-A adopts a servo system to control the punching head, so L800-A makes it easier to change different boxes.
2. L800-A is better for making eight corner boxes.

Other Option of Food Carton Erecting Machine
Model L1000 L1350 L1560
Lanes Double lanes Three lanes Four lanes

Lane means an independent production line. 3 lanes of the machine can make 3 types of cartons at the same time within its channels. The lanes are independent.
