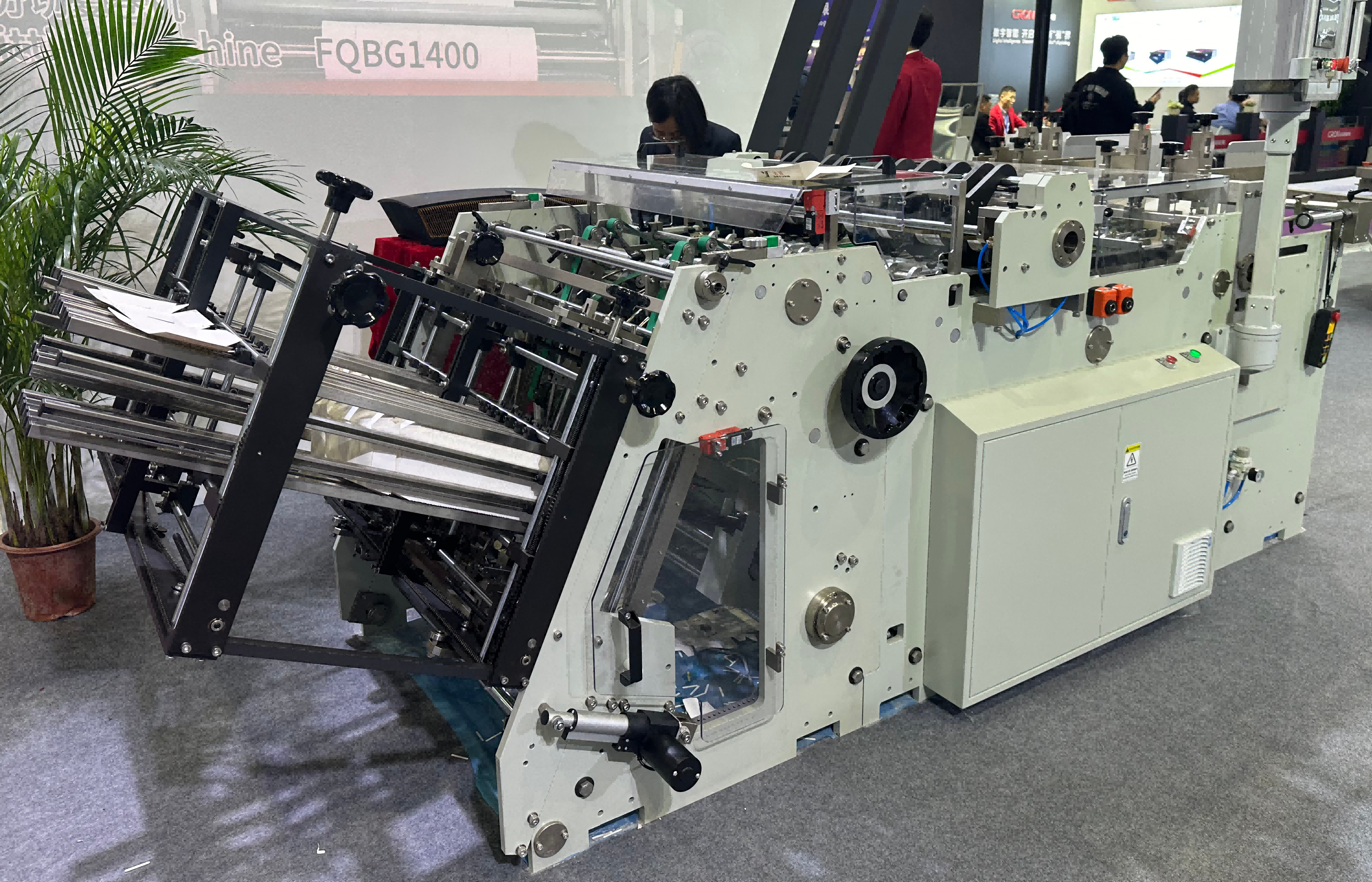

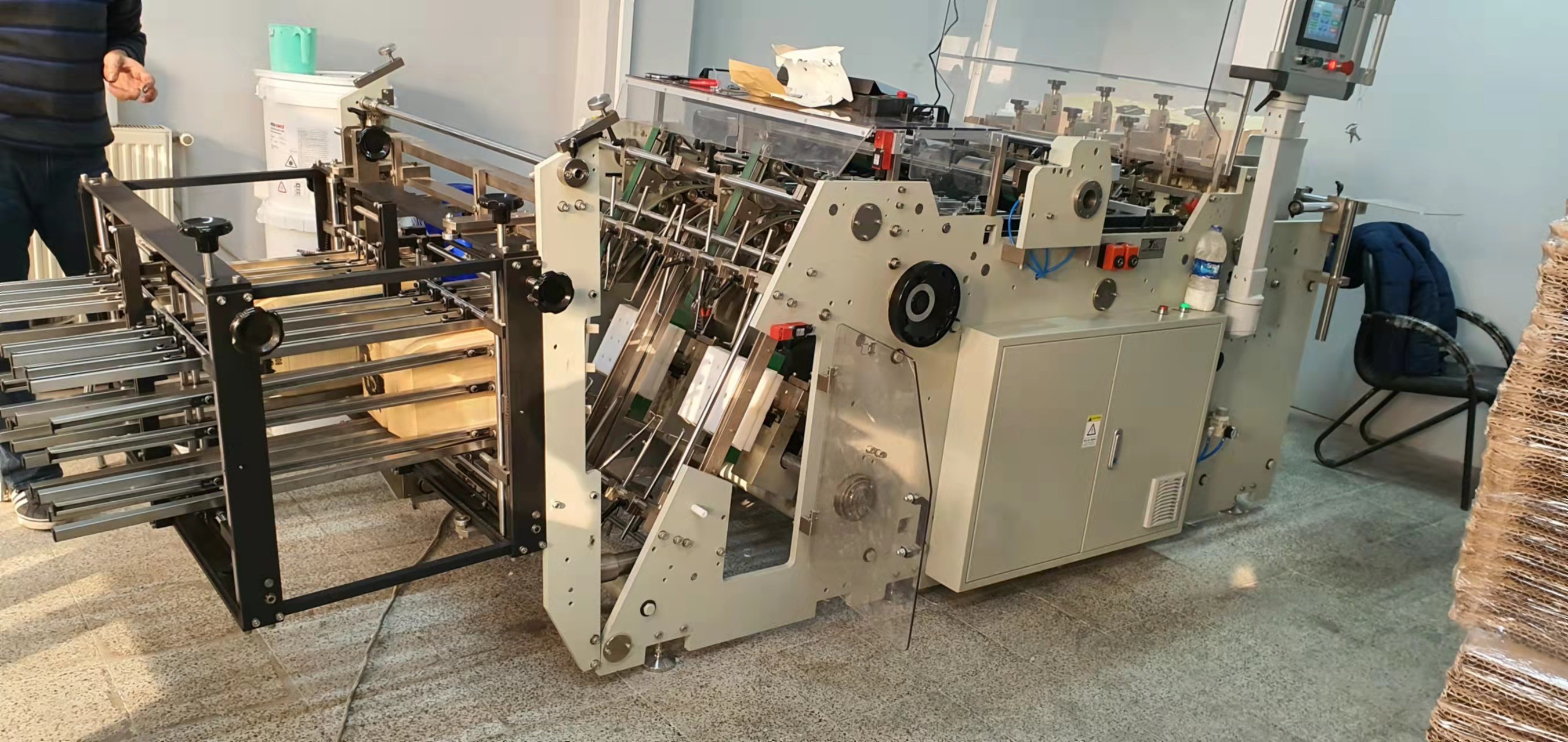

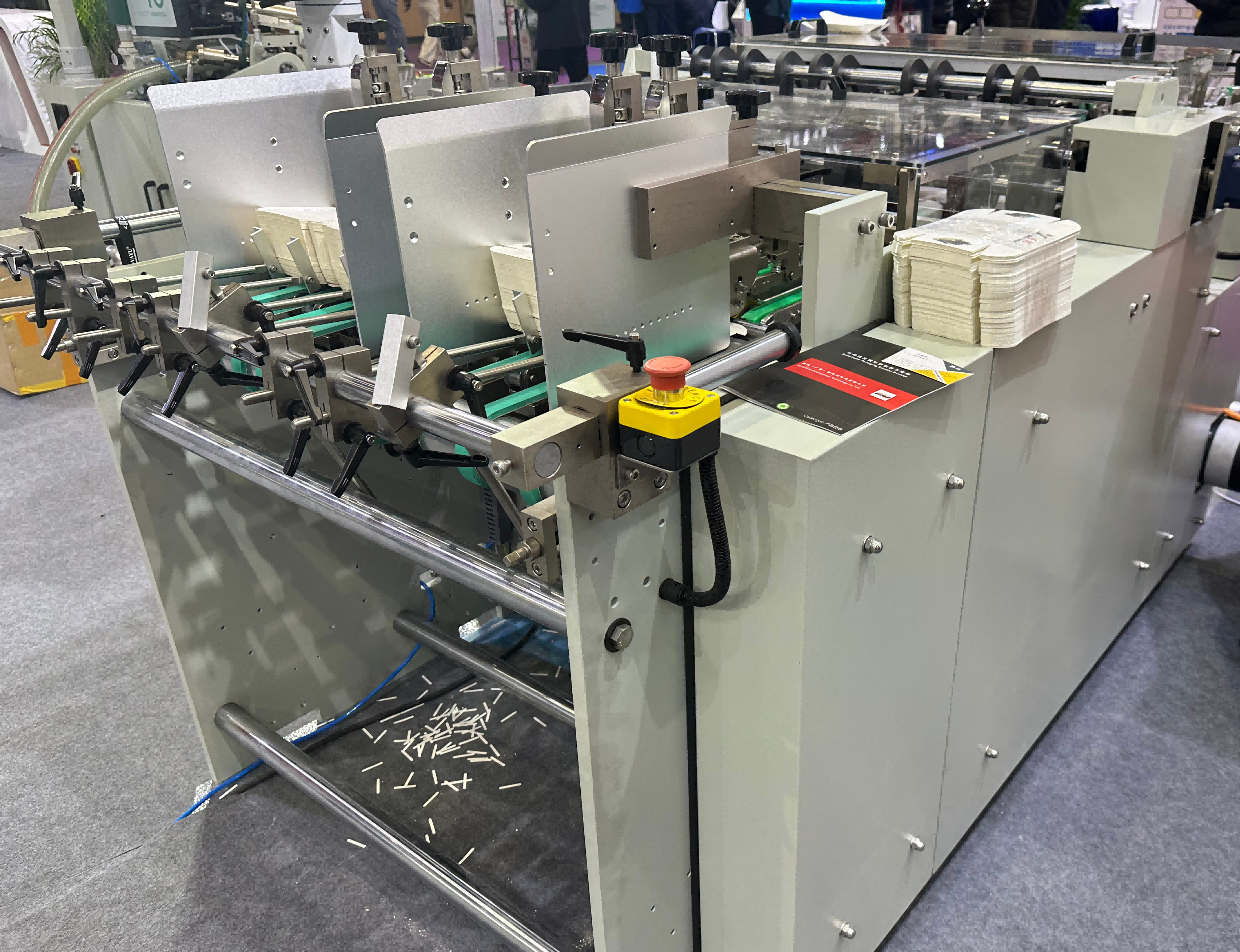

Automatic Carton Erector Hamburger/Burger Box Food Paper Box Making Machine
Model: L800-A
Features of Carton Erecting Machine:
1. The finished products are counted automatically by a counter device.
2. It has low load power, 5KW and 8KW. Speed adjust by inventor brings more accurate.
3. The carton erecting machine uses a PLC encoder, has high automatic function, easy to operate and adjust, and causes less fault. Maintenance is convenient.
4. It uses a servo control system, making it more smooth, accurate, stable and with small vibration.
Technical Specification:
| Voltage | 380V/50HZ |
| Covering Area | 4.0M*1.2M |
| The total Power (L800-A) | 8KW |
| The total Power(L800-C) | 5KW |
| Maximum Production Speed | 200 pcs/min |
| Air Pressure | 0.6Mpa(Dry and clean compressed air) |
| Materials |
Paper Board 200-600gsm; corrugated board paper with thickness not exceed 1.5MM. |
| Machine Model NO | L800-A and L800-C |
| Paper Box Sample | Free |
| Sample time | 1-3 days |
| Production Time | 45 days |
1. Voltage: 380V/50HZ
2. Covering Area: 4.0M*1.2M
3. The total Power: L800-A:8KW; L800-C:5KW
4. Maximum Production Speed: 200 pieces/min
5. Air Pressure: 0.6Mpa(Dry and clean compressed air)
6. Packing: 2980mm* 1560mm* 1320mm, N.W.: 1500KG,G.W.: 1600KG; 1310mm*1170mm*900mm, N.W.: 250KG,GAN.: 290KG
7. Materials: Paper Board 200-600gsm; corrugated board paper with thickness not exceed 1.5MM.
The differences between L800-A and L800-C:
1. L800-A adopts servo system to control the punching head, but L800-C adopts mechanical device to control the punching head. So L800-A is easier to change different box than L800-C.
2. L800-A is better to make eight corners boxes than L800-C.
Other option of Food carton Erecting machine:
| Model | L1000 | L1350 | L1560 |
| Lanes | Double lanes | Three lanes | Four lanes |
Lane means independent production line. A 3 lanes of machine is able to make 3 types of cartons at the same time within its own channesl. The lanes are independent.
Application:
Shipping And Packaging:
| Shipping | By sea, or as your requirement to do | |
| Packaging | By Strong Wooden Case | |
| Packaging Dimensions | Case 1 | Size: 2980mm* 1560mm* 1320mm |
| Net weight: 1500KG | ||
| Gross weight: 1600KG | ||
| Case 2 | Size: 1310mm*1170mm*900mm | |
| Net weight: 250KG | ||
| Gross weight: 290KG | ||
FAQ:
1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.
2. What is your warranty?
Normally 1 years.
3. What is the Lead Time?
Usually 30-45 days, and we will try our best to meet your demands.
4. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
