8kw Corrugated Paper Box Making Machine 400PCS/Min With 100mm Blank

1 SET
MOQ
Negotiable
Price

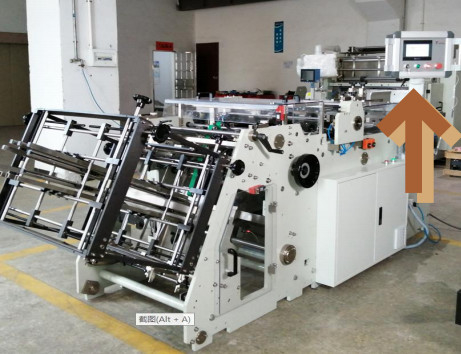

8kw Corrugated Paper Box Making Machine 400PCS/Min With 100mm Blank
Features Gallery Product Description Request A Quote
Features
Specifications
Classification: Paper Box Making Machine
Maximum Production Speed: 400 PCS/Min
Materials: Paper Board; Corrugated Board Paper
Coveringt Area: 4.0m*1.4m
Air Pressure: 0.6MPa (Dry And Clean Compressed Air)
Blank Length (L): 100mm-450mm
Blank Length (B): 100mm-450mm
Warranty: 1 Year Warranty Including Spare Parts
High Light:

8kw Corrugated Paper Box Making Machine

,

Paper Box Making Machine 400PCS/Min

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO L1000 Series
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description



 Corrugated Paper Board Fast Food Cartoning Machine












Introduction




Ecoo lunch box forming machine is designed according to European industrial standard. Initially developed in China, the products developed in China, the products have achieved the CE certification and have been sold to many countries in the world. With high quality and efficiency, it is an ideal choice for you to produce single PE coated or double PE coated paper lunch box. Adopting mechanical device to control the forming structure.












Specification





Machine models
L1000/ 2-A/ 2-B/ 2-C

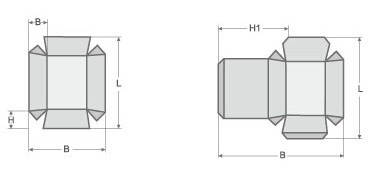

Blank length (L)
100mm-450mm

Blank length (B)
100mm-450mm

Height of side flaps(H)
15mm-260mm

Height of side flaps+lid (HI)
50mm-260mm

Conicity
5°-40°

Voltage
380V/50HZ

Covering Area
4.0M*1.4M

The total Power
8KW

Maximum Production Speed
400 pcs/min

Air Pressure
0.6Mpa(Dry and clean compressed air)

Materials
Paper Board 200-600gsm; Corrugated board paper with thickness not exceed 1.5MM.

The differences between L1000/2-A, L1000/2-B and L1000/2-C
L1000/2-A only can make the same box on the two lanes at the same time.
L1000/2-B can make the different box on the two lanes at the same time.
L1000/2-C adopts mechanic device to control the punching head.

Paper Box Sample
Free

Sample time
1-3 days

Production Time
45 days

Machine models L1000/ 2-A/ 2-B/ 2-C
Blank length (L) 100mm-450mm
Blank length (B) 100mm-450mm
Height of side flaps (H) 15mm-260mm
Height of side flaps+lid (HI) 50mm-260mm
Conicity 5°-40°
Voltage 380V/50HZ
Covering Area 4.0M*1.4M
The total Power 8KW
Maximum Production Speed 400 pcs/min
Air Pressure 0.6Mpa(Dry and clean compressed air)
Materials

Paper Board 200-600gsm;

Corrugated board paper with thickness not exceed 1.5MM.

The differences between L1000/2-A, L1000/2-B and L1000/2-C L1000/2-A only can make the same box on the two lanes at the same time.
L1000/2-B can make the different box on the two lanes at the same time.
L1000/2-C adopts mechanic device to control the punching head.
Paper Box Sample Free
Sample time 1-3 days
Sample time 1-3 days
Production Time 45 days







Details


1 • Strong and precisely machined walls make a strong and stable machine, with low noise running.


2 • Thick and strengthened plastics covers give a safe operation and visible monitor on running.


3 • Adjustable according to glue point.



8kw Corrugated Paper Box Making Machine 400PCS/Min With 100mm Blank 0



4 • Electric box--- Germany Rexroth servo system to control the punching head exactly.

8kw Corrugated Paper Box Making Machine 400PCS/Min With 100mm Blank 1



5 • English Version Touch Screen

8kw Corrugated Paper Box Making Machine 400PCS/Min With 100mm Blank 2



6 • Time of paper feeding is adjusted by cam. Simply operating, reducing failure rate.


7 • Automatic gluing systems controlled by reduce motor from Taiwan. Gluing point is made of sponge.


8 • Every part of forming and collecting system can be adjusted according to the size of mold. The whole collection system can be opened to change mold and install the forming parts conveniently.


9 • It adapts paper tape counting equipment to count product quickly and accurately, and to be readjusted.












Producing And Packaging




From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.


8kw Corrugated Paper Box Making Machine 400PCS/Min With 100mm Blank 3

8kw Corrugated Paper Box Making Machine 400PCS/Min With 100mm Blank 4

8kw Corrugated Paper Box Making Machine 400PCS/Min With 100mm Blank 5

8kw Corrugated Paper Box Making Machine 400PCS/Min With 100mm Blank 6







Certifications



8kw Corrugated Paper Box Making Machine 400PCS/Min With 100mm Blank 7



8kw Corrugated Paper Box Making Machine 400PCS/Min With 100mm Blank 8








FAQ


 1. What's your advantage ? Why we choose you ?

A: We are a professional and leading carton erecting and forming machine manufacturer and supplier based in China for about 30 years.

We provide a wide array of paper processing machines, including Paper Erecting and Folding machine, Paper Box Forming machine, Ice Cream Paper Cone machine, Automatic Paper Punching machine and so on. Due to the high quality, stable performance and long service life, our products are sought after by customers in Canada, Spain, Chile, Venezuela, Greece, Honduras, Malaysia, the Philippines, Russia, etc.



 2. Warranty of the machine ?

A: One year. During this period, any parts damaged caused by machineself, we will repair/replace the spare parts for free. After one year, the spare parts will be supplied to buyers with charge. The machine service is all around the machine life.



 3. What is the service ?

A: 7 days 24 hours on line service, engineer oversea service is also available if necessary.



 4. What is the delivery terms ?

A: FOB China, CIF destination port under LCL and FCL is available.



 5. What is the delivery time ?

A: 45 working days after the confirmation of the order.
