Development on Press Thermal Processless Plate Negative CTP Plate
Application

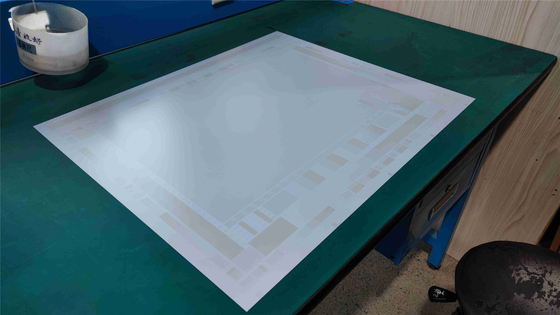

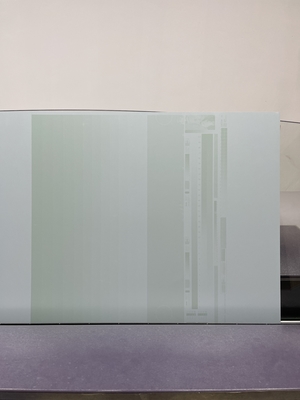

EcooGraphix ECOO-G is a new, environmentally friendly, Development On Press CTP plate.
It can be run directly on a printing press after imaging, without a need for chemical processing.
Recommended application to press procedures of ECOO-G:
1. Clean all the inks on the blanket;
2. Start the press machine, apply the water roller, run 30-40 seconds;
3. Apply the ink rollers 20-30 seconds;
4. Apply the paper and start print.
Remark: If steps 2 and 3 are longer, the paper will be wasted less.
Specification
| Model |
ECOO-G |
| Plate Type |
Thermal-negative type |
| Application |
High-grade commercial and newspaper printing |
| Substrate |
Electrolyte graining and Anodized AL substrate |
| Thickness |
0.15mm/ 0.30mm |
| Maximum short grain width |
Maximum width 1280 mm |
| Spectrum scope |
800-850 nm |
| Photosensitive wavelength |
830 nm |
| Platesetter |
Various dominant thermal platesetters in the market |
| Coating color |
Grey |
| Low-energy imaging |
130-150 MJ/cm² |
| The period of latent image stabilization |
≤ 7 days |
| Recommended screen method |
1-99% @200 LPI AM or 20μm FM or mixture |
| The paper number of start-up |
< 50 sheets |
| Safety light |
4 hours under yellow light; 1 hour under fluorescent lamp;
Direct exposure under natural light is safe but not recommended. |
| Processing |
Without processing, directly on the press |
| Run Length |
100,000 impressions;
Actual run length depends on printing conditions |
| Shelf life |
12 months under recommended condition |
| Transportation |
Packed in seal and stored using prevention
from light, moisture, overheating, and high humidity |
| Storage |
Recommended condition: 18ºC-24ºC, 40%-50% RH. |

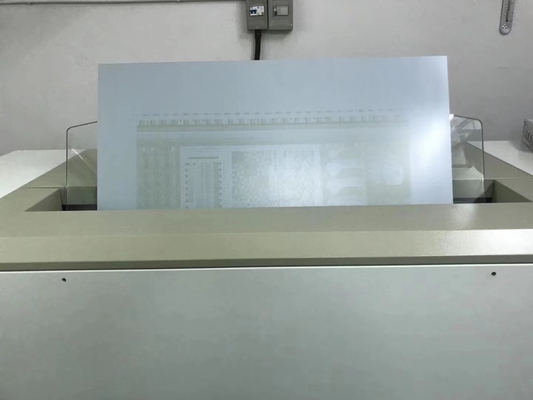

Applied parameters in the Imaging device
CTP model
Data |
Kodak
trendsetters |
LOTTEM 400(TH1.7) |
MAGNUS 400 |
Screen 8600S |
| Laser power |
15-17W |
300-320mw |
19.5-21.5W |
80-90 % |
| Drum speed |
250-300rpm |
850-900rpm |
400-450rpm |
800-900rpm |
| Resolution |
Customized |
Customized |
Customized |
Customized |
| Parameter that needs set up |
Focus/ Zoom |
Focus/ Zoom |
Focus/ Zoom |
Focus/ Zoom |
*Note: Higher exposure energy will make the image contrast clear, and benefit the plate run length;
while over-high/low exposure energy will affect the image quality negatively.
ECOO-G Processless CTP plate Video: https://youtu.be/LLqNaY1ivcI
Characteristics
ECOO-G is a double layer, and the emulsion layer will not dissolve in water,
so it will not integrate into the fountain solution;
while the protection layer is well water-soluble, and it will be easily dissolved into the fountain solution.
Customer Feedback
Difference Between Agfa Azura TS and ECOO-G Processless CTP Plates
Compared with Agfa Azura TS (a non-chemical plate), ECOO-G offers a more efficient and truly chemistry-free solution.
Azura TS plates still require a wash unit after imaging. Although the solution used in the unit is low in chemical content (similar to a mild detergent), this extra step is necessary to clean the plate surface before printing.
In contrast, our ECOO-G plates are 100% processless. After CTP imaging, the plate can be directly mounted onto the printing press—no wash unit, no rinsing, no additional equipment, and zero chemical handling.
This not only saves equipment and labor costs, but also shortens turnaround time and reduces environmental impact.
ECOO-G is a truly clean, efficient, and cost-effective solution for modern printing.
