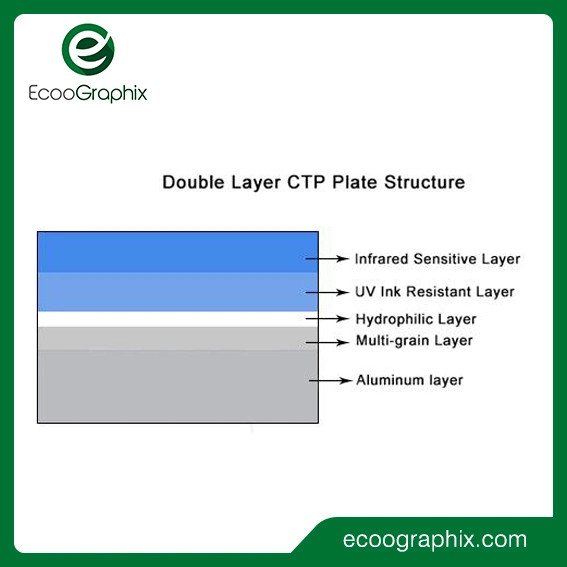

Double Layer, UV Ink capable, Solvent Resistent
| Model | ECOO-TSR |
| Plate Type | Positive Thermal Digital Plate |
| Application | Commercial, newspaper and packaging print |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Gauge | 0.15, 0.20, 0.24, 0.30, 0.40(mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Coating | Blue |
| Length of Run |
Unbaked: 400,000 impressions UV Ink : 100,000 impressions |
| Plate setters | All thermal CTP machine |
| Aluminum | Standard 1050 Alloy |
| Exposure energy | 120 – 150 mj/ m² |
| Developing time | 25-30 sec |
| Spectral Sensitivity | 780 – 850 nm |
| Resolution | 1-99% @ 400LPI |
| Developer | Ecoo DV-T Series Developer |
| Processing temperature | 23℃+/-2℃ |
| Processing Speed | 0.80 – 1.20 m/min |
| safelight | Daylight handling |
| Shelf life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage and handing | Stored in a cool and dry environment, away from excessive cold, heat and humidity |
EcooGraphix offers a wide range of printing plates for overseas markets.
1 ECOO-G Thermal Chemistry-free CTP Plate, negative-working, no process required
3 ECOO-ES Thermal CTP Plate, single layer, positive-working
4 ECOO-ED Thermal CTP plate, double layer, positive-working
5 ECOO-TSR Thermal CTP plate, double layer, positive-working
6 ECOO-CTCP-ES Positive CTCP Plate, single layer
7 ECOO-CTCP-D Positive UV-CTCP Plate, doule layer
FAQ
1. Lead Time: Normally 30 days upon receipt of deposit.
2. Payment Term: 30% T/T as deposit, and 70% T/T before shipping.
3. Packaing Term: Cartons with ECOO Label, or as customer's requirement.
4. Shipment Term: FOB Ningbo/ Shanghai, CIF, and DDU.
5. Free Samples: Usually, 10pcs plates can be sent freely to customer for testing.
