Name: 800-850 nm ECOO-G Thermal CTP Plate with 100,000 Impressions Run Length and 130-150 mj/m² Low-energy Imaging for Processless Printing
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-G
Price: 3.50 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Application: Commercial Printing

Long Impression: 100,000 Impressions Actual Run Length Depends On Printing Conditions

100,000 Impressions Actual Run Length Depends On Printing Conditions: 130-150 Mj/ M²

Spectral Sensitivity: 800-850 Nm

Image Color: Blue

Highlight:

800-850 nm Spectral Sensitivity Thermal CTP Plate

100 000 Impressions Run Length Processless Printing Plate

130-150 mj/m² Low-energy Imaging Laser-Sensitive Plate

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO,CE

Model Number: ECOO-G

Payment & Shipping Terms

Packaging Details: Standard Exporting Plywood Boxes

Delivery Time: 30 DAYS

Payment Terms: T/T

Supply Ability: 200, 000 Square Meter/Year

Gallery

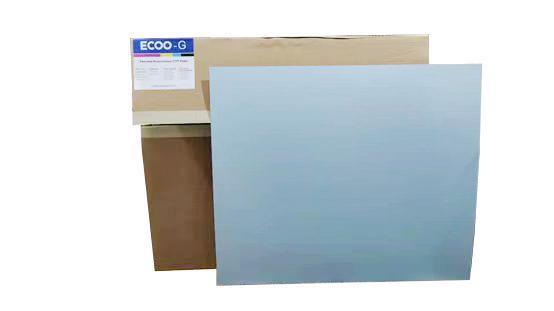

800-850 nm ECOO-G Thermal CTP Plate with 100,000 Impressions Run Length and 130-150 mj/m² Low-energy Imaging for Processless Printing

Product Description

800-850 nm ECOO-G Thermal Processless Laser-Sensitive Plate

ECOO-G Thermal Processless Laser-Sensitive Plate is a non-ablation thermal-negative type plate designed for high-grade commercial and newspaper printing applications.

Product Specifications

Model	ECOO-G
Plate Type	Non-ablation thermal-negative type
Application	High grade commercial and newspaper printing
Substrate	Electrolyte graining and Anodized AL substrate
Thickness	0.15mm / 0.30mm
Maximum Short Grain Width	Maximum width 1280 mm
Spectrum Scope	800-850 nm
Photosensitive Wave Length	830 nm
Platesetter	Various dominant thermal platesetters in the market
Image Color	Blue
Low-energy Imaging	130-150 mj/m²
Latent Image Stabilization Period	≤7 days
Recommended Screen Method	1-99 @200 Lpi AM / 20u FM and mixture
Start-up Paper Number	<50 sheets
Safety Light	1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light
Processing	Without processing, directly on press
Run Length	100,000 impressions (Actual run length depends on printing conditions)
Shelf Life	12 months under recommended conditions
Transportation	Packed in seal and stored by means of preventing from light/moisture, over heat and high humidity
Storage	Recommended condition: 18℃-24℃, 40%-50% RH

Complete Product Range

ECOO-G Thermal Chemistry-free CTP Plate, negative-working, no process required
ECOO-CTCP CTCP Plate
ECOO-ES Thermal CTP Plate, single layer, positive-working
ECOO-ED Thermal CTP plate, double layer, positive-working
ECOO-TSR Thermal CTP plate, double layer, positive-working
ECOO-CTCP-ES Positive CTCP Plate, single layer
ECOO-CTCP-D Positive UV-CTCP Plate, double layer

Ordering & Support Information

Lead Time	30 calendar days from deposit confirmation
Payment Term	30% deposit via T/T, 70% balance before shipment
Packaging Term	Export-grade cartons with ECOO labels, custom packaging available
Shipment Term	FOB, CIF, or DDU options available
Free Samples	Up to 10 sample plates available for testing
