Home /Products/Paper Box Making Machine/L-800A Hamburger Box Cartoning Machine For Food Paper Case

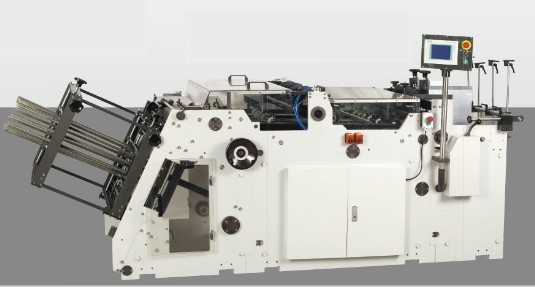

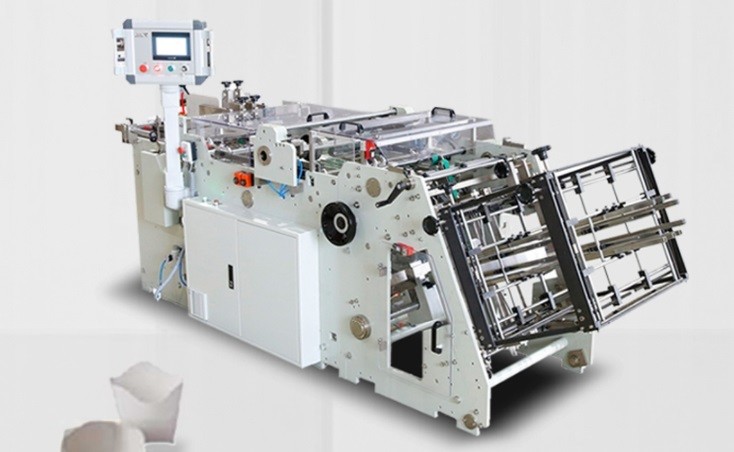

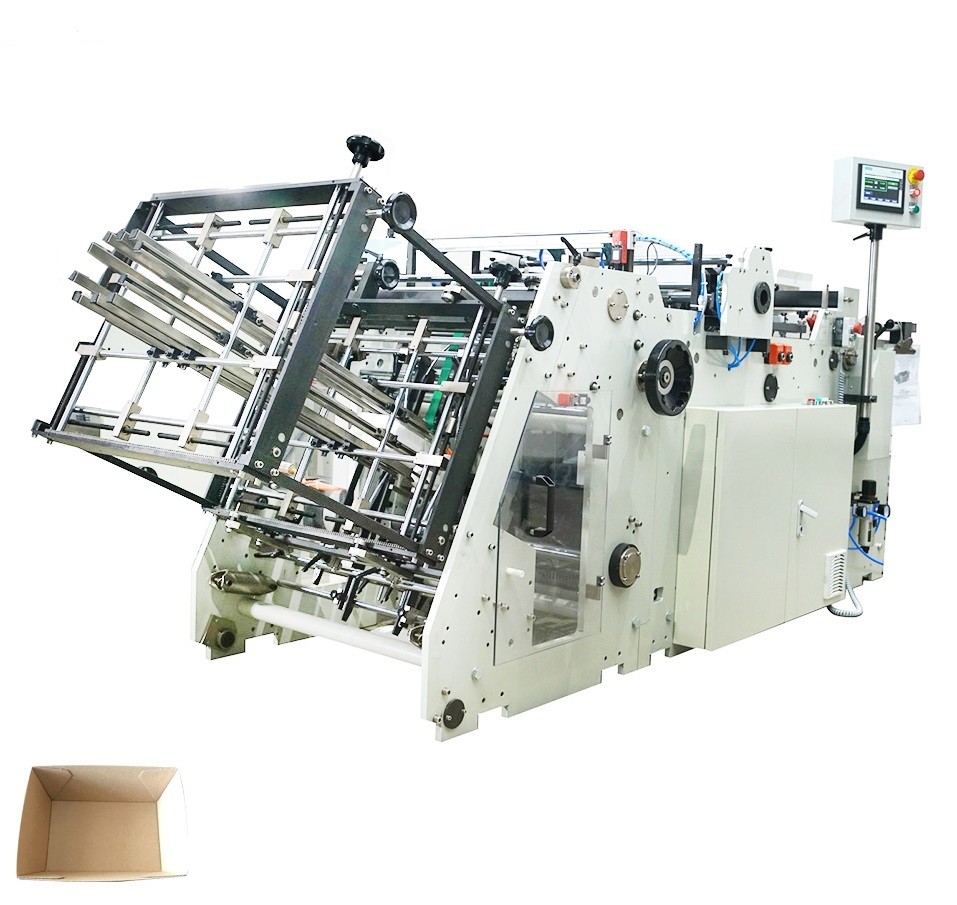

L-800A Hamburger Box Cartoning Machine For Food Paper Case

1 SET
MOQ
Negotiable
Price
L-800A Hamburger Box Cartoning Machine For Food Paper Case
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Type: Box Making Machine
Max. Production Speed: 200 PCS/Min
Height Of Side Flaps: 15mm-250mm
Height Of Flaps+Lid: 50mm-250mm
Blank Length: 100mm-450mm
Blank Width: 100mm-630mm
Covering Area: 4.0m*1.2m
Warranty: 1 Year Including All Parts
Highlight:

Hamburger Box Cartoning Machine

,

L-800A Hamburger Box Cartoning Machine

,

Food Paper Case Cartoning Machine
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO L-800A
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description

Hamburger Box Cartoning Machine Food Paper Case Cartoner


The Ecoo lunch box forming machine is designed according to European industrial standards. Initially developed in China, the products developed in China, the products have achieved CE certification and have been sold to many countries in the world.



With high quality and efficiency, it is an ideal choice for you to produce single PE-coated or double PE-coated paper lunch boxes. Adopting a servo system to control the forming structure.

Specification



Machine type L800-A
Blank length (L) 100mm-450mm
Blank width (B) 100mm-630mm
Height of side flaps (H) 15mm-250mm
Height of side flaps+lid (HI) 50mm-250mm
Conicity 5°-40°
Volage 380V/50HZ
Covering Area 4.0M*1.2M
The total Power 8KW
Maximum Production Speed 200 pieces/min
Air Pressure 0.6Mpa(Dry and clean compressed air)
Packing 2980mm*1560mm*1320mm, N.W.: 1500KG, G.W.: 1600KG
Materials Paper Board 200-600gsm; Corrugated board paper with thickness not exceed 1.5MM

​​

Machine type L800-A
Blank length L 100mm-450mm
Blank width B 100mm-630mm
Height of side flaps H 15mm-250mm
Height of side flaps+lid HI 50mm-250mm
Conicity   5°-40°

​

L-800A Hamburger Box Cartoning Machine For Food Paper Case 0

Features



L800-A adopts servo system to control the punching head, so L800-A makes it easier to change different boxes.
L800-A is better for making eight-corner boxes.

Other Option of Food Carton Erecting Machine
Model L1000 L1350 L1560
Lanes Double lanes Three lanes Four lanes

Lane means independent production line. A 3-lane machine is able to make 3 types of cartons
at the same time within its channels. The lanes are independent.
