MODELO: ECOO-ED
Double Layer, Long Run Length, UV ink Compatible

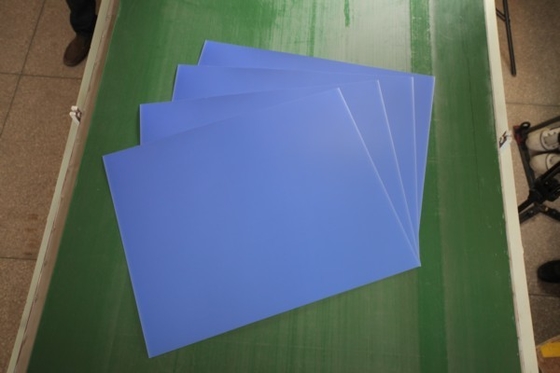

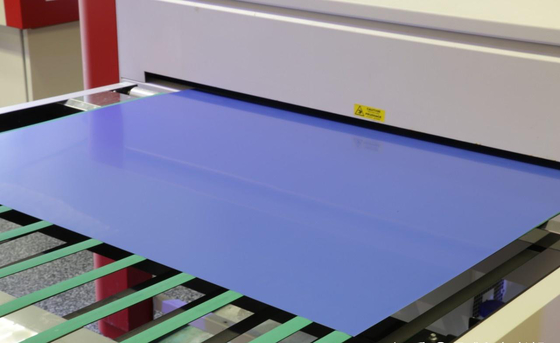

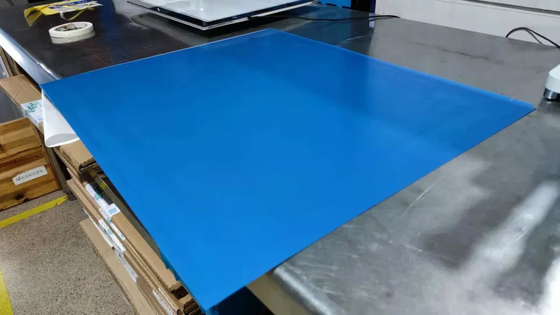

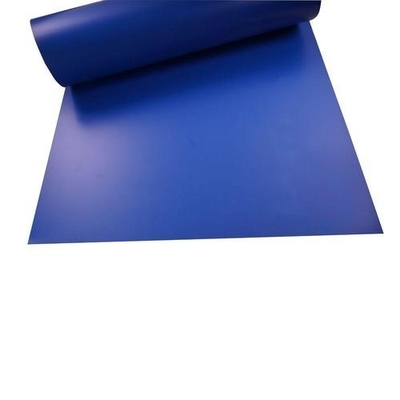

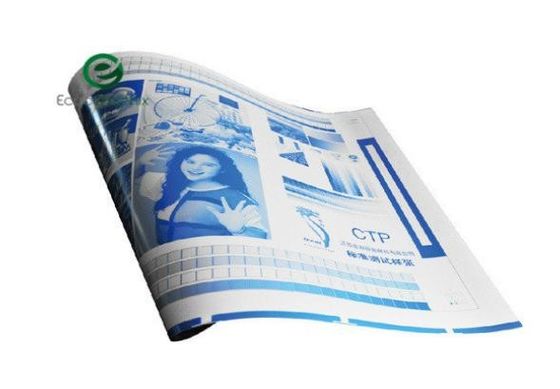

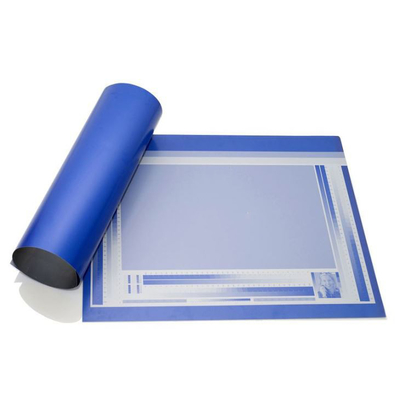

ECOO-ED Double-Layered Thermal CTP Plate Technology
Our ECOO-ED double-layered thermal CTP plate technology incorporates a highly chemical-resistant second layer, enabling extended printing runs without the need for baking.
Key Features:
1. Extended Printing Durability:
- The addition of a chemical-resistant second layer ensures longevity in printing runs, eliminating the need for baking processes.
2. Enhanced Sensitivity:
- ECOO-ED offers high sensitivity, facilitating quick and efficient plate imaging for improved workflow efficiency.
3. Versatile Screening Capabilities:
- This technology is adept at printing both AM (Amplitude Modulation) and FM (Frequency Modulation) screenings, providing versatility in printing options.
4. Increased Resistance:
- ECOO-ED plates boast strong resistance to various environmental and chemical factors, ensuring reliable performance even in demanding printing environments.
By combining these features, ECOO-ED sets itself apart from single-layered CTP plates, offering a comprehensive solution for high-quality, durable, and versatile printing applications.
Advantages
- Long run length with non-ablative coating - Resist UV-ink; workable with both normal ink and UV ink
- Mature product, good stability, and wide processing latitude
- Being adaptive to most of the platesetters, processors, and solutions.
Characteristics:
-Positive writing thermal plate -Double layers system -Made with high-grade aluminum from Europe
-Wide adaptability for different plate setter brands -Non-ablative coating
-Run lengths up to 100,000 impressions -UV Ink up to 50,000 impressions -Ability to print both AM and FM screening
Specification
| Plate Model |
ECOO-ED |
| Plate Type |
Positive Thermal CTP Plate(Double Layer) |
| Application |
High-grade commercial and newspaper printing |
| Substrate |
Electro chemically Grained and Anodized lithographic Aluminum |
| Aluminum alloy |
Standard 1050 Alloy |
| Coating |
Two-layer system, IR sensitive, positive acting |
| Gauge |
0.15,0.20, 0.25,0.30, 0.40 (mm) |
| Maximum short grain width |
Maximum width 1280 mm |
| Plate intermix |
Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc. |
| Length of Press Runs |
Ordinary Ink: 100,000 to 200,000 impressions
UV Ink: 50,000 to 100,000 impressions |
CTP Plate-Making Machine
Plate setters |
Kodak: Trendsetter/Lotem/Magnus; Fuji: Javelin T9000HS
Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter
Screen: PT-R, Creo: Scitex
EcooGraphix Thermal CTP Tseries |
| Exposure energy |
110 - 130 mJ/cm² |
| Spectral Sensitivity |
800-850 nm – Peaks 830nm |
| Resolution |
1-99% at 200 LPI |
| Image color |
Blue |
| FM capability |
20 micron stochastic |
| Image color |
Blue-green to Pale Green |
| Processor |
All the kinds of Brands. |
| Developer |
Kodak Gold Star or our developer |
| Processing temperature |
23°C +/- 2°C |
| Developing time |
25 - 30 sec |
| Processing Speed |
0.80 – 1.20 m/min |
| Safelight |
Daylight handling |
| Shelf Life |
12 months under recommended storage conditions |
| Packaging |
Available in all standard formats, including bulk packaging options
such as APL packaging |
| Storage and handling |
Stored in a cool and dry environment, away from excessive cold, heat, and humidity. |
Workflow
Producing and Packing
More details
FAQ
Q1: Can I get a sample?
A: We are very glad to provide some samples for you to test. We usually provide 5-15 pieces of plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM
Q6: Can I take my brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
