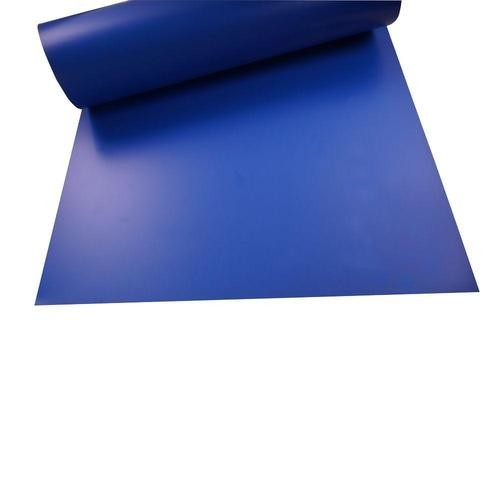

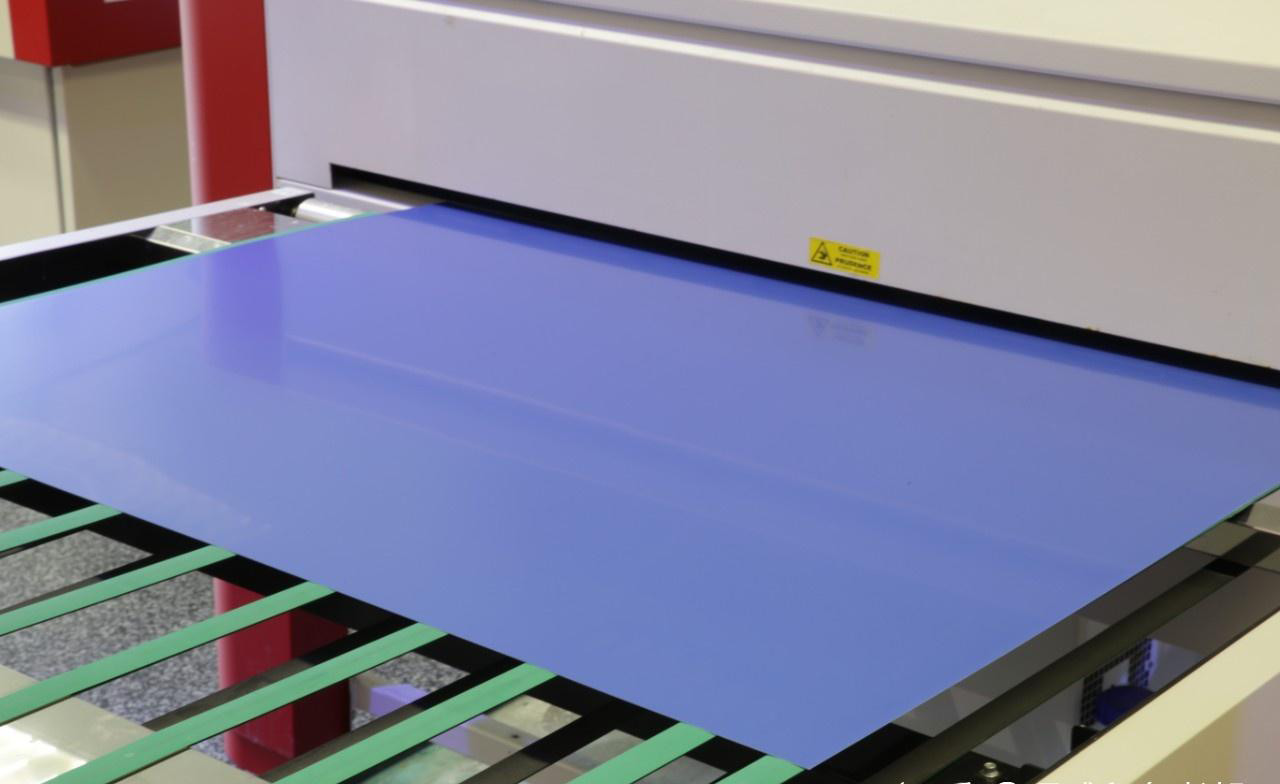

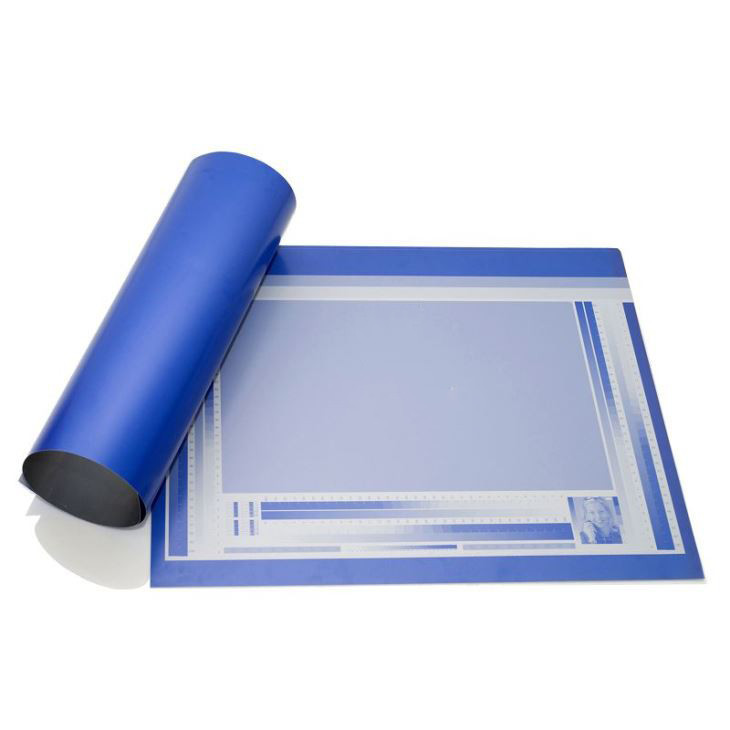

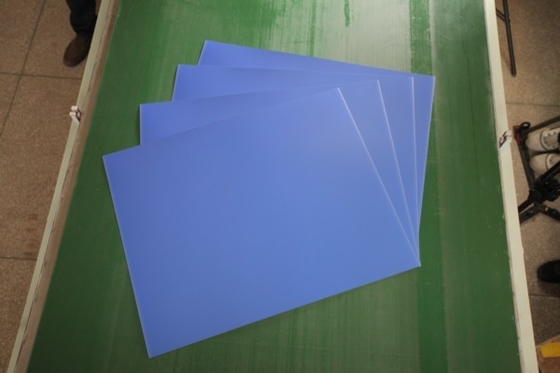

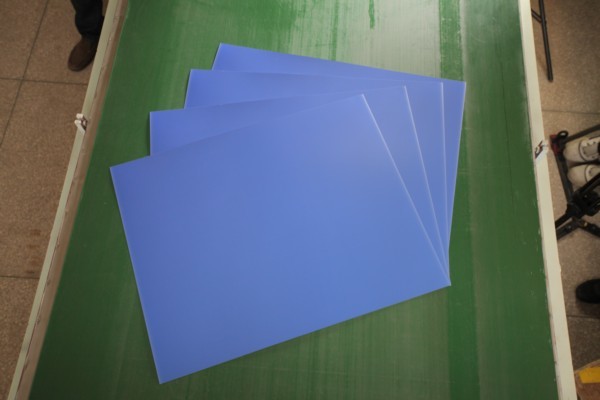

Durable Double-Layer Thermal CTP Plate for Long-Run Printing

1000SQM
MOQ
Negotiable
Price
Durable Double-Layer Thermal CTP Plate for Long-Run Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Coating: Two-layer System, IR Sensitive, Positive Acting
Gauge: 0.15,0.20, 0.25,0.30, 0.40 (mm)
Length Of Run: Ordinary Ink: 100,000 To 200,000 Impressions UV Ink : 50,000 To 100,000 Impressions
Resolution: 1-99% At 200 LPI
Exposure Energy: 110 - 130 MJ/cm²
Spectral Sensitivity: 800-850 Nm – Peaks 830nm
Highlight:

Long Run Length Thermal CTP Plate

,

Double Layered Thermal CTP Plate
Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: ISO, CE
Model Number: ECOO-ED
Document: ECOO-ED.pdf
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30 days
Payment Terms: L/C,T/T
Supply Ability: 2000,000 sqm per year
Product Description

ECOO-ED
Double-Layer Thermal CTP Plate – Long Run Length & UV Ink Compatible


The ECOO-ED thermal CTP plate is engineered with a dual-layer structure, featuring a highly chemical-resistant coating that enables extended printing runs without baking. It delivers durability, versatility, and reliable performance for the most demanding offset printing applications.


Specification


Plate Model ECOO-ED
Plate Type Positive Thermal CTP Plate(Double Layer)
Application High-grade commercial and newspaper printing
Substrate Electrochemically Grained and Anodized Lithographic Aluminum
Aluminum alloy Standard 1050 Alloy
Coating Two-layer system, IR sensitive, positive acting
Gauge 0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width Maximum width 1280 mm
Plate intermix Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Press Runs Ordinary Ink: 100,000 to 200,000 impressions
UV Ink: 50,000 to 100,000 impressions
CTP Plate-Making Machine
Plate setters		 Kodak: Trendsetter/Lotem/Magnus; Fuji: Javelin T9000HS
Heidelberg: Top setter/Supra setter; Luscher: Xpose Plate setter
Screen: PT-R, Creo: Scitex
EcooGraphix Thermal CTP Tseries
Exposure energy 110 - 130 mJ/cm²
Spectral Sensitivity 800-850 nm – Peaks 830nm
Resolution 1-99% at 200 LPI
Image color Blue
FM capability 20 micron stochastic
Image color Blue-green to Pale Green
Processor All the kinds of Brands.
Developer Kodak Gold Star or our developer
Processing temperature 23°C +/- 2°C
Developing time 25 - 30 sec
Processing Speed 0.80 – 1.20 m/min
Safelight Daylight handling
Shelf Life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options
such as APL packaging
Storage and handling Stored in a cool and dry environment, away from excessive cold, heat, and humidity.


Key Features

  1. Extended Durability

  • Double-layer construction supports up to long-run lengths, reducing downtime and eliminating the need for baking.

  1. High Sensitivity

  • Ensures fast, efficient plate imaging for improved productivity and smoother workflow.

  1. Versatile Screening

  • Compatible with both AM and FM screening, meeting diverse printing requirements.

  1. Superior Resistance

  • Excellent resistance to UV ink, chemicals, and environmental factors for consistent, stable performance.

Why ECOO-ED?
Compared with traditional single-layer plates, ECOO-ED delivers longer runs, stronger resistance, and greater flexibility—making it the ideal solution for commercial and packaging printing where quality and durability are essential.

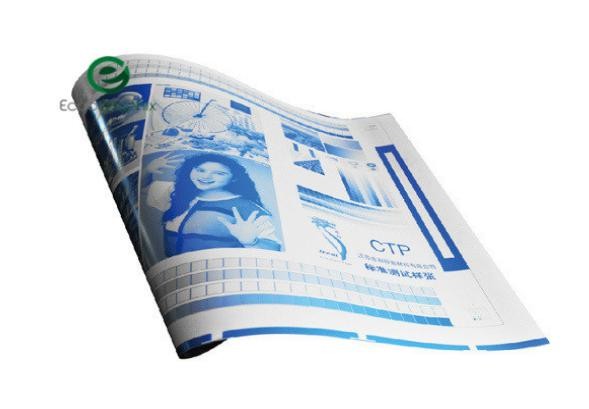

Durable Double-Layer Thermal CTP Plate for Long-Run Printing 0

Advantages

  • Extended run length with durable non-ablative coating

  • UV ink compatible while also performing with conventional inks

  • Proven reliability with stable performance and broad processing latitude

  • Universal compatibility with most major platesetters, processors, and chemical solutions

Characteristics

  • Positive-writing thermal plate with dual-layer construction

  • Manufactured with premium European aluminum for consistent quality

  • Non-ablative coating ensures image integrity and longer plate life

  • Compatible with a wide range of platesetter brands

  • Run lengths up to 100,000 impressions with conventional ink

  • Up to 50,000 impressions with UV ink

  • Supports both AM and FM screening technologies
