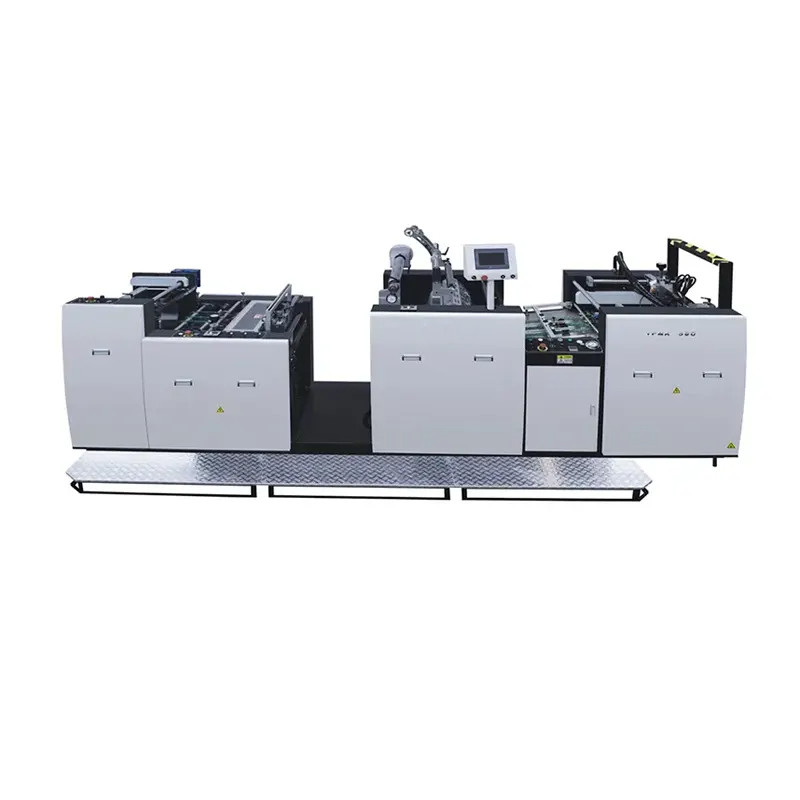

YFMA-590 is suitable for small size or small batch paper lamination problems. Especially for (Tag, image, digital printing, business printing, books, self-adhesive, etc.)
Features:
1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
2. Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.
3. Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.
4. High precision of chrome plated heating roller is equipped with oil circulation heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
5. Pneumatic pressuring system provides automatically steady pressure to guarantee good laminating quality. The pressure is adjustable upon applications.
6. Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
7. The combination of air expansion shaft and braking device can adjust film release tension and speed.
8. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
9. Film perforating wheel perforates film edge for the automatic cut of laminated paper.
10. Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won't curve again after cut.
11. Pneumatic cutting system realizes automatic paper cut.
12. Auto paper collector equipped with pat device stacks and tidies up cut paper. Patting frequency of pat device is adjustable.
