EcooGraphix 720mm Width Small Format Laminating Machine With Cutters For Office Use

1SET
MOQ
Negotiable
Price
EcooGraphix 720mm Width Small Format Laminating Machine With Cutters For Office Use
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Small Format Laminating Machine
Laminating Speed: 20-25m/Min
Power Supply: AC100, 110, 220-240V / 50,60Hz
Roller Diameter: 200/150mm
Maximum Thickness: 2/7mm(According To Custom Needs)
Max. Laminating Width: 720mm
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: S-720A
Payment & Shipping Terms
Packaging Details: Standard Exporting Package: Polywood Carton
Payment Terms: L/C, T/T
Supply Ability: 1000sets/Year
Product Description

Small Format Laminating Machine With Cutters For Office Use



Product Description




Features

1. Intelligent temperature control, thermally conductive inner steel reel, infrared internal heating.
2. Electric adjustment of single-sided reverse curl function. Electric adjustment of single-sided reverse curl function.
3. Frequency converter speed control, 400W gearbox decelerating motor.
4. Manual pump hydraulic control system, shockproof pressure display gauge.
5. Synchronous conveyor belt automatically feeds paper, and the finished product is automatically broken.
6. Equipped with trimming cutter and dotted tooth cutter.
7. Equipped with an inching foot switch to facilitate film channeling.
8. The diameter of the steel roller is 200mm, and the diameter of the lower rubber roller is 150mm.
9. The rubber roller is made of imported non-sticky high temperature resistant silicone rubber.

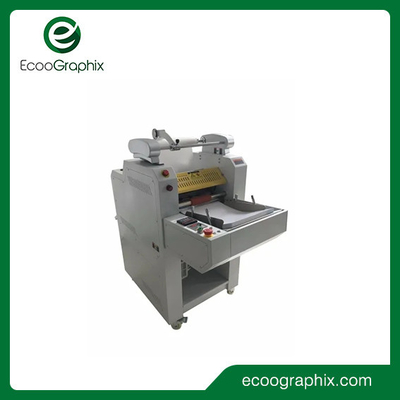

EcooGraphix 720mm Width Small Format Laminating Machine With Cutters For Office Use 0

Specification




Model S-720A
Max. Laminating Width 720mm
Maximum Thickness          2/7mm(according to custom needs)
Laminating Speed 20-25m/min
Roller Diameter 200/150mm
         Max. Heating Temperature          160ºC
Preheat Time 15-20 minutes
Heating Mode Infrared heating
Heating Power 3900W/ 5400W
Power Supply AC100, 110, 220-240V / 50,60Hz
Motor Power 400W
Weight Net: 480kgs, Gross: 550kgs



Producing And Packaging




EcooGraphix 720mm Width Small Format Laminating Machine With Cutters For Office Use 1

EcooGraphix 720mm Width Small Format Laminating Machine With Cutters For Office Use 2

EcooGraphix 720mm Width Small Format Laminating Machine With Cutters For Office Use 3

EcooGraphix 720mm Width Small Format Laminating Machine With Cutters For Office Use 4

EcooGraphix 720mm Width Small Format Laminating Machine With Cutters For Office Use 5

EcooGraphix 720mm Width Small Format Laminating Machine With Cutters For Office Use 6

More Details

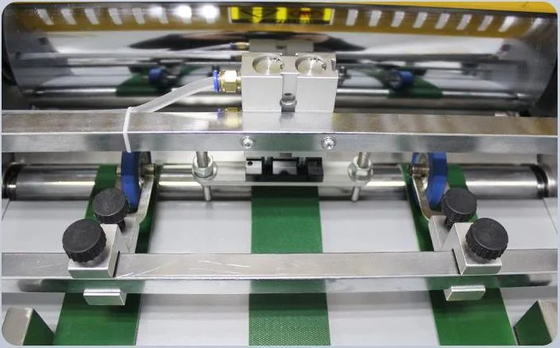

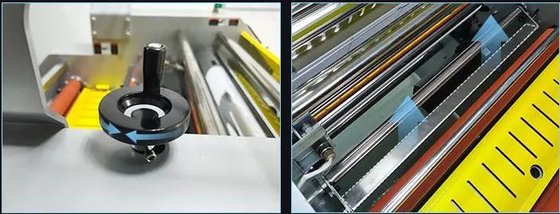

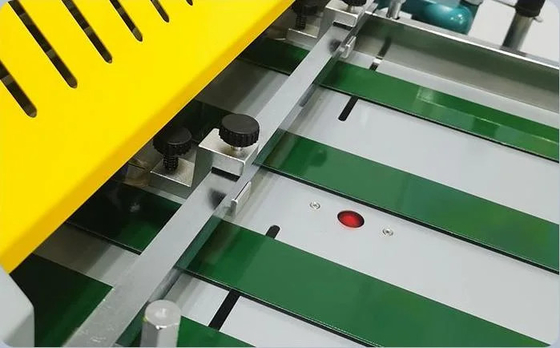

EcooGraphix 720mm Width Small Format Laminating Machine With Cutters For Office Use 7

EcooGraphix 720mm Width Small Format Laminating Machine With Cutters For Office Use 8

FAQ


1. Where is your company?
Our company is located in Hangzhou city , which is 1 hour by train from Shanghai.

2. What about the Installation and after-sales technician support?
Our engineer will go to help the installation and will provide the necessary training on site. (The buyer should take the round airplane tickets and service charge and the local accommodation cost). Any problems or questions,we will be at your disposal 7x24 hours.
