A3 Paper Roller Automatic Flute Laminator With Hot Foil Stamping

1SET
MOQ
Negotiable
Price
A3 Paper Roller Automatic Flute Laminator With Hot Foil Stamping
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Max. Laminating Width (mm): 340mm
Paper Thickness (gsm): 2/7mm(according To Custom Needs)
Film Thickness (µm): 10-25
Laminating Speed (m/min): 0-5m/min
Machine Weight (kgs): Net:220kgs Gross:260kgs
Application: Water-based Glue, Oil-based Glue, Thermal Film, Glueless Laminating Film
Warranty: One Year
Highlight:

A3 Paper Roller Automatic Flute Laminator

,

Hot Foil Stamping Automatic Flute Laminator

,

67x67mm Display Automatic Flute Laminator

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: CE
Model Number: SRL35A
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30DAYS
Payment Terms: L/C, T/T
Supply Ability: 500SETS
Product Description

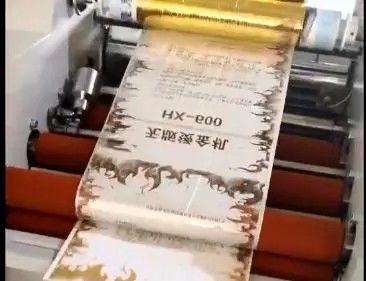

A3 Paper Roller Laminator with Hot Foil Stamping for Flyers Posters Book Cover​



It's our new Automatic paper feeder roller laminator and Automatic paper feeder function makes your hands free .

Single sided laminators are great for laminating shops and small print shops. A single side laminator is the perfect solution for high quality single side lamination of flyers, book covers, posters and more.


PRODUCT DESCRIPTION

The laminator can thermolaminate, for example, 350 g couche. And cardstock like duplex.

That it is completely automatic, that is to say that it takes the sheets alone and delivers them clean (without excess thermo-laminate).

The width of the paper is that of laser printing, 33 cms.



Features:
* Automatic paper feeder make your hands free,Automatic feeding table with friction roller system, feeding speed is adjustable
* adds new single side Anti-curl functions, can choose single or Duplex sides paper laminator
* the distinctive anti-curl function make the effect and result more beautiful
* adds Strong cooling fan make the anti-curl result better and cooling the machine make it durable
* Electric Adjustment lever can choose different position, solve the problem of different thickness paper anti-curl result
* adds Trimming Cutter on left, can cut Excess film wider than paper
* adds the Dotted line cutter on right, cut off the Membrane auto repalced the manual cutter
* Can operate A3 SIZE paper. Just put it Upright
Print protection: scratch resistant and moisture resistant.
Print enhancement: Increase color vibrancy, glossy laminating or matte laminating.

Remarks:
Laminating speed depend on paper weight, film thickness and gule material quality.
Subject to change without notice.



Applications: Water-based Glue, Oil-based Glue, Thermal Film, Glueless Laminating Film ,
high quality single side lamination of flyers, book covers, posters and more.


SPECIFICATION



Model SRL-35A
Max. Laminating Width 340mm
Display 67x67mm
Maximum thickness 2/7mm(according to custom needs)
Laminating Speed 0-5m/min
Roller Diameter 110mm
Max. Heating Temperature 160
Preheat time 15-20 minutes
Type of paper 120-350gsm
Heating Mode Infrared heating
Heating Power 1500W
Power Supply AC100,110,220-240V / 50,60 Hz
Motor Power 180W
Machine Dimension 1150*630*1240mm
Weight Net:220kgs Gross:260kgs
