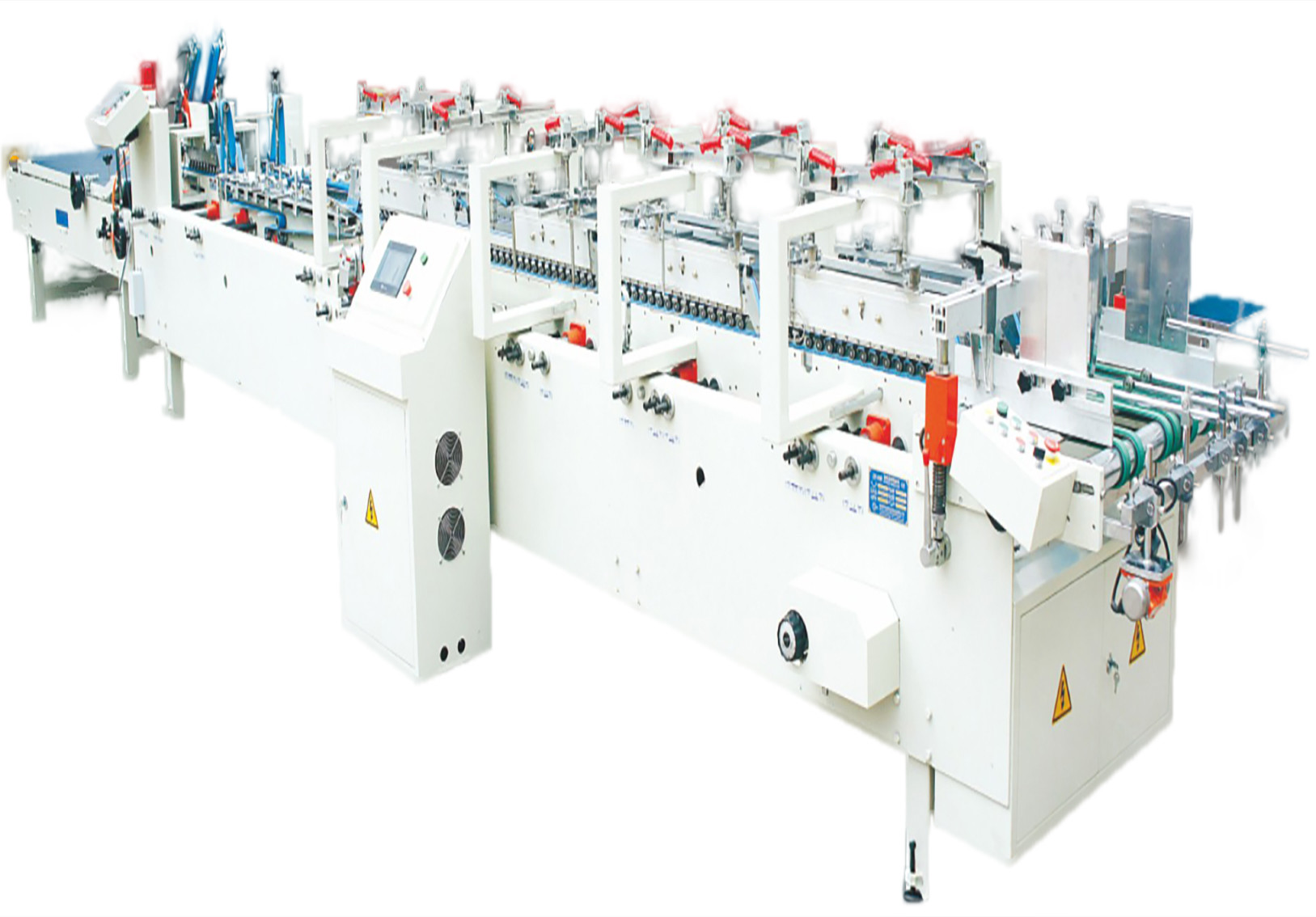

4 Corners Folder Gluer for Paper Box with Crash Lock Bottom
EcooGraphix is a professional supplier of eco-friendly paper processing machines and paper products. Following the enterprise development mission of “Create Value for Customers”.
At the beginning of 1990s, the production of snack boxes (such as ice cream paper cone, hamburger box, etc.) mainly relied on manual operation or machines imported from Europe and North America. The poor sanitary condition, low product consistency, low efficiency, expensive imported machines, long delivery period and high service cost all restricted the development of domestic paper production enterprises. However, Chinese national industries still developed rapidly and Dayuan was resolute to enter this completely new industry.
Features of Carton Erecting Machine
1,This machine is economic 4 corner folder gluer.
2,General straight line, pre-fold, Crash lock bottom 4 corner.
3,The speed is fast, maximum linear speed 280m / min.
4,PLC computer control + touch screen display.
5,Cold spray glue system with 2 spray glue gun.
6,Pneumatic rear pressure table, The conveyor has separate motor to control speed. It has auto trombone control function ( only when the box coming, the pressing unit works ),counting by Pneumatic kicker.
7,Wireless remote control.
Main Technical Data: (Unit: mm)
| Model | Box Type | A | B | C min | D min |
| Ecoo 800 | Straight-line box( I ) | 130-800 | 60-700 | 50 | 20 |
| Pre-fold box( I ) | 170-800 | 60-700 | 50 | 20 | |
| Crash lock bottom box( II ) | 180-760 | 100-700 | 80 | 50 | |
| 4 corner box | 150-700 | 180-800 | 20 | 100 |
| Automatic Folder Gluer | |
| Model | Ecoo-780FC |
| Line speed | 0- 280m/min continuous adjustment |
| Paperboard | 210~600g/m2 paperboard E corrugated board |
| Box forming | Single side gluing or both side gluing and pre-folding, crash lock bottom, 4 corner box |
| Way of folding | First, second and fourth lines fold 180°, third line fold 135° |
| Paper board feeding | Automatic feeding |
| Glue type | Cold glue |
| Weight | 2500kg |
| Dimension | 12.5x1.1x1.4m |
| Power | AC 380V 12.5KW |
Shipping And Packaging
| Shipping | By sea, or as your requirement to do | |
| Packaging | By Strong Wooden Case | |
| Packaging Dimensions | Case 1 | Size: 2980mm* 1560mm* 1320mm |
| Net weight : 1500KG | ||
| Gross weight: 1600KG | ||
| Case 2 | Size:1310mm*1170mm*900mm | |
| Net weight :250KG | ||
| Gross weight:290KG | ||
FAQ:
Q:Why choose us ?
A: We are manufacturer .We have strict QC policy to control the producing process,strong technica team and after-sales service team to offer best support,try our best to exceeding your expectations.
-Inquiry will be replied with 24 hours.
-OEM service is available.
-Protect your design & information.
Q:Do you have the CNC workshops ?
-We have our own CNCworkshops,we produces the molds by ourselves.
Q: Can I have sample before order?
A: Yes ,free samples can be sent out,the freight cost is paid by you.
(1).You can provide your a/c like DHL/Fedex/TNT ect.
(2).You can call your courier to pick up at our office.
(3).You can pay us the freight cost by T/T.
Q: Can you make the customized paper cone ?
A: Yes , please show us your sample first .
Q: What time for delivery ?
A: Machine about 45 days after get your deposit.
Q: Engineer oversea service ?
A: Yes ,we can send engineer to help you install ,training worker until the machine normal running.
-If you meet any problem at any time,we could offer the technical support on line as well.
Q: What payment term ?
A: T/T 30% down payment ,balance before delivery ,or LC at sight or D/P etc.
Q: Do you have any certificates?
A:We have CE and ISO certificates .
Q: Where is your factory located ? How can I visit you?
A: Our factory is located at Zhongshan city ,Guangdong province .We can pick you up from either Guangzhou airport or Zhuhai airport or Zhongshan north station by high-speed rail.
Q:How can I contact you ?
A:You can contact us by Email / Whatsapp / Wechat / Telephone .
