Home /Products/Automatic Flute Laminator/High Efficiency Precoated Thermal Film Automatic Laminator with 1080mm Max Width and 10-60m/min Speed

High Efficiency Precoated Thermal Film Automatic Laminator with 1080mm Max Width and 10-60m/min Speed

1SET
MOQ
Negotiable
Price
High Efficiency Precoated Thermal Film Automatic Laminator with 1080mm Max Width and 10-60m/min Speed
Features Gallery Product Description Request A Quote
Features
Specifications
Max Laminating Width: 1080 Mm
Paper Thickness: 100-500 Gsm
Film Thickness: 10-25 µm
Laminating Speed: 10-60 M/min
Machine Weight: 8500 Kgs
Power Consumption: 30kw/h
Highlight:

solvent based glue laminating machine

,

ce flute laminator
Basic Infomation
Place of Origin: China
Brand Name: ECOOGRAPHIX
Certification: CE
Model Number: ECOO MTM108E
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30DAYS
Payment Terms: L/C,T/T
Supply Ability: 500SETS
Product Description
High Efficiency Precoated Thermal Film Automatic Laminator
YFMA Series

In order to satisfy for customers' high demands of laminating technology, our engineers team devote years to researching and testing, and combined with the characteristic of the best laminating technology in Europe, and finally launch the new automatic laminating machine with advanced technology . The outstanding features are with high speed, high quality, saving electricity and environment-friendly.

PRODUCT DESCRIPTION
  • The machine is suitable for using water-based glue, solvent-based glue, and thermal film.
  • Cold-water non-curling system: The paper will be non-curling after separated.
  • Low cost: Ceramic anilox roller coating, minimize gluing amount to 5g/sqm.
  • The heating energy cycle drying system makes the whole machine power consumption about 30kw/h.
  • High efficiency:The machine working speed reaches to 70m/min, 10000sheets/h.
Remarks:

Laminating speed depend on paper weight, film thickness and gule material quality.

Subject to change without notice.

Standard Configuration:
  1. Automatic Feeder
  2. Non-stop Feeding Device
  3. Pre-loading Device
  4. Laminating Host
  5. Automatic Sheeter
  6. Automatic Delivery
  7. Powder Removing Device
Selectable Configuration:
  1. Cold Water Non-curling System
  2. Hot Knife
  3. Anti-static System
Applications:

Water-based Glue, Oil-based Glue, Thermal Film, Glueless Laminating Film

SPECIFICATION
Model YFMA850 YFMA1050
Max. Sheet(W x L) 850*1050mm 1050*1050mm
Min. Sheet(W x L) 300*300mm 300*300mm
Machine Speed oneside:0~80m/min
Double side:0~60m/min(optional)
Paper Thickness 105~500g/m2
Overlap error +_2mm
Paper feed height 1150mm
Paper stack height 1050mm
Laminating Temperature 80-110℃
Power required (Different configuration, different power) 28kw 30kw
Dimension(L x W x H)cm 860*180*200 860*200*200
N.W.(kgs) 5500 6500

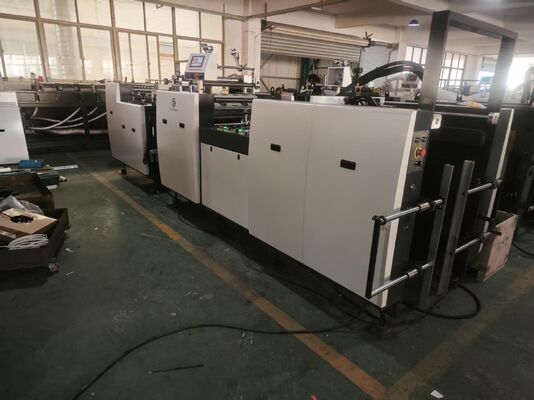

High Efficiency Precoated Thermal Film Automatic Laminator with 1080mm Max Width and 10-60m/min Speed 0

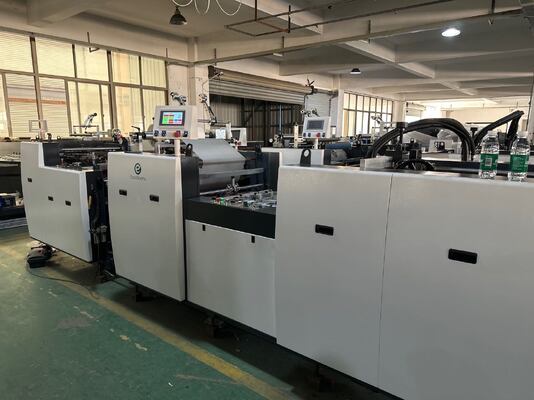

High Efficiency Precoated Thermal Film Automatic Laminator with 1080mm Max Width and 10-60m/min Speed 1
High Efficiency Precoated Thermal Film Automatic Laminator with 1080mm Max Width and 10-60m/min Speed 2
High Efficiency Precoated Thermal Film Automatic Laminator with 1080mm Max Width and 10-60m/min Speed 3
Tag:

thermal film flute laminator

multi functional flute laminator machine

automatic flute laminator machine
