| This thermal CTP Plate(Single Layer) is able to meet various requirements of high grade commercial and newspaper printing. It has the advantages of fast plate making speed, high tolerance level, precise half-tone dot reproduction, good ink balance and high press run length, and good price. But if you use UV ink and vanish, and fluently make long printing jobs, this plate is not suitable. It is better to try our ECOO-ED and ECOO-TSR. |

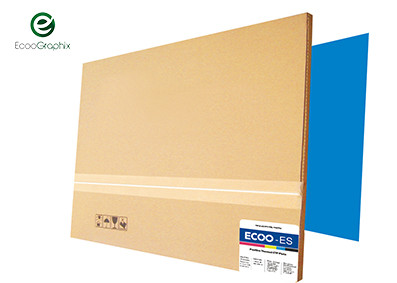

| Model | ECOO-ES |
| Plate Type | Positive Thermal CTP Plate |
| Application | High grade commercial and newspaper printing |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Aluminum alloy | Standard 1050 Alloy |
| Coating | Single-layer coating, IR sensitive |
| Gauge | 0.15,0.20, 0.25,0.30, 0.40 (mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Plate intermix | Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc. |
| Length of Run | Unbaked: 80000 to 100,000 impressions |
| Baked: Over 100000 impressions | |
| |
| Plate setters | Kodak Trendsetter/Lotem/Magnus; Fuji Javelin T9000HS; Heidelberg Topsetter/Suprasetter; Screen PT-R; Creo Scitex , or EcooGraphix thermal CTP T series |
| Exposure energy | 90 - 120 mj /cm² |
| Spectral Sensitivity | 800-850 nm – Peaks 830nm |

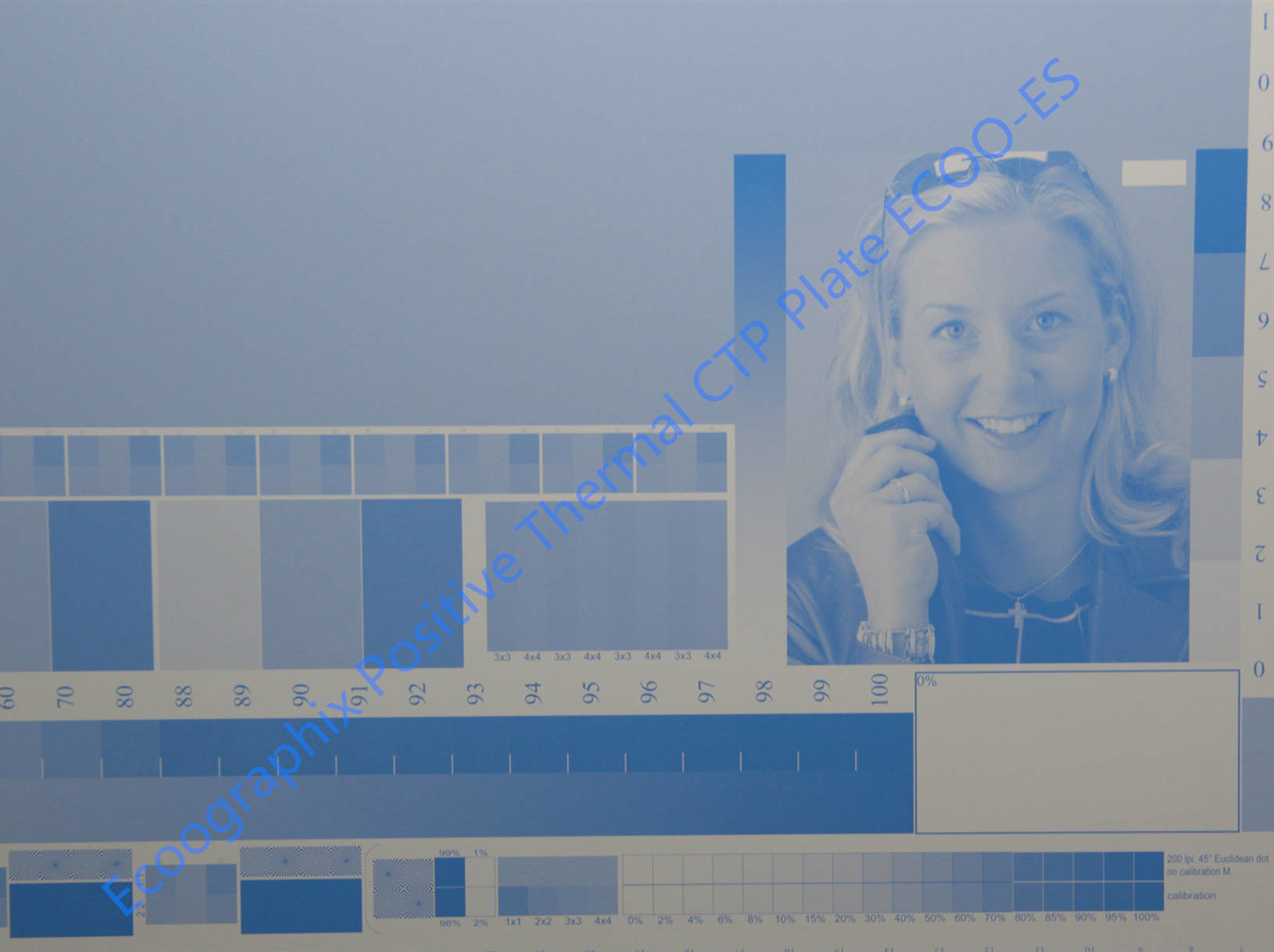

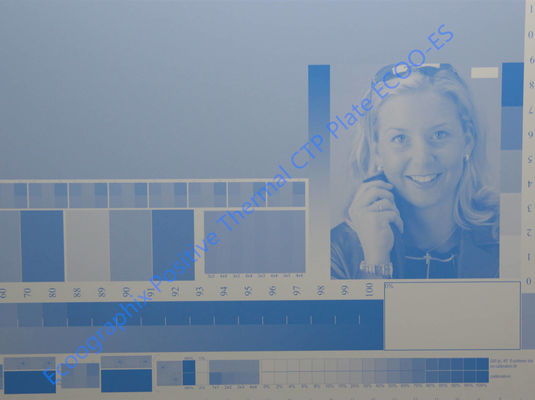

| Resolution | 1-99% at 300 LPI |
| FM capability | 20 micron stochastic |
| Image color | Blue |
Develop and processing
| Processor | All Brands. |
| Developer | Kodak Gold Star or our own developer |
| Processing temperature | 23°C +/- 2°C |
| Developing time | 25 - 30 sec |
Recommended Image Data
CTP model | Kodak trendsetters | LOTTEM 400(TH1.7) | MAGNUS 400 | Screen 8600S |
| Laser power | 13-15W | 270-280mw | 17-19W | 70-80 % |
| Drum speed | 250-300rpm | 850-900rpm | 400-450rpm | 800-900rpm |
| Resolution | Customized | Customized | Customized | Customized |
| Parameter that need set up | Focus／ Zoom | Focus／ Zoom | Focus／ Zoom | Focus／ Zoom |
*Note: Higher exposure energy will make the image contrast more clear, and benefit to the plate run length; while over high/low exposure energy will affect the image quality negatively.
Application
Suitable for sheet-fed offset press without UV ink, vanish.
Run length: 60000-100000 impressions
Suitable for different types of traditional inks and fountain solutions, commercial printing, newspaper printing and package printing.

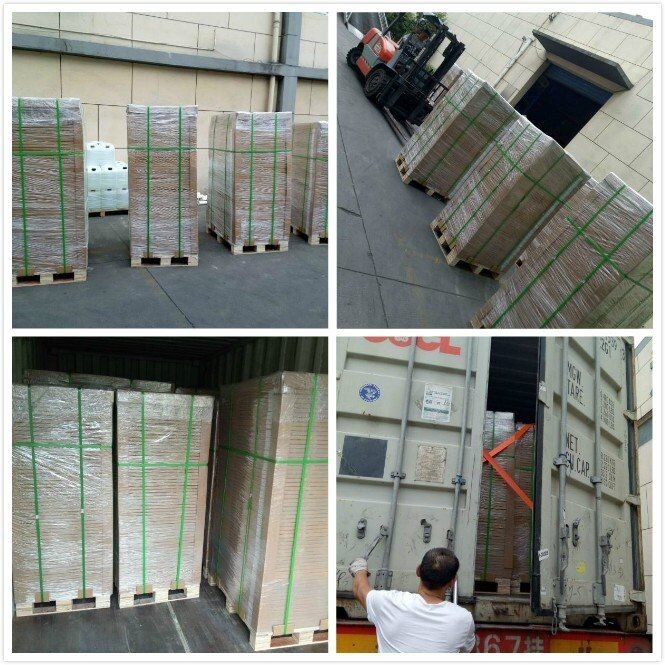

Transpotation and storage

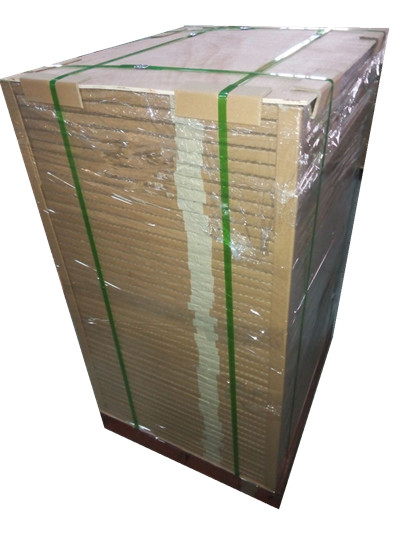

Packed in seal and stored by means of preventing from light/moisture, over heat and high humidity.
Recommended conditions: 18ºC-24ºC, 40%-50% RH
Avoid saliva, water stains, water mist and other aqueous solution contaminating the plate surface before plate-making.
If the plates can not be used up after unpacking right away, the rest should be put into the original package, then seal it to prevent from moisture.
Q&A for plate products
1. How long is the lead time?
The lead time is normally 30 days.
2. Do you offer free plate samples?
Yes, we offer free testing samples maximum 12 pcs for each size but with delivery fee collect.
3. How do you guarantee stable quality?
There are 3 inpecting procedures: 1, automatic on-line 24h scanning detector; 2, random sampling per 15 mins at the producing line; 3, manually full inspection before packing.
4. Do you have accompanying plate making products to enable one-stand easy purchase for some end users?
Yes. CTP machine, processors, developers, ink, blanket and some common fihishing machines are also within our category.
5. Payment term
Normally, 30% deposit, 70% before shipping.
