Processless Thermal Negative DOP CTP Offset Printing Plates

1000 sqm
MOQ
Negotiable
Price
Processless Thermal Negative DOP CTP Offset Printing Plates
Features Gallery Product Description Request A Quote
Features
Specifications
Guage: 0.15-0.4mm
Color: Grey
Running Length: 120000 Impression
Size: Not Exceeding 1280 In Width
Feature: Non-process, Non Chemistry, Process-free Plate
Material: Aluminum Base With Polymer Coating
Highlight:

non chemistry ctp printing plate

,

processless thermal ctp plate

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: ISO, CE
Model Number: ECOO-G
Payment & Shipping Terms
Packaging Details: 50 pcs per carton, 45 cartons in a pallets, with standard and secure package worthy for exporting
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, Western Union, paypal
Supply Ability: 5000000 sqm per year
Product Description

Processless Thermal Negative DOP  Non-Chemistry CTP printing plate



ECOO-G thermal DOP plate (develop on press ), could be applied onto printers directly without processing/developer after imaging, chemistry free, environment-friendly.



ECOO-G Plus thermal plate is a new environmental-friendly processless printing plate. ECOO-G plate can be run on press machine directly after CTP exposing, no need chemistry processing. It is double layer plate: emulsion layer is on the aluminum, and protection layer is above emulsion layer.

The emulsion layer is negative photopolymerization /cross-link, can be exposed by 800-850nm wave-length. So all the known thermal CTPs (can expose normal thermal plate) on the market can expose this plate, only set up the exposure parameter to “negative”.

The protection layer is water-soluble polymer. It is mainly used to protect the emulsion layer high sensitivity (low exposure energy required), and from damaging as well. Therefore, it is important to keep the plate away from any water, steam or even sweat materials.

ECOO-G plate will be affected by high temperature and high humidity. Recommended shipment and storage condition is 18-25 OC, RH 30-50%.


Technical data

Model Ecoo-G
Plate type Non-ablation thermal-Negative type
Application High grage commercial and newsprinting
Substrate Electrolyte graining and Anodozed AL substrate
Thickness 0.15mm-0.4mm
Spetrum scope 800-850 nm
Plate setter Various dominant thermal platesetters in the market
Low-energy imaging 130-150 mj/m²
The period of latent image stablization ≤7 days
Recommended screen method 1-99@ 200 lpi AM/20U FM and mixture
The paper number of start-up < 50 sheets
Safety light 1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light.
Processing Without processing, directly on press
Run length 100000 impressions, actual run length depend on printing conditions
Baking No recomended

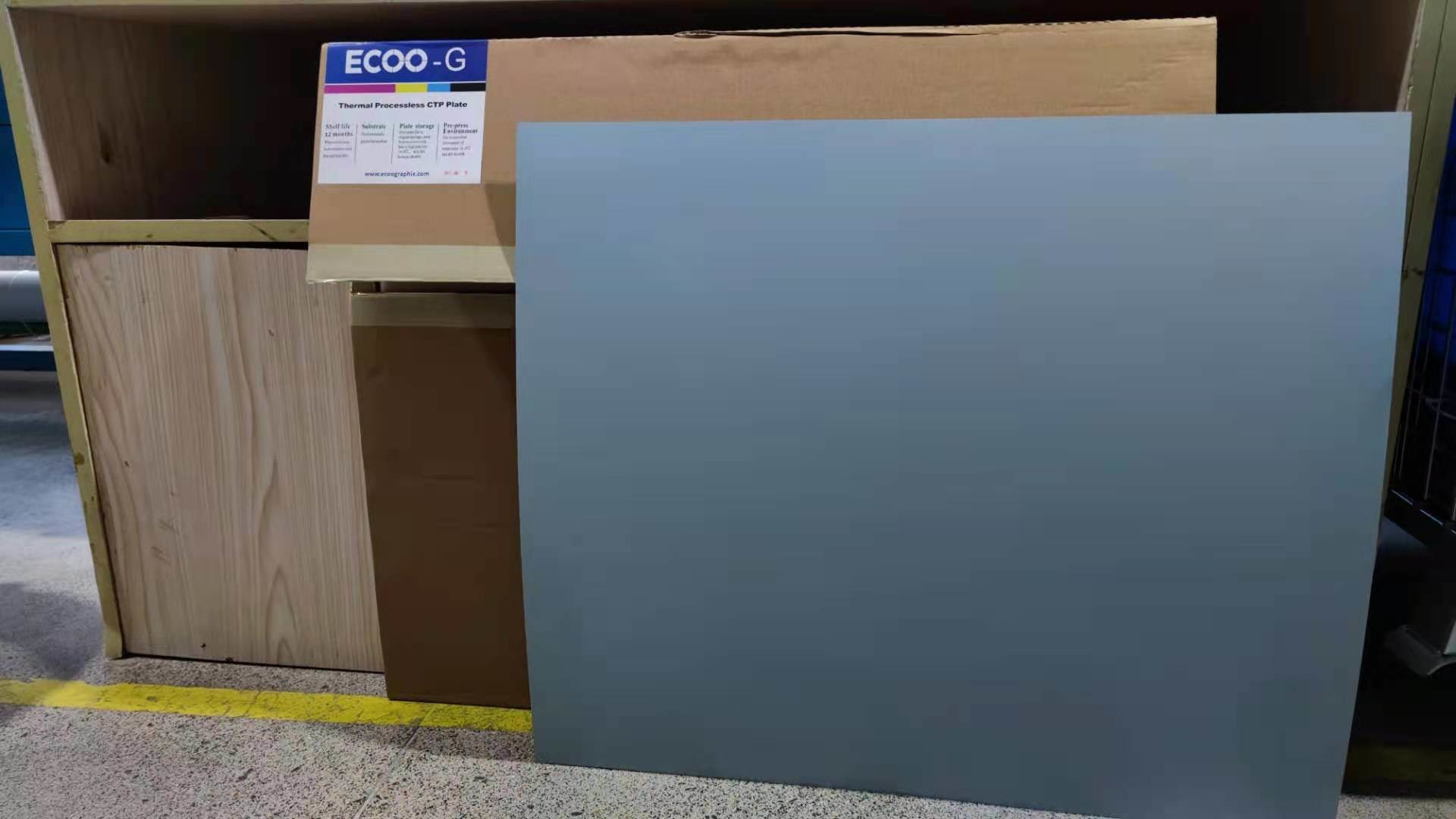

Processless Thermal Negative DOP CTP Offset Printing Plates 0
Features
Negatibe non-ablation photosensitive system;
Compatible with dominant devices in the market.
Can be printed directively on the machine withour processing steps after scanning by thermal CTP platesetter.
Good dot reproduction, stable performance.
long stablity of latent image, can be stores at least a week after plate-making.
High quality aluminum substrate, professional coating formulation.

Application
Suitable for sheet-fed offset press or high speed rotary offset press.
Run length: 100000 impressions
Suitable for different types of traditional inks and fountain solutions, including alcohol's substitutes as fountain solutions.
Unsuitable to improve tun length by baking plates

Plate structure


Processless Thermal Negative DOP CTP Offset Printing Plates 1

Processless plate V.S process plate

ECOO-G V.S ECOO-ED/ECOO-ES
(Thermal Negative Processless plate ) (Thermal positive process plate)
No precessor requires, save your cost on processor machine A processor machine required
No chemistry to deal with, save your cost on developer and water treatment Developer required
Elimination of processing time, more time available for other work 30 seconds in processor per sheet
Same performance level as Azura & Sonora, but more competitive price /
Environment-friendly product, has bright future, policy support Need extra water treatment device and space to treat wasted developer
Higher price than normal process plate More economic in price, lower business cost
20 pcs of starting papers until image come out less waste in starting paper
Not strong contrast between imaging zone and non-image zone, not easily to recognize image mistake before printing Strong contrast after imaging is helpful to observe image mistake


Transpotation and storage
Packed in seal and stored by means of preventing from light/moisture, over heat and high humidity.
Could be shipped in general container, very economic.
Recommended conditions: 18ºC-24ºC, 40%-50% RH.

Our existing distrubuting channels:

Processless Thermal Negative DOP CTP Offset Printing Plates 2
Q&A for plate products
1. How long is the lead time?
The lead time is normally 30 days. We prodduce regularly per 2 months.

2. Do you offer free plate samples?
Yes, we offer free testing samples maximum 12 pcs for each size but with delivery fee to collect.

3. How do you guarantee stable quality?
There are 3 inpecting procedures: 1, automatic on-line 24h scanning detector; 2, random sampling per 15 mins at the producing line; 3, manually full inspection before packing. The production is mature. It is not a new product to us.

4. Do you have accompanying plate making products to enable one-stand easy purchase for some end users?
Yes. CTP machine, processors, violet plate, CTP-CTCP plate, chemistry(fountain solution, roller wash, etc.) are all available to make your purchase more easily.

5. Payment term
Normally, 30% deposit, 70% before shipping. or LC at sight.

6. Is refrigerating container necessary for shipment?
No. The plate is relatively stable and mature. So normal container is enough unless some ertreme hot situations.
