Low Chemistry Conventional Positive Plate for Offset Printing
Introduction

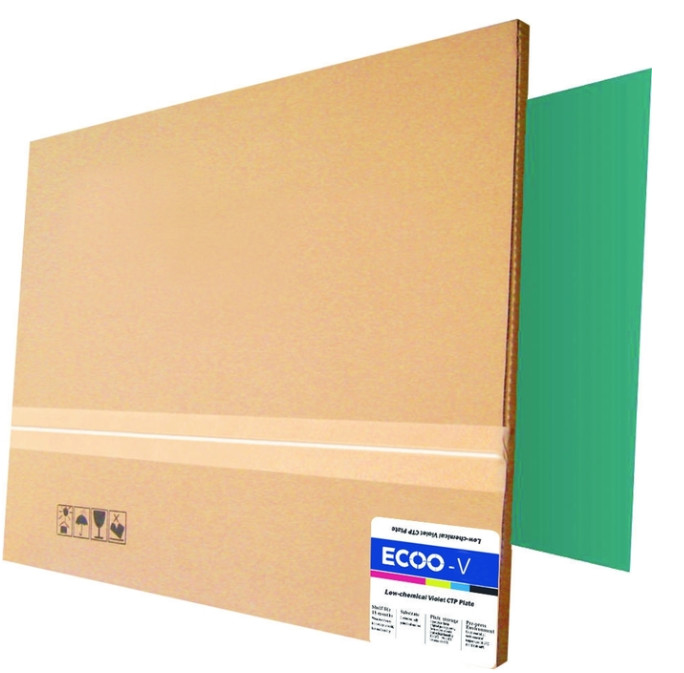

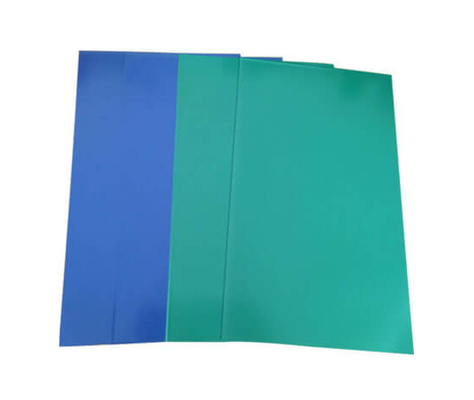

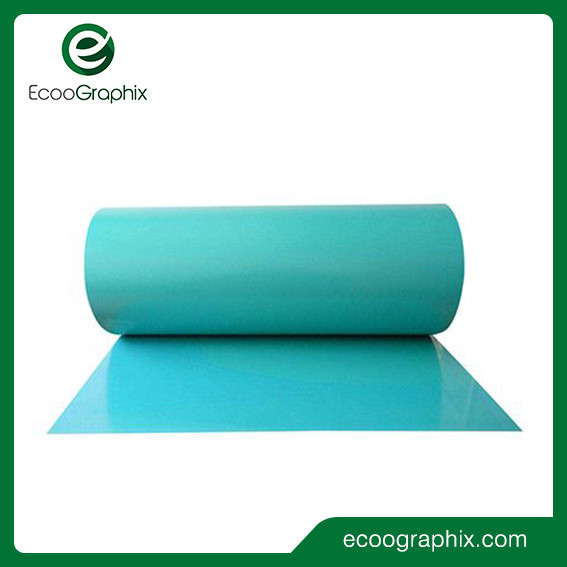

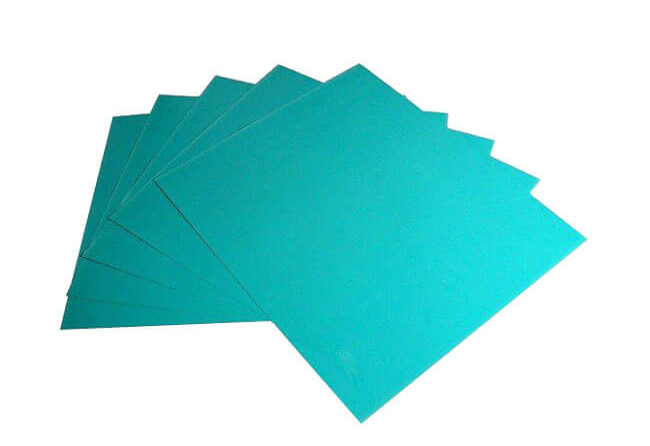

EcooGraphix Low-Chemical Violet Plate Ecoo-V is designed specifically for newspaper printing, offering an environmentally friendly solution. Unlike regular Violet CTP plates, Ecoo-V retains its original photosensitive properties and printing compatibility, ensuring high-quality results.
Specification
Model
ECOO-V
Plate Type
Low chemistry violet plate, negative printing
Application
Newspaper Printing
Substrate
Electro chemically Grained and Anodized Aluminum
Gauge
0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width
Maximum width 1320 mm
Developer
Developing gum
Length of Run
Unbaked: 200,000 impressions;
Baked: 500,000 impressions(dependent upon image resolution, press,
press chemical, ink, and paper conditions)
Plate setters Capability
All the main brands of violet CTP in the market, have laser power of no less than 30 mw
Aluminum
Standard 1050 Alloy
Exposure Energy
50-60 μj/ cm² (based on plate setter and developing condition)
Developing Time
20±3 sec
Developing Temperature
28±2 ºC
Spectral Sensitivity
405 nm
Resolution
150lpi (2-98%), under 1800dpi, 25μm line can be produced.
Preheat
95-121 ºC
Brush Speed
100 rpm
Shelf Life
12 months under recommended storage conditions
Storage and Handling
- Store plates flat in their packaging, away from extreme cold, heat, or high humidity.
- Recommended conditions are temperature between 15-28ºC and relative humidity between 30-70%.
- Handle with care, ensuring the maximum stack height does not exceed 1.2m.
- Open the box under yellow light and seal any remaining plates to prevent moisture ingress.
| Model |
ECOO-V |
| Plate Type |
Low chemistry violet plate, negative printing |
| Application |
Newspaper Printing |
| Substrate |
Electro chemically Grained and Anodized Aluminum |
| Gauge |
0.20, 0.25, 0.30, 0.40(mm) |
| Maximum short grain width |
Maximum width 1320 mm |
| Developer |
Developing gum |
| Length of Run |
Unbaked: 200,000 impressions;
Baked: 500,000 impressions(dependent upon image resolution, press,
press chemical, ink and paper conditions) |
| Plate setters Capability |
All the main brands violet CTP in market, laser power no less than 30 mw |
| Aluminum |
Standard 1050 Alloy |
| Exposure energy |
50-60 μj/ cm²(based on plate setter and developing condition) |
| Developing time |
20±3 sec |
| Developing Temperature |
28±2 ºC |
| Spectral Sensitivity |
405 nm |
| Resolution |
150lpi (2-98%), under 1800dpi, 25μm line can be produced. |
| Preheat |
95-121 ºC |
| Brush Speed |
100 rpm |
| Shelf life |
12 months under recommended storage conditions |
| Storage and handling |
Store plates flat in their packaging, away from excessive cold, heat or high humidity.
Recommended condition is: temperature 15-28ºC and RH between 30-70%;
Handle with care, the maximum height is 1.2m'
Open the box under the yellow light. Sealed the box with remained plate to avoid moisture. |
Features
Eco-Friendly: Utilizes a low pH finisher during washout treatment, reducing chemical consumption and liquid waste.
Stable Developing Performance: Compatible with most brands of violet plate developers and less sensitive to the pH value of the finisher.
Lower Investment and Maintenance Cost: Compatible with simplified processors, eliminating prewash, post-rinse, and gumming steps from conventional processors.
Higher Run Length: Features an outer protective layer that shields the sensitive layer from damage, resulting in more impressions per plate.
