Name: Super Long Run Length Double Layer Positive Thermal CTP Plate
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-TSR
Price: 34.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Double Layer Positive Thermal CTP Plate

Application: Commercial Packaging Or Newspaper Printing

Thickness: 0.15, 0.20, 0.25, 0.30, 0.40(mm)

Length Of Press Runs: 200,000 To 400,000 Impressions Unbaked

Exposure Energy: 120 - 150 Mj/square Centimeters

Spectral Sensitivity: 800-850 Nm-Peaks 830nm

Safelight: Daylight Handling

Shelf Life: 12 Months Under Recommended Storage Conditions

Highlight:

Super Long Run Length CTP Plate

Double Layer Positive Thermal CTP Plate

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: CE; ISO

Model Number: ECOO-TSR

Payment & Shipping Terms

Packaging Details: Standard Exporting Package

Delivery Time: 20-30 days

Payment Terms: L/C, T/T

Supply Ability: 500,000sqm per year

Gallery

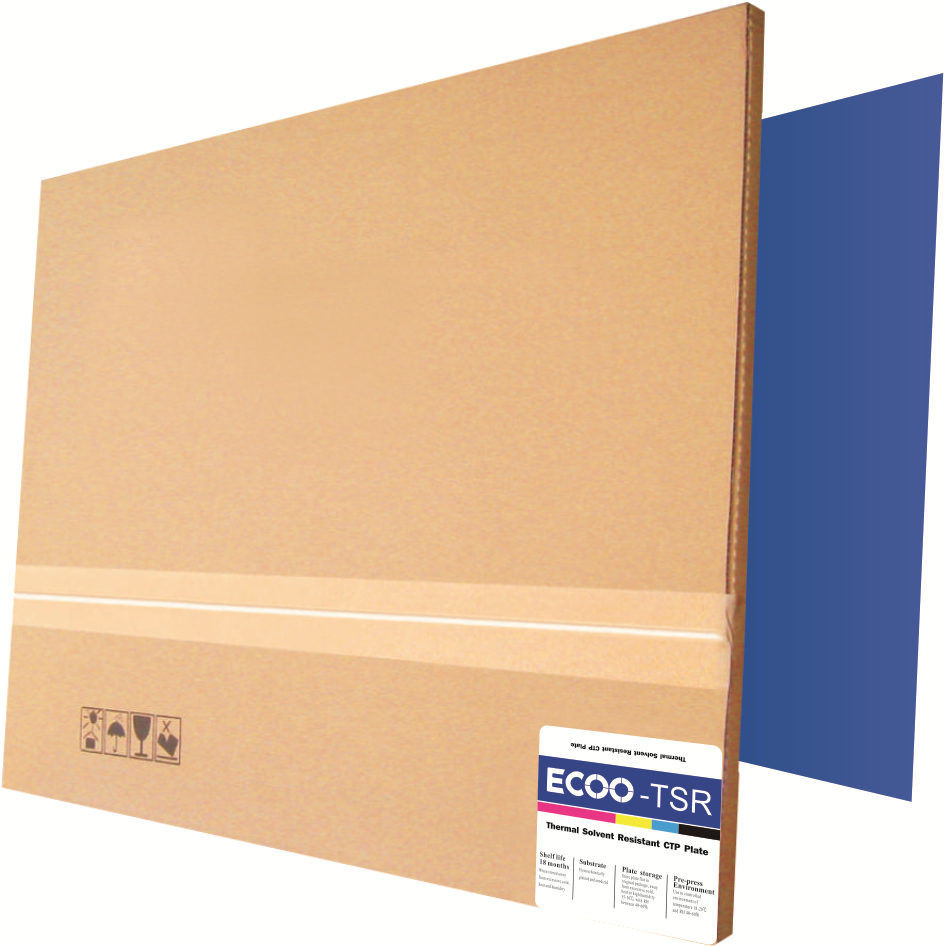

Super Long Run Length Double Layer Positive Thermal CTP Plate

Product Description

Super Long Run Length Double Layer Positive Thermal CTP Plate

Model: ECOO-TSR

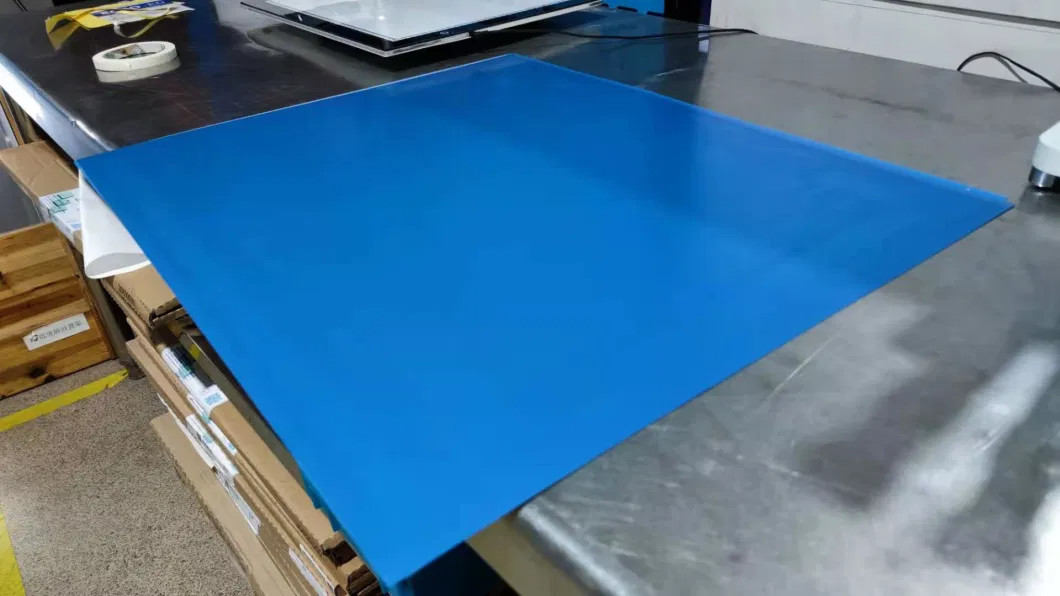

Super Long Run Length Double Layer Positive Thermal CTP Plate 0

Product Description:

Application:
EcooGraphix ECOO-TSR Thermal Solvent Resistance CTP plate can be used for long runs high grade offset commercial, packaging or newspaper printing. It is compatible with ordinary ink and UV ink.

Characteristic:
-Through a newly developed two-layer coating technology, ECOO-TSR plate bringsexceptional quality and long run press performance without the need for post baking.

-lt delivers high resolution and precise tone reproduction in the most demanding pressconditions, such as UV ink and alcohol substitute founts.
-The state of the art technology also provides wide processing latitude to achieve excellent stability and FM imaging capability.

Super Long Run Length Double Layer Positive Thermal CTP Plate 1

Specification:

General Information
Plate Model	ECOO-TSR
Plate Type	Positive Working Thermal CTP Plate(Double Layer)
Application	High grade offset commercial ,packaging or newspaper printing
Substrate	Electro chemically Grained and Anodized lithographic Aluminum
Plate Thickness	0.15, 0.20, 0.25, 0.30, 0.40 (mm)
Maximum short grain width	Maximum width 1325 mm
Plate intermix	Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Press Runs	Ordinary Ink: 200,000 to 400,000 impressions unbaked; UV Ink: 50,000 to 100,000 impressions
Exposing
CTP Plate Making Machine	Kodak: Trendsetter/Lotem/Magnus; Fuji: Javelin T9000HS
Plate setters	Heidelberg: Top setter/Supra setter; Luscher: Xpos; Screen: PT-R; Creo: Scitex; EcooGraphix Thermal CTP Tseries
Exposure energy	120 - 150 mj/cm²
Spectral Sensitivity	800-850 nm - Peaks 830nm
Resolution	1-99% at 400 LPI or FM 10 micron stochastic
Image color	Blue
Developing
Developer	Kodak Gold Star or EcooGraphix DV-T developer
Processing temperature	25°C +/- 3°C
Developing time	25+/- 5 sec
Processing Speed	0.80 - 1.20 m/min
Storage and handling
Safelight	Daylight handling
Shelf Life	12 months under recommended storage conditions
Storage and handling	Stored in a cool and dry environment, away from excessive cold, heat and humidity.

Super Long Run Length Double Layer Positive Thermal CTP Plate 2

FAQ:

Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q3: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
