Double Layered Thermal CTP Plate For Packaging Printing

Double Coating Thermal CTP Plate for UV Ink Offset Printing

Model: ECOO-TSR


Brief introduction

Features

1. Super long running length

- Ensures extended use without compromising quality.

2. workable with UV ink

- Suitable for printing with UV inks, providing flexibility in ink choice.

3. solvent resistant

- Offers high resistance to solvents, enhancing durability and performance.

Application

The ECOO-TSR plate is ideal for commercial printing, newspaper printing, and package printing. Its robust design and compatibility with various inks make it an excellent choice for customers seeking a reliable and high-performing thermal CTP plate.

Specification

Plate Type:
Positive Working Thermal CTP Plate(Double Layer)

Application:
High-grade offset commercial, packaging, or newspaper printing

Substrate:
Electro chemically Grained and Anodized lithographic Aluminum

Plate Thickness:
0.15,0.20, 0.25,0.30, 0.40 (mm)

Maximum short grain width:
Maximum width 1325 mm

Length of Press Runs:
Ordinary Ink: 200,000 to 400,000 impressions unbaked
UV Ink: 50,000 to 100,000 impressions

Exposure energy:
120 - 150 mj/cm²

Spectral Sensitivity:
800-850 nm - Peaks 830nm

Resolution:
1-99% at 400 LPI or FM 10 micron stochastic

Safelight:
Daylight handling

Shelf Life:
12 months under recommended storage conditions

Storage and handling:
Stored in a cool and dry environment, away from excessive cold, heat, and humidity.

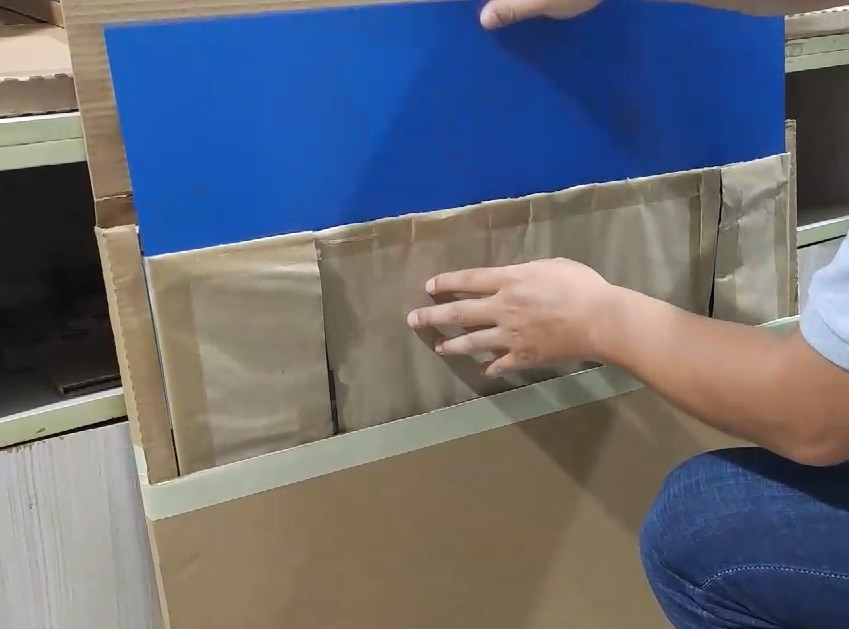

Producing and Packing

---



We meticulously attend to every detail from production to delivery, ensuring superior product quality and exceptional service for our customers.















More Details

---











FAQ

---



Q1: Can I get the sample?

A: We are very glad to provide some samples for you to test. We usually provide 5-15 pieces of plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.





Q2: What is the cost for the CTP plate sample freight?

A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
