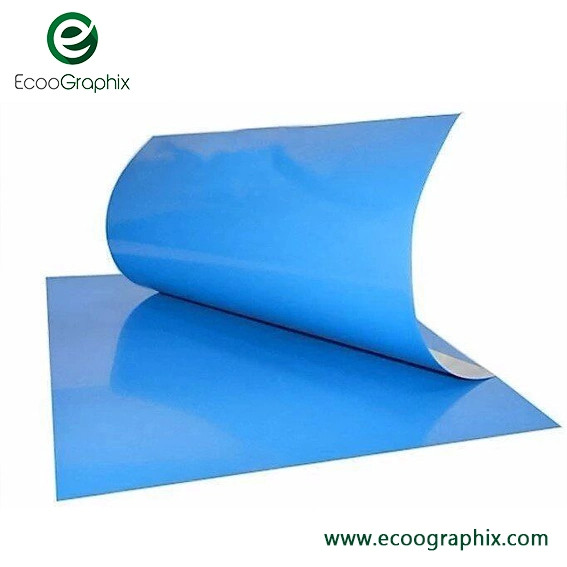

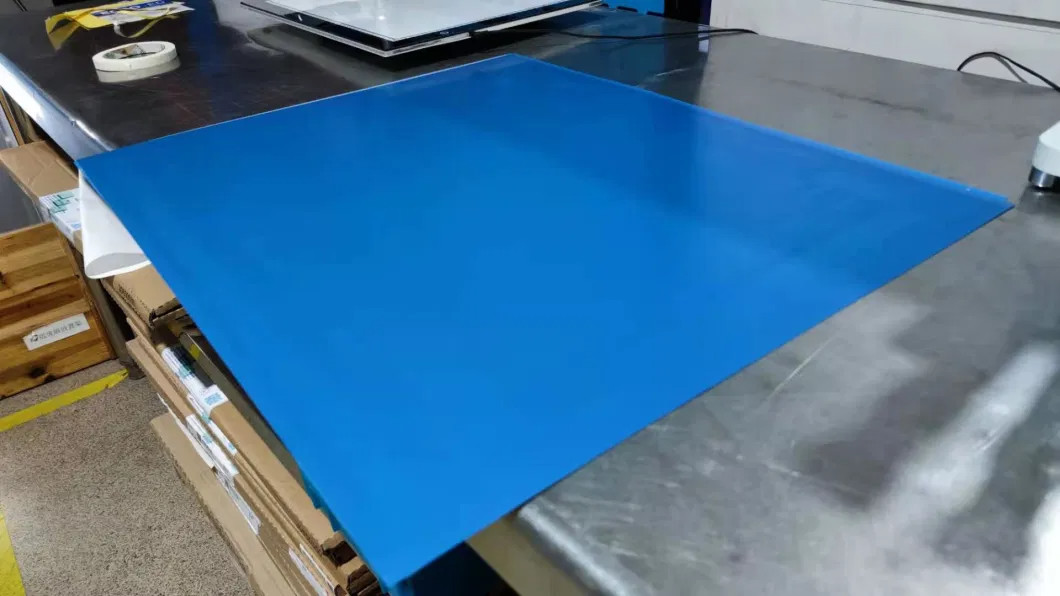

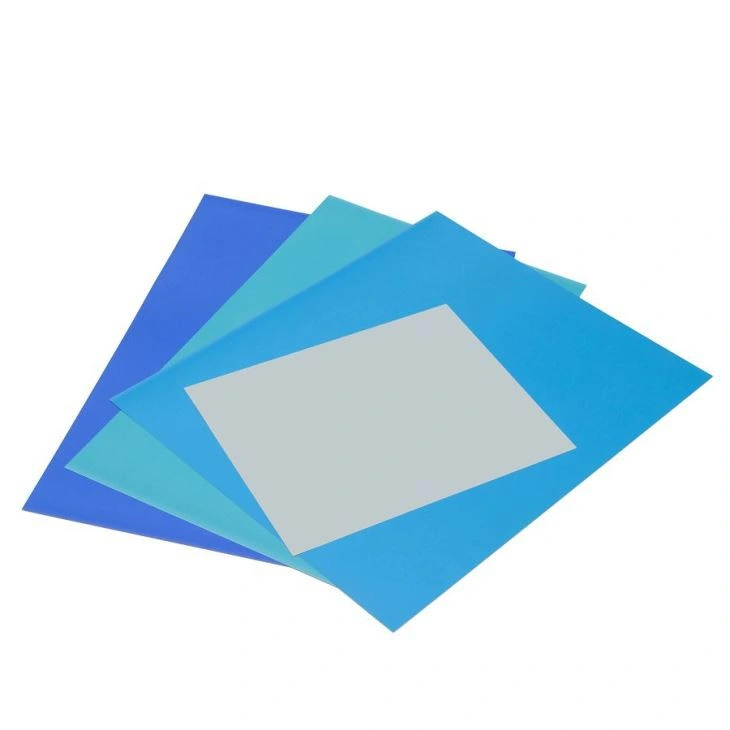

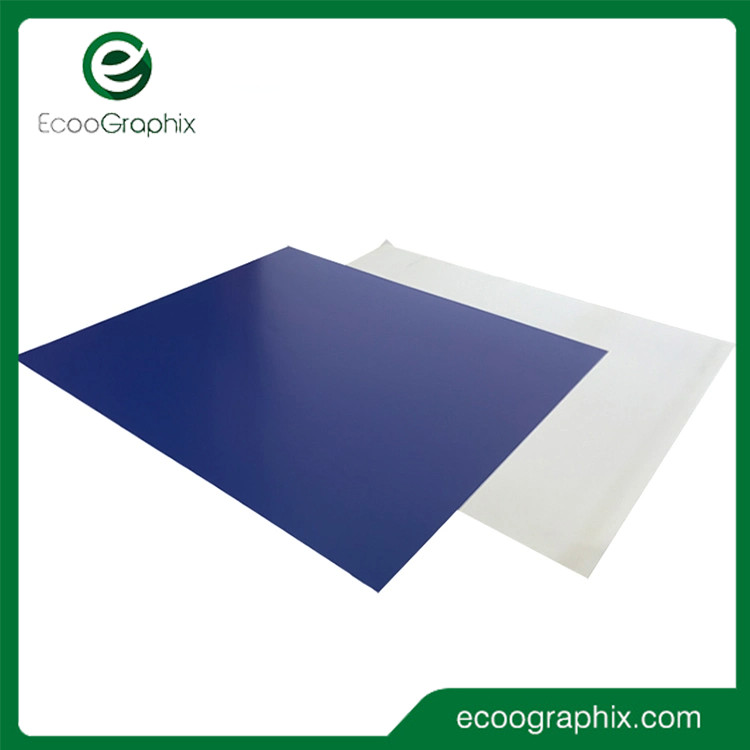

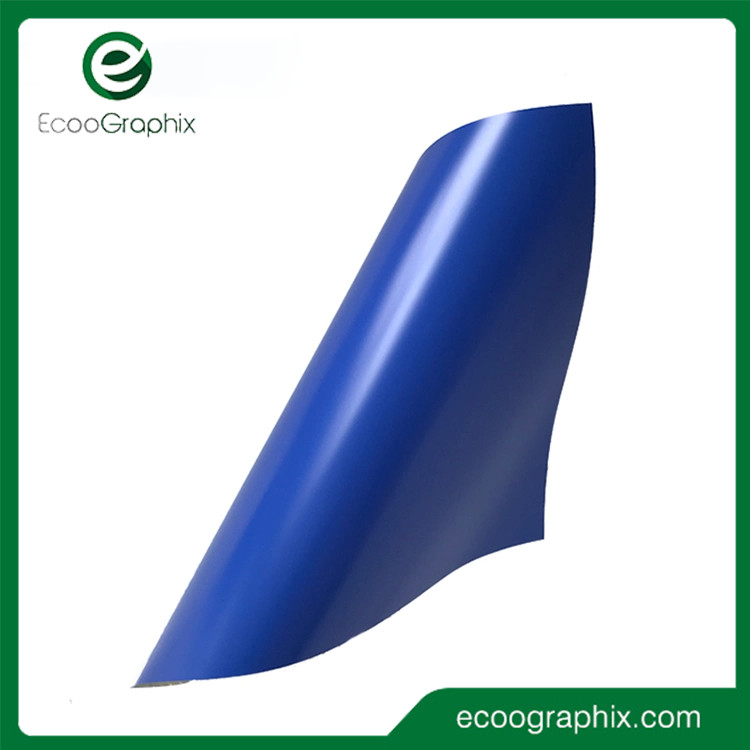

Ecoo-CTCP-ES Single Layer Ctcp UV CTP Plate for Offset Printing

EcooGraphix CTCP Plate can be used for long runs high grade commercial and newspaper printing



ECOO-CTCP-ES plate is uniquely designed for UV-sensitive emulsion coating for UV-CTP plate setters. A great transformation from the traditional PS plate, CTCP is more cost-effective without the films and rinsing materials required.

It allows the printers to fully perform the advantages of PS plate without worrying about losing the image quality during plate making. In addition, CTCP saves the time for hand-imposition.



Specification

General Information
Plate Model	ECOO-CTCP-ES
Plate Type	Positive CTCP Plate(Single Layer)
Application	High-quality commercial and newspaper printing
Substrate	Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy	Standard 1050 Alloy
Gauge	0.15,0.20,0.25,0.30, 0.40 (mm)
Maximum short grain width	Maximum width 1280 mm
Length of Run	Unbaked: 80000 to 100,000 impressions; Baked: Over 100000 impressions
Exposing
Plate setters	Luscher , Basysprint, Cron, EcooGraphix UV series CTCP machine
Exposure energy	50 - 70 mJ/cm²
Spectral Sensitivity	400 - 430 nm - UV Laser
Resolution	2 - 99% LPI 200
Coating	Blue
Photosensitive Wave Length	405nm
Developing
Processor	All the kinds of Brands.
Developer	Any CTCP plate developer or our developer
Processing temperature	23°C +/- 2°C
Developing time	25 - 30 sec
Processing Speed	0.80 - 1.20 m/min
Storage and handling
Safelight	Handle under yellow safelight (UV free)
Shelf Life	12 months under recommended storage conditions

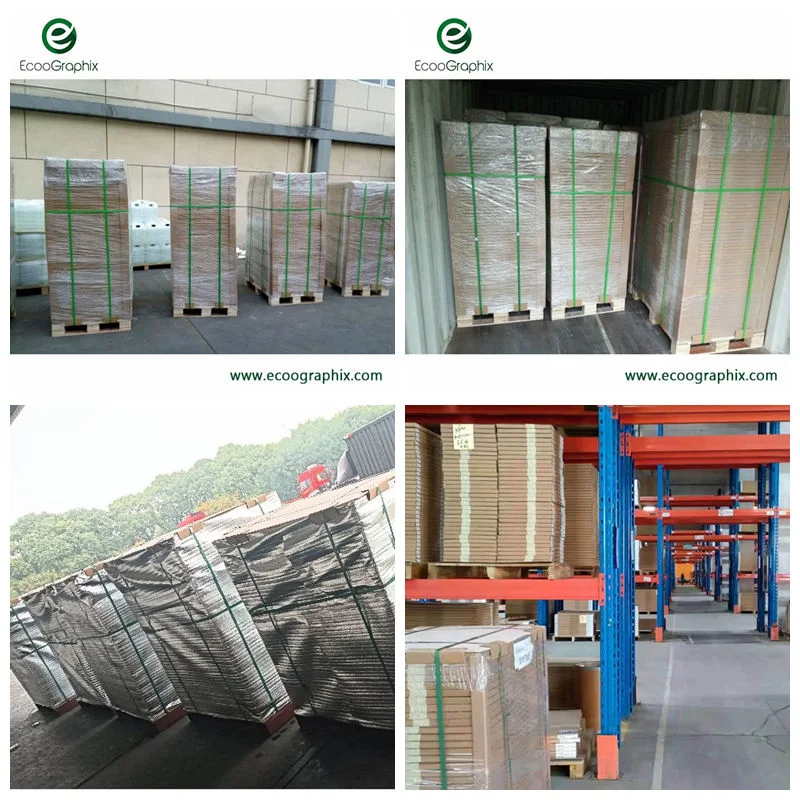

Packaging	Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling	Stored in a cool and dry environment, away from excessive cold, heat and humidity

Q1: Can I get the sample?
A: We are very glad to provide some samples for you to test. We usually provide 5-15 pieces of plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3 days to prepare the sample.

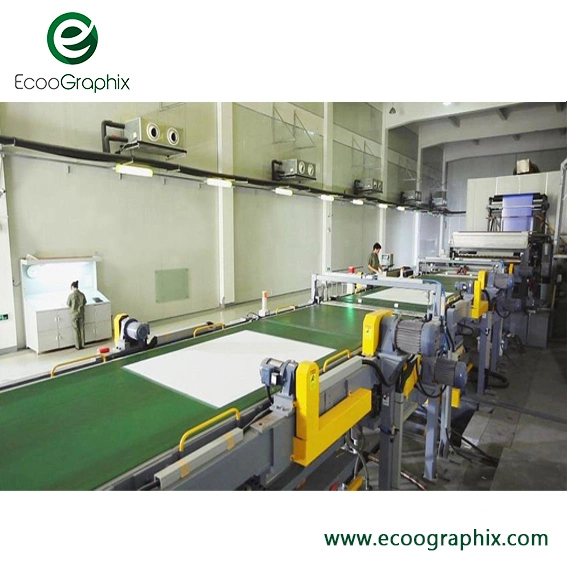

Q4: Can I visit your factory?

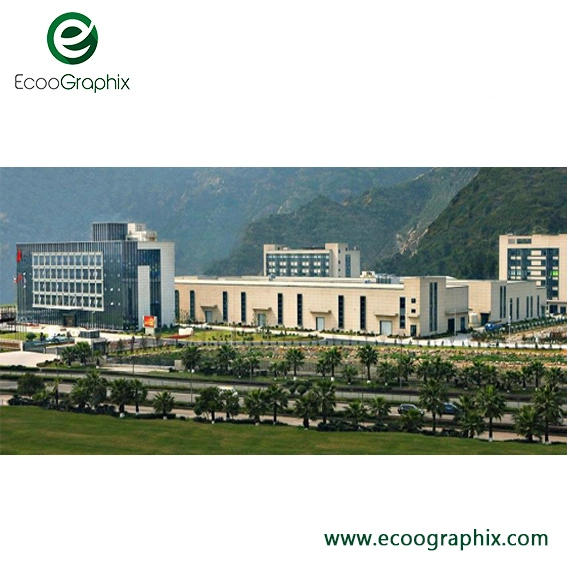

A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
