400, 000 Impressions Positive Writing Thermal CTP Printing Plates Double Layers

1000 Square Meters
MOQ
Negotiable
Price
400, 000 Impressions Positive Writing Thermal CTP Printing Plates Double Layers
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Type: CTP Printing Plate
Application: Commercial, Newspaper And Package Printing
Exposure Energy: 120 - 150 Mj/Square Centimeter
Length Of Run (Unbaked): 400, 000 Impressions
Length Of Run (UV Ink): 100, 000 Impressions
Processing Speed: 0.80 - 1.20 M/Min
Coating Color: Blue
Developer: ECOO DV-T Series Developer
Highlight:

double-layer CTP printing plates

,

thermal CTP plates 400K impressions

,

positive writing printing plates
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-TSR
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 2,000,000 Sqm Per Year
Product Description

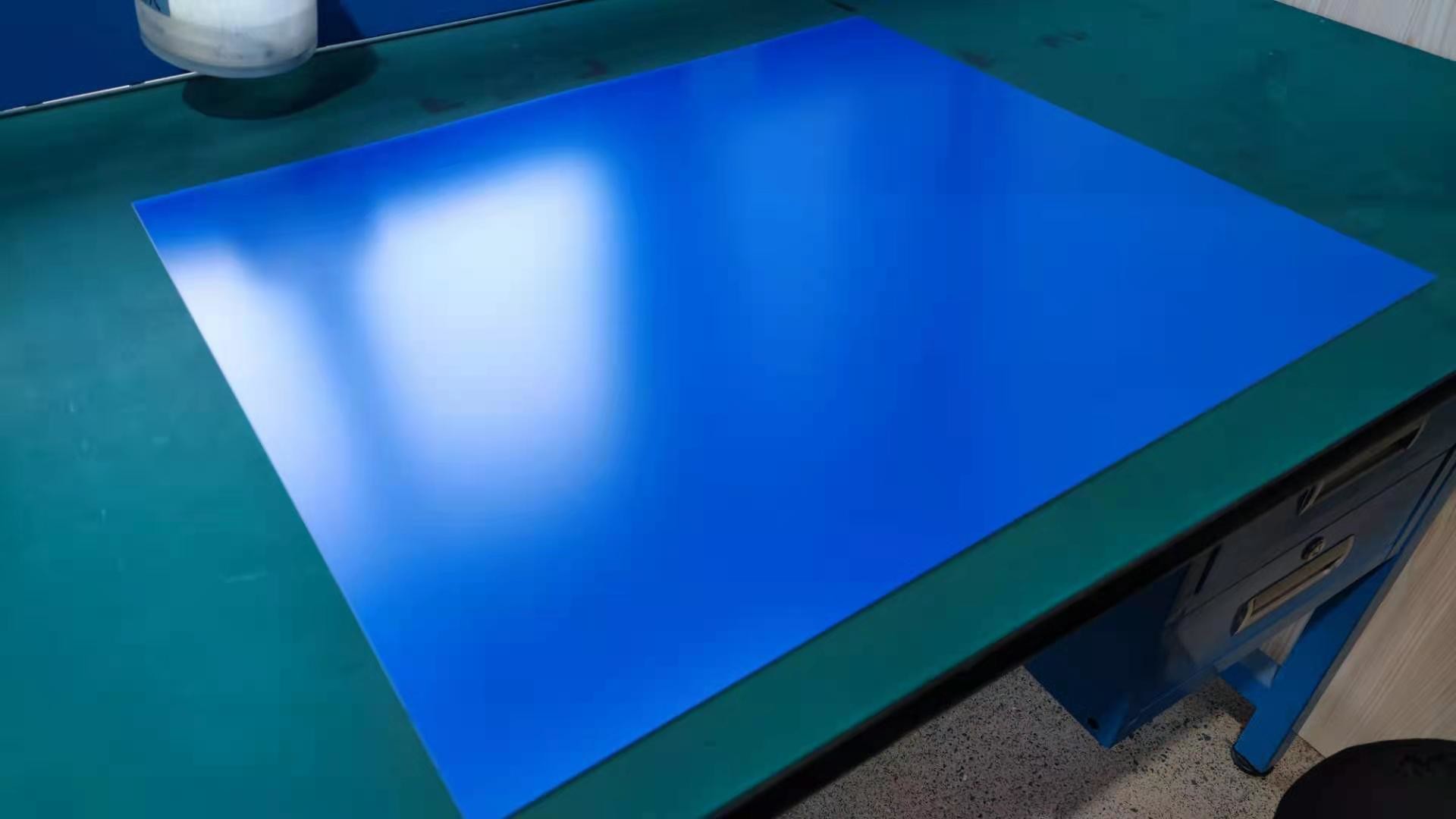

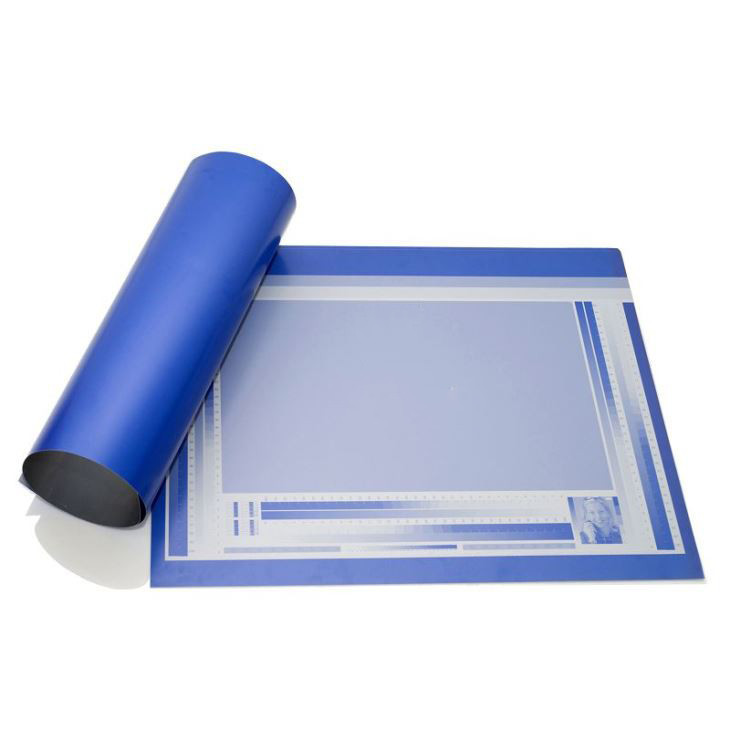

Double Layers Positive Writing Thermal CTP Aluminum Plate
Application

EcooGraphix Thermal Solvent Resistance CTP plate can be used for long-run high-grade commercial and newspaper printing. It can also be used for UV ink printing with perfect performance.

Specifications
ModelECOO-TSR
Plate TypePositive Thermal Digital Plate
ApplicationCommercial, newspaper, and package printing
SubstrateElectrochemically-grained and Anodized lithographic aluminum
Gauge0.15, 0.20, 0.24, 0.30, 0.40(mm)
Maximum short grain widthMaximum width 1280 mm
CoatingBlue
Length of RunUnbaked: 400,000 impressions
UV Ink: 100,000 impressions
Plate settersAll thermal CTP machine
AluminumStandard 1050 Alloy
Exposure energy120 - 150 mj/cm²
Developing time25 - 30 sec
Spectral sensitivity780 - 850 nm
Resolution1-99% @ 400LPI
DeveloperECOO DV-T Series Developer
Processing temperature23ºC +/- 2ºC
Processing speed0.80 - 1.20 m/min
SafelightDaylight handling
Shelf life12 months under recommended storage conditions
PackagingAvailable in all standard formats, including bulk packaging options such as APL packaging
Storage and handlingStored in a cool and dry environment, away from excessive cold, heat and humidity
Characteristic
Features
  • Positive writing thermal plate
  • Double-layer system
  • Made with a high-grade aluminum base
  • Wide adaptability for different plate setter brands
  • Non-ablative coating
  • Run lengths up to 150,000 impressions
  • UV Ink up to 80,000 impressions
  • Ability to print both AM and FM screening
Benefits
  • Extensive adaptability, saving from waste during a possible sudden supply of consumables
  • Quick turnaround time on press
  • Compatible with common developers
  • Premium quality of dot reproduction and super long run length
