Name: Highly Sensitive EcooGraphix CTP Plate with Excellent Half Tone Dot Reproduction
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-CTCP-ES
Price: 34.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Positive Ctcp/UV CTP Plate

Application: High Quality Commercial And Newspaper Printing

Plate Type: Positive CTCP Plate(Single Layer)

Exposure Energy: 50 - 70 MJ/cm²

Spectral Sensitivity: 400 - 430 Nm – UV Laser

Material: Electro Chemically Grained And Anodized Lithographic Aluminum

Substrate: Electro Chemically Grained And Anodized Lithographic Aluminum

Gauge: 0.15,0.20, 0.25,0.30, 0.40 (mm

Maximum Short Grain Width: Maximum Width 1280 Mm

Length Of Run: Unbaked: 80000 To 100,000 Impressions

Resolution: 2 - 99% LPI 200

Highlight:

Highly Sensitive CTP Plate

EcooGraphix CTP Plate

Basic Infomation

Place of Origin: CHINA

Brand Name: EcooGraphix

Certification: CE, ISO900

Model Number: ECOO-CTCP-ES

Payment & Shipping Terms

Packaging Details: Standard Exporting Wooden Pallet

Delivery Time: 30 DAYS

Payment Terms: L/C, T/T

Supply Ability: 2000, 000sqm/Year

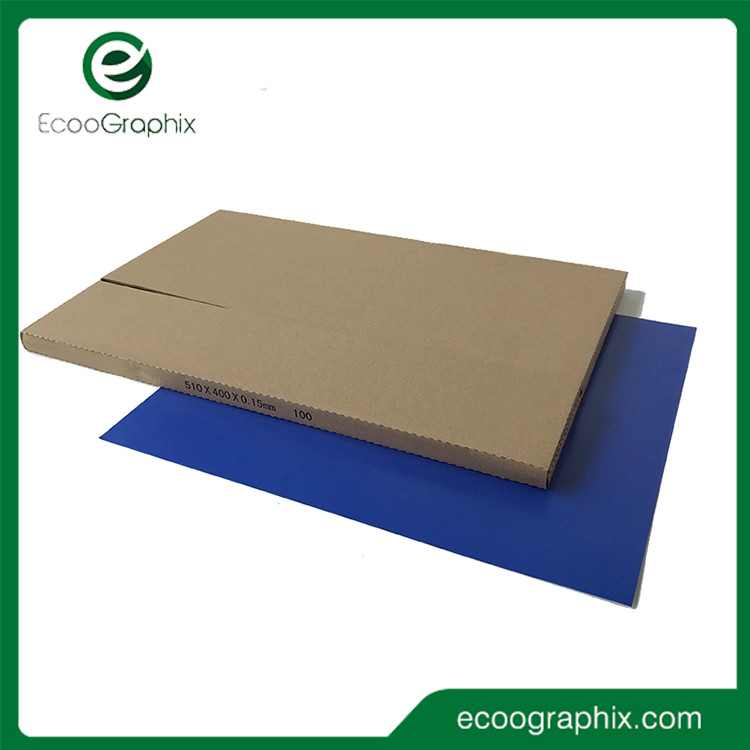

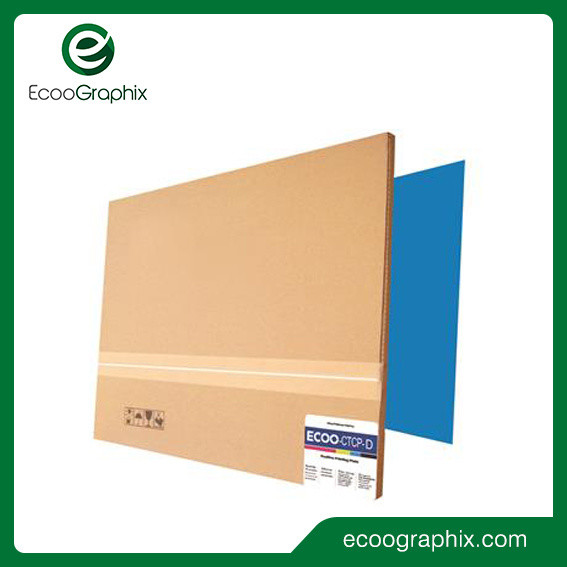

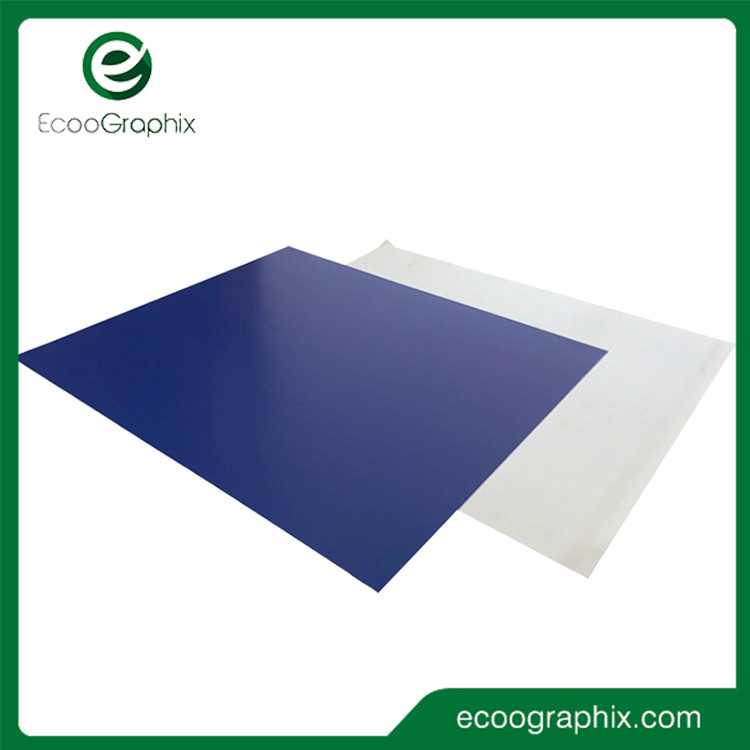

Gallery

Highly Sensitive EcooGraphix CTP Plate with Excellent Half Tone Dot Reproduction

Product Description

Positive Ctcp/UV CTP Plate ECOO-CTCP-ES

Brief Introduction:

EcooGraphix CTCP Plate is designed for long-run, high-grade commercial, and newspaper printing. Our unique production technology and high-quality materials ensure high photosensitive speed, excellent half-tone dot reproduction, and stable performance.

Characteristics:

1) High-quality aluminum and photosensitive coating.

2) Multi-layer composite grain structure.

3) Precise half-tone dot reproduction.

4) High development tolerance level and convenient operation.

Specification

General Information
Plate Model	ECOO-CTCP-ES
Plate Type	Positive CTCP Plate(Single Layer)
Application	High-quality commercial and newspaper printing
Substrate	Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy	Standard 1050 Alloy
Gauge	0.15,0.20,0.25,0.30,0.40 (mm)
Maximum short grain width	Maximum width 1280 mm
Length of Run	Unbaked: 80000 to 100,000 impressions; Baked: Over 100000 impressions
Exposing
Plate setters	Luscher , Basysprint, Cron, EcooGraphix UV series CTCP machine
Exposure energy	50 - 70 mJ/cm²
Spectral Sensitivity	400 - 430 nm - UV Laser
Resolution	2 - 99% LPI 200
Coating	Blue
Photosensitive Wave Length	405nm
Developing
Processor	All kinds of Brands.
Developer	Any CTCP plate developer or our developer
Processing temperature	23°C +/- 2°C
Developing time	25 - 30 sec
Processing Speed	0.80 - 1.20 m/min
Storage and handling
Safelight	Handle under yellow safelight (UV free)
Shelf Life	12 months under recommended storage conditions
Packaging	Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling	Stored in a cool and dry environment, away from excessive cold, heat and humidity
