Name: Single Layer CTP Thermal Plate For UV Plate Setter
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-CTCP-ES
Price: 34.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Plate Type: CTCP Plate

Processing Speed: 0.8-1.2 Meter/Min

Length Of Run: Unbaked: 80,000 To 100,000 Impressions; Baked: Over 100,000 Impressions

Plate Setters: Luscher, Basysprint, Cron, EcooGraphix

Exposure Energy: 50-70 Mj/cm²

Resolution: 2-99% At 200 Lpi

Substrate: Electro Chemically Grained And Anodized Lithographic Aluminum

Developing Time: 25-30 Sec

Highlight:

UV Plate Setter CTP Thermal Plate

UV CTP Thermal Plate

Single Layer CTP Thermal Plate

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-CTCP-ES

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 30 Days

Payment Terms: L/C, T/T

Supply Ability: 2,000,000 Sqm Per Year

Gallery

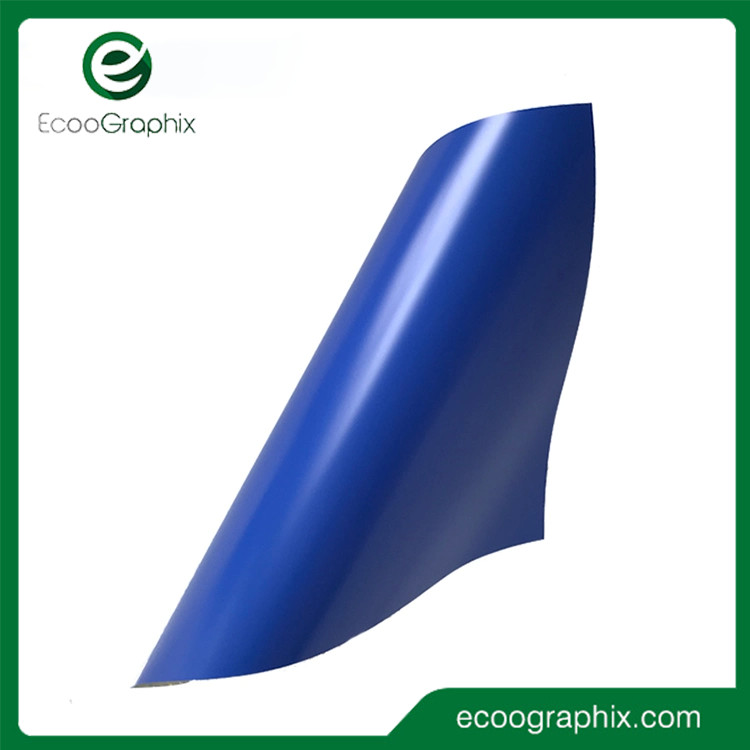

Single Layer CTP Thermal Plate For UV Plate Setter

Product Description

Economic Single Layer CTCP Offset Printing Plate For UV PlateSetter

▽Application:

EcooGraphix CTCP Plate can be used for long runs high grade commercial and newspaper printing. Unique production technology and high quality raw materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.

▽Features:

1) Long run length:
Impressions without baking: 80,000-100,000
Impressions with baking: over 100,000

2) Resolution: 2-99% @ 200lpi

3) Exposure energy: 50-70mj/cm²

▽Specifications:

General Information
Plate Model ECOO-CTCP-ES
Plate Type Positive CTCP Plate (Single Layer)
Application High quality commercial and newspaper printing
Substrate    Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy Standard 1,050 Alloy
Gauge    0.15, 0.20, 0.25, 0.30, 0.40 mm
Maximum short grain width Maximum width 1,280 mm
Length of Run    Unbaked: 80,000 to 100,000 impressions; Baked: Over 100,000 impressions

Exposing
Plate setters    Luscher, Basysprint, Cron, EcooGraphix UV series CTCP machine
Exposure energy    50 - 70 mj/cm²
Spectral Sensitivity   400 - 430 nm - UV Laser
Resolution 2 - 99% @ LPI 200
Photosensitive Wave Length    405nm
Coating    Light Blue

Developing
Processor   All the kind brands.
Developer   Any CTCP plate developer or our own developer
Processing temperature 23°C +/- 2°C
Developing time    25 - 30 sec
Processing Speed 0.80 - 1.20 m/min

Storage And Handling
Safelight   Handle under yellow safelight (UV free)
Shelf Life    12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling Stored in a cool and dry environment, away from excessive cold, heat and humidity.

General Information
Plate Model	ECOO-CTCP-ES
Plate Type	Positive CTCP Plate (Single Layer)
Application	High quality commercial and newspaper printing
Substrate	Electro Chemically Grained and Anodized Lithographic Aluminum
Aluminum alloy	Standard 1,050 Alloy
Gauge	0.15, 0.20, 0.25, 0.30, 0.40 mm
Maximum short grain width	Maximum width 1280 mm
Length of Run	Unbaked: 80,000 to 100,000 impressions Baked: Over 100,000 impressions

Exposing
Plate setters	Luscher, Basysprint, Cron, EcooGraphix UV series CTCP machine
Exposure energy	50 - 70 mj/m²
Spectral Sensitivity	400 - 430 nm - UV Laser
Resolution	2 - 99% @ LPI 200
Photosensitive Wave Length	405nm
Coating	Blue

Developing
Processor	All the kind Brands.
Developer	Any CTCP plate developer or our own developer
Processing temperature	23°C +/- 2°C
Developing time	25 - 30 sec
Processing Speed	0.80 - 1.20 m/min

Storage And Handling
Safelight	Handle under yellow safelight (UV free)
Shelf Life	12 months under recommended storage conditions
Packaging	Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling	Stored in a cool and dry environment, away from excessive cold, heat and humidity.

▽Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

▽Certificates

▽FAQ

Q1: Can I get the sample ?

A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight ?

A: The air freight depends on the packing size, weight and the delivery destination. Or you can arrange the pick-up service from your local agent.

Q3: How long can the sample be ready ?

A: It usually takes about 3 days to prepare the sample.

Q4: Can I visit your factory ?

A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.

Q5: How many square meters CTP plates can feed one 20' container ?

A: About 20,000-25,000sqm.

Q6: Can I take my own brand and label on the packing ?

A: Yes, we can provide the OEM with the customer's brand and label.
