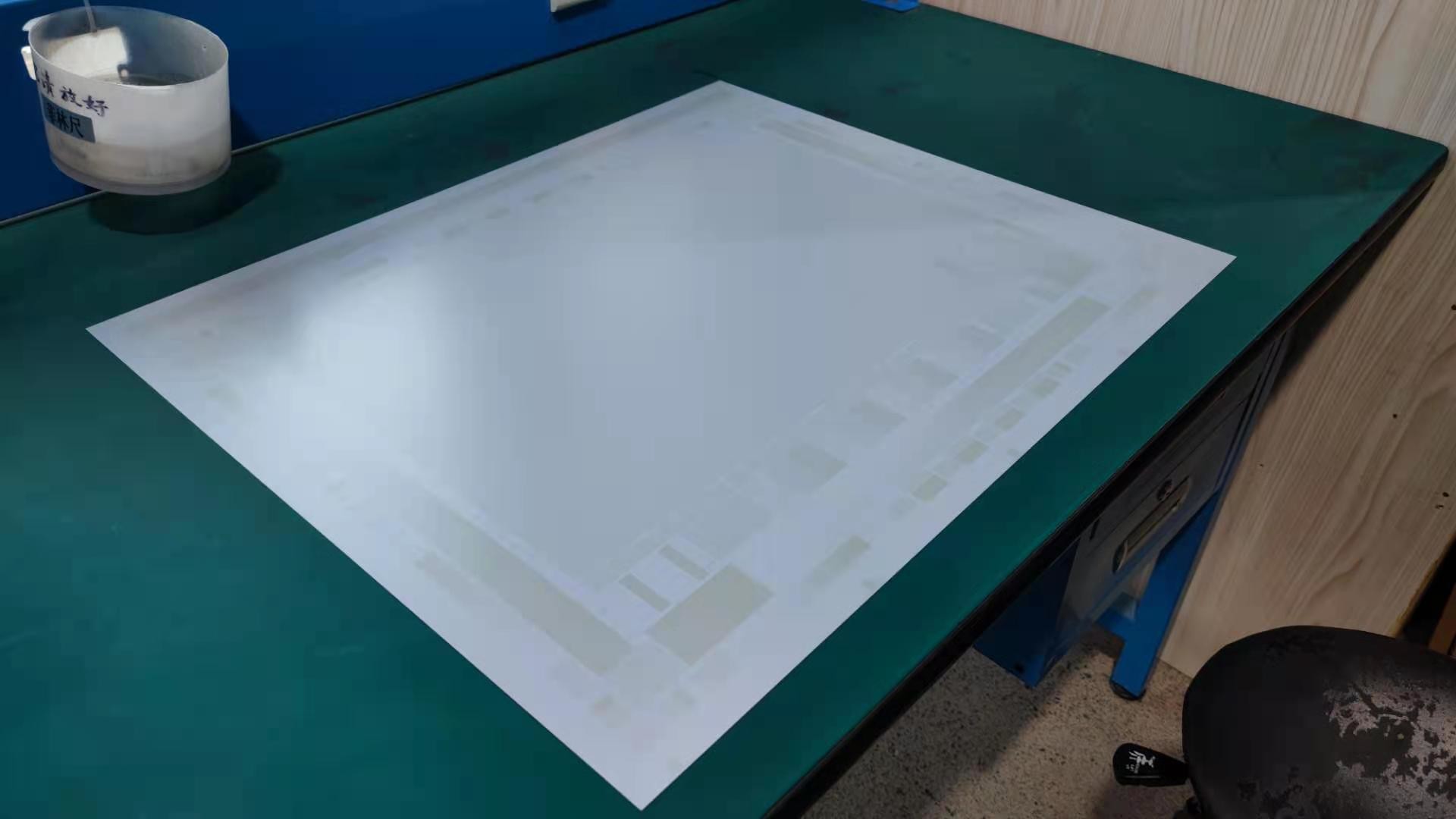

0.15mm / 0.30mm Processless Thermal Plates Eco-Friendly for Offset Printing

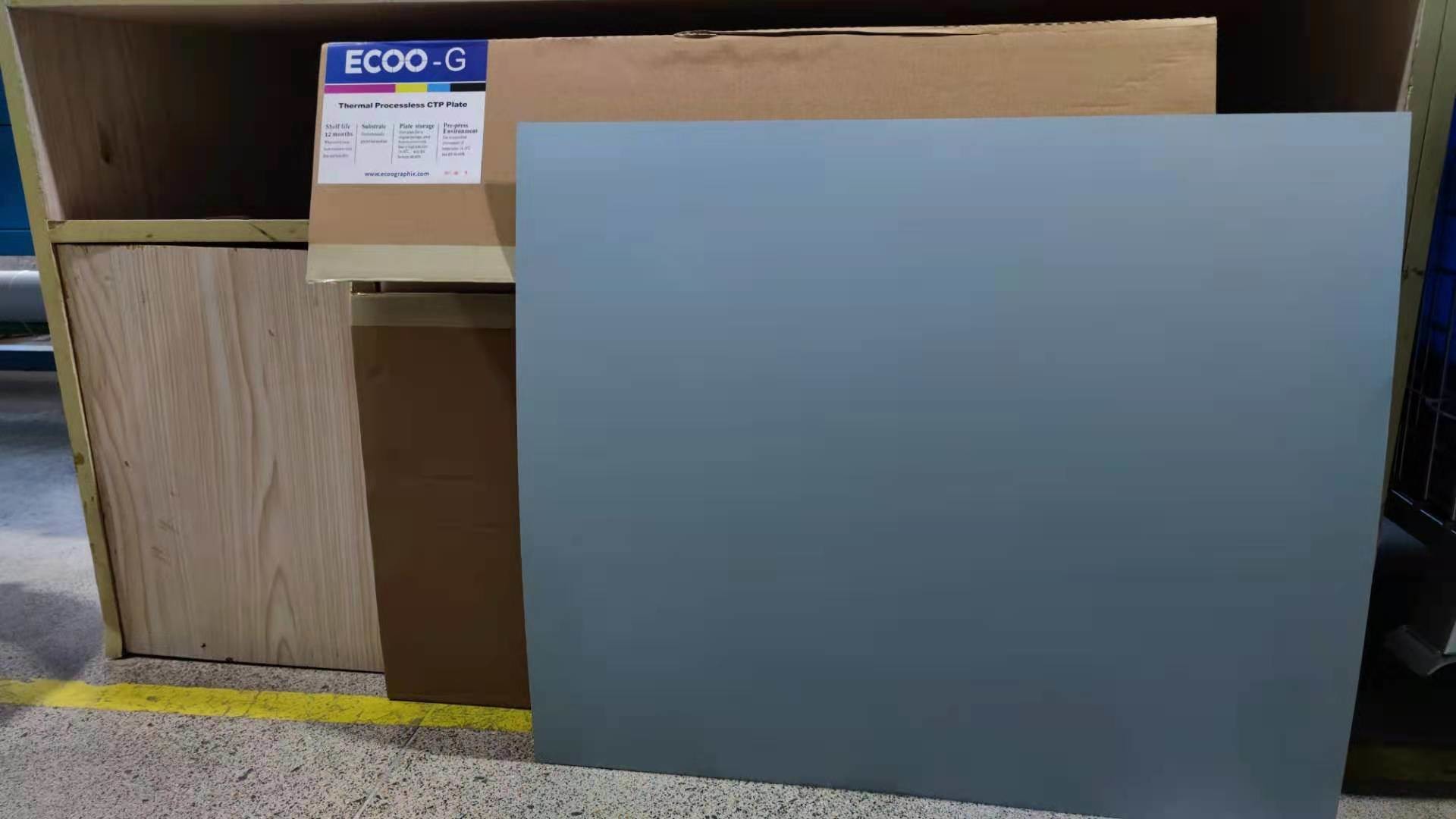

Model: ECOO-G Processless (process-free)



Introducing the ECOO-G Thermal Plate, an environmentally friendly processless printing solution:



- Directly runs on press machines after CTP exposing, eliminating the need for chemical processing.

- Saves costs associated with labor, water treatment, and developer tank maintenance.

- Chemically free and environmentally friendly, akin to Sonora XP and Agfa Azura plates!

Product Description

Characteristics



- Utilizes a negative non-ablation photosensitive system.

- Compatible with leading devices in the market.

- Supports direct printing on the machine without additional processing steps after scanning by thermal CTP platesetter.

- Offers excellent dot reproduction, stable performance, and wide processing latitude.

- Provides long stability of the latent image, allowing for storage of at least a week after plate-making.

- Features high-quality aluminum substrate and professional coating formulation.





Recommended Application Procedure for ECOO-G:



1. Clean all ink residues from the blanket thoroughly.



2. Start the press machine and engage the water roller, allowing it to run for 30-40 seconds.



3. Engage the ink rollers for 20-30 seconds.



4. Load the paper and commence printing.









Specification

---



Model	ECOO-G
Plate Type	Non-ablation thermal-negative type
Application	High-grade commercial and newspaper printing
Substrate	Electrolyte graining and Anodized AL substrate
Thickness	0.15mm / 0.30mm
Spectrum scope	800-850nm
Platesetter	Various dominant thermal platesetters in the market
Low-energy imaging	130-150 MJ/ m²
The period of latent image stabilization	≤7 days
Recommended screen method	1-99% @200 LPI AM or 20μm FM or mixture
The paper number of start-up	<50 sheets
Safety light	4 hours under yellow light; 1 hour under fluorescent lamp; Direct exposure under natural light is safe but not recommended.
Processing	Without processing, directly on the press
Run Length	100,000 impressions, actual run length depends on printing conditions
Baking	No recommended
Maximum short grain width	Maximum width 1280 mm
Photosensitive wavelength	830 nm
Coating color	Grey
Shelf life	12 months under recommended condition
Transportation	Packed in seal and stored using prevention from light, moisture, overheating, and high humidity
Storage	Recommended condition: 18ºC-24ºC, 40%-50% RH.





Workflow

Producing and Packing

More details

FAQ

Q1: Can I get a sample?
A: We are very glad to provide samples for you to test. We usually provide 5-15 pieces of plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3 days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
