0.15mm / 0.30mm Non Ablation UV Negative CTP Printing Plates for Commercial and Newspaper Printing

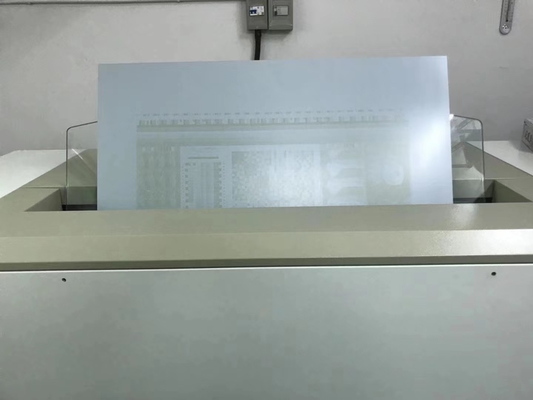

ECOO-H is our latest innovation. It can be exposed using a UV image-setter and applied directly on a printing machine without processing or developing. This plate helps you reduce costs, improve efficiency, and support green printing.

Popular in the USA and Canada, we invite more printing houses to try our free sample and experience its unique benefits.

Technical Data

Model
ECOO-H

Plate Type
Non-ablation UV-negative type

Application
High-grade commercial and newspaper printing

Substrate
Electrolyte graining and Anodized AL substrate

Thickness
0.15mm / 0.30mm

Maximum short grain width
Maximum width 1280 mm

Photosensitive wave length
405 nm

Platesetter
Various dominant UV platesetters in the market

Image color
Gray

Low-energy imaging
20 mj/ cm²

The period of latent image stabilization
≤7 days

Recommended screen method
1-99 @200 Lpi AM / 20u FM and mixture

The paper number of start-up
<50 sheets

Safety light
1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light

Processing
Without processing, directly on press

Run Length
100,000 impressions Actual run length depends on printing conditions

Shelf life
12 months under-recommended

​

Transportation
Sealed packaging, stored to prevent exposure to light, moisture, excessive heat, and high humidity.

Storage
Recommended condition: 18ºC~24ºC, 40%-50% RH

​

Advantages


• Negative Non-Ablation Photosensitive System: Ensures high-quality imaging.
• Market Compatibility: Works seamlessly with the dominant devices in the market.
• Direct Printing: Can be printed directly on the machine without any processing steps after scanning by a thermal CTP platesetter.
• Excellent Dot Reproduction: Provides stable performance and wide processing latitude.
• Long Latent Image Stability: Can be stored for at least a week after plate-making.
• High-Quality Aluminum Substrate: Combined with a professional coating formulation for superior results.
