Thermal Solvent-Resistant CTP Plate for Long-run Printing

1000 Square Meters
MOQ
Negotiable
Price
Thermal Solvent-Resistant CTP Plate for Long-run Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Type: CTP Printing Plate
Application: Commercial, Newspaper And Package Printing
Exposure Energy: 120 - 150 Mj/Square Centimeter
Length Of Run (Unbaked): 400, 000 Impressions
Length Of Run (UV Ink): 100, 000 Impressions
Processing Speed: 0.80 - 1.20 M/Min
Coating Color: Blue
Developer: ECOO DV-T Series Developer
Highlight:

Double Layers CTP Printing Plates

,

Positive Writing CTP Printing Plates

,

Thermal CTP Printing Plates
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-TSR
Document: ECOO-TSR.pdf
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C,T/T
Supply Ability: 2,000,000 Sqm Per Year
Product Description


Application

The EcooGraphix Thermal Solvent-Resistant CTP Plate is ideal for long-run, high-quality commercial and newspaper printing. It also delivers excellent performance with UV inks, ensuring consistent results across various printing applications.

Specification



Model ECOO-TSR
Plate Type Positive Thermal Digital Plate
Application Commercial, newspaper, and package printing
Substrate Electrochemically-grained and Anodized lithographic aluminum
Gauge 0.15, 0.20, 0.24, 0.30, 0.40(mm)
Maximum short grain width Maximum width 1280 mm
Coating Blue
Length of Run Unbaked: 400,000 impressions
UV Ink: 100,000 impressions
Plate setters All thermal CTP machine
Aluminum Standard 1050 Alloy
Exposure energy 120 - 150 mj/cm²
Developing time 25 - 30 sec
Spectral sensitivity 780 - 850 nm
Resolution 1-99% @ 400LPI
Developer ECOO DV-T Series Developer
Processing temperature 23ºC +/- 2ºC
Processing speed 0.80 - 1.20 m/min
Safelight Daylight handling
Shelf life 12 months under recommended storage conditions

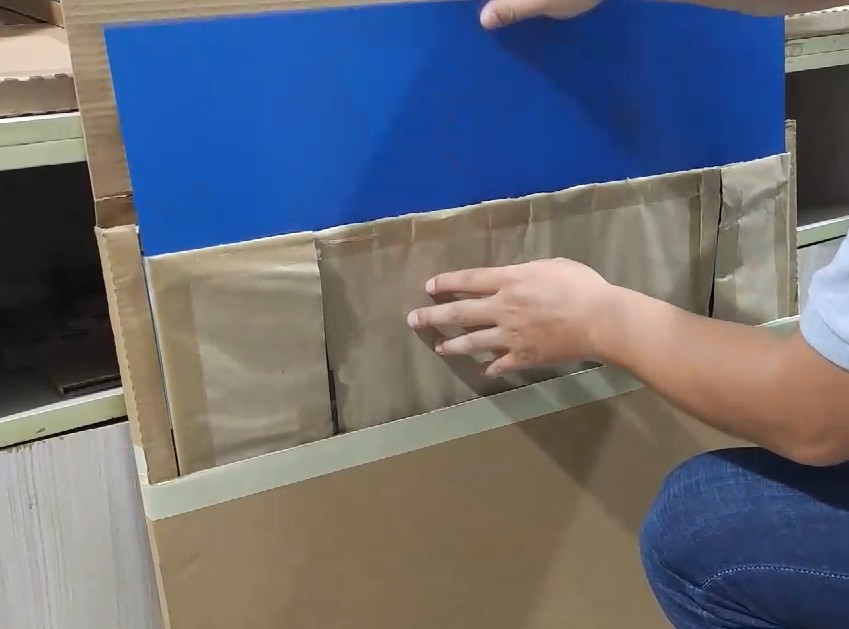

Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling Stored in a cool and dry environment, away from excessive cold, heat and humidity

​

Features

  • Positive-writing thermal plate with high photosensitivity

  • Dual-layer construction for enhanced durability

  • Premium European aluminum substrate for consistent quality

  • Wide compatibility with major platesetter brands

  • Non-ablative coating to maintain image integrity

  • Long run lengths: up to 150,000 impressions with conventional ink

  • UV ink run lengths: up to 80,000 impressions

  • Supports both AM and FM screening for versatile printing

Benefits

  • Broad adaptability reduces waste when switching consumables

  • Fast press setup for quick turnaround times

  • Compatible with standard developers for simplified workflow

  • High-quality dot reproduction ensures sharp, precise prints

  • Extended durability enables exceptionally long print runs
