Name: 0.15mm Conventional Aluminum CTP Positive PS Plate for Newspaper Printing
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-PS
Price: 34.35 USD
Availability: InStock

0.15mm Conventional Aluminum CTP Positive PS Plate for Newspaper Printing

1000 Square Meters

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Plate Type: Positive PS Plate

Resolution: 1-99% @ 300LPI

Length Of Run (Unbaked): 50,000 To 100,000 Impressions

Length Of Run (Baked): Over 100,000 Impressions

Gauges: 0.15mm, 0.20mm, 0.25mm, 0.30mm And 0.40mm

Developing Time: 20-30 Sec

Processing Speed: 0.80 - 1.20 M/min

Safelight: Handle Under Yellow Safe Light (UV Free)

Highlight:

0.15mm PS Plate

Newspaper Printing PS Plate

Aluminum CTP PS Plate

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-PS

Document: Positive PS Plate ECOO-PS-E...ix.pdf

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 30 Days

Payment Terms: L/C,T/T

Supply Ability: 2,000,000 Sqm Per Year

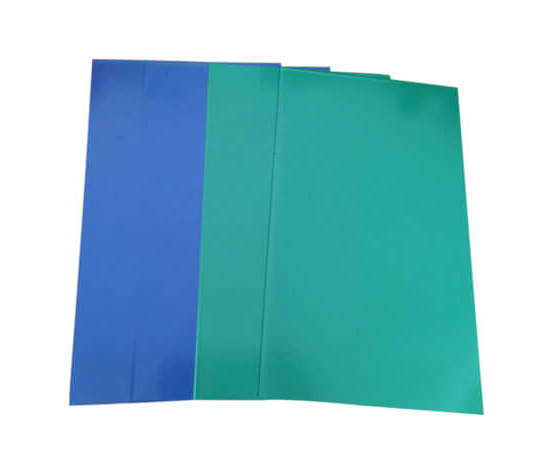

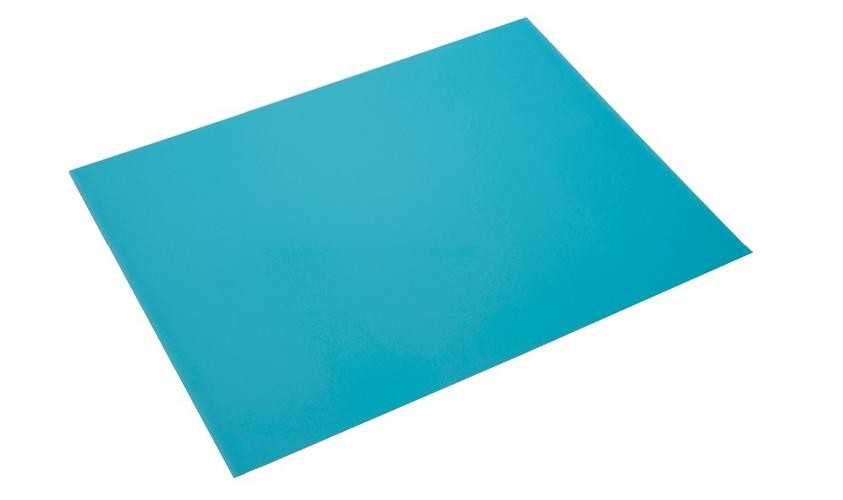

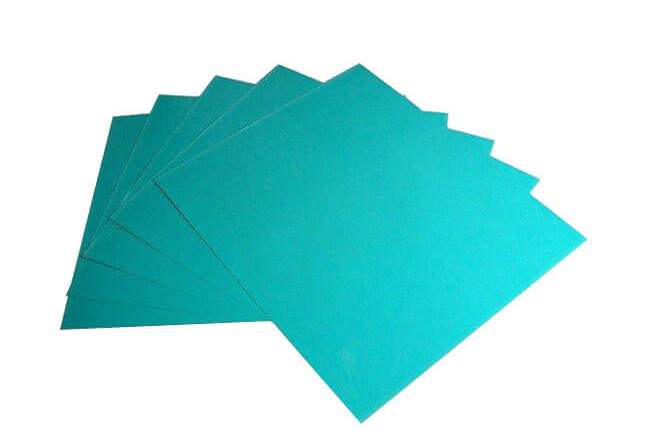

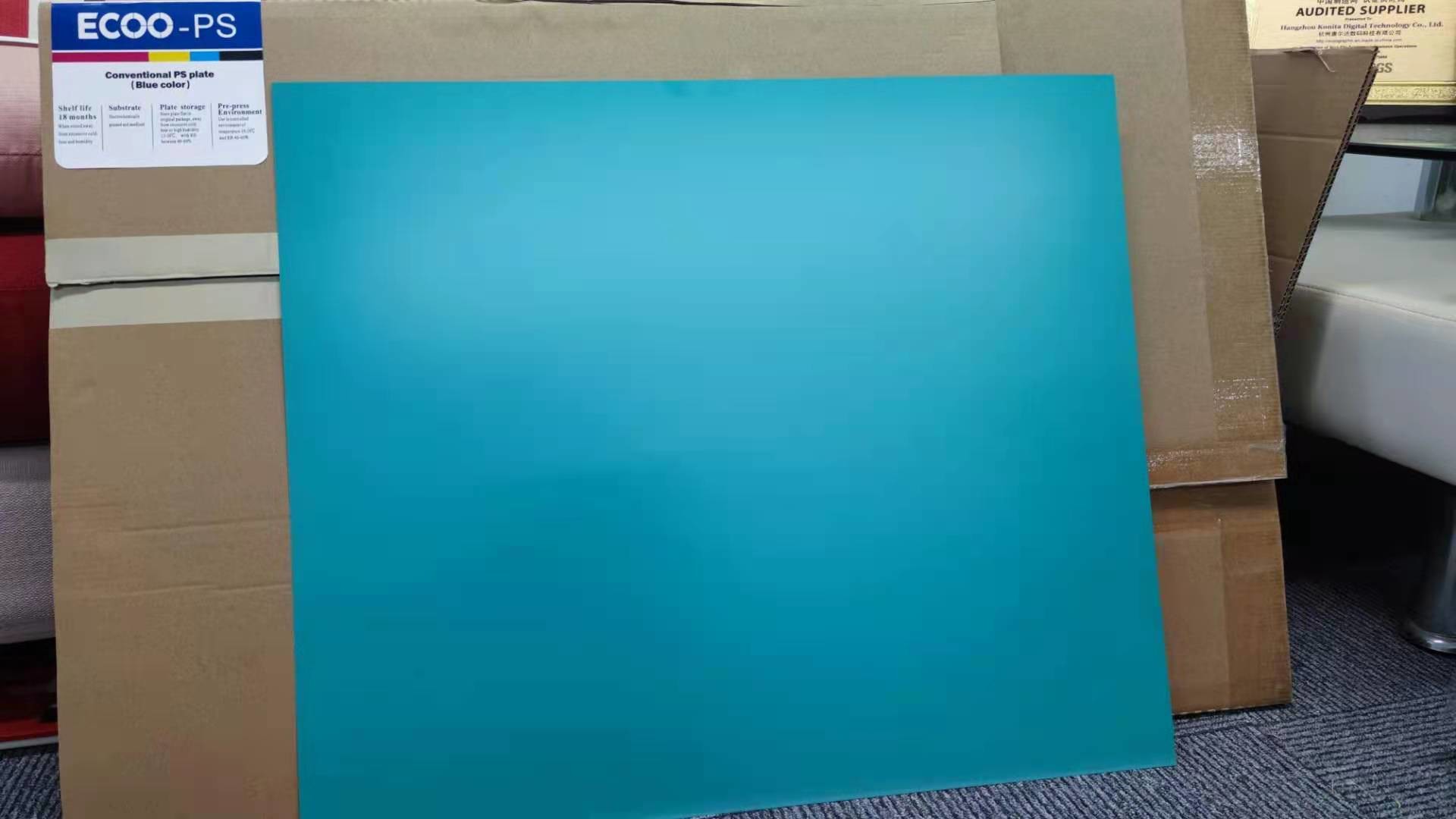

Gallery

0.15mm Conventional Aluminum CTP Positive PS Plate for Newspaper Printing

Product Description

1. Specification

Model	ECOO-PS
Plate Type	Positive PS Plate
Application	Commercial and newspaper printing
Substrate	Electro chemically grained and Anodized lithographic aluminum
Gauge	0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width	Maximum width 1280 mm
Power of light	3,000-5,000 w
Length of Run	Unbaked: 50,000 to 100,000 impressions; Baked: Over 100,000 impressions (dependent upon image resolution, press, press chemical, ink and paper conditions).
Processor	All brands or Manual
Aluminum	Standard 1050 Alloy
Developing time	20-30 sec
Spectral Sensitivity	320-405 nm
Resolution	1-99% @ 300LPI
Image Color	Green
Developer	Any positive plate developer or our own developer
Processing temperature	20-25ºC
Processing Speed	0.80 - 1.20 m/min
Safelight	Handle under yellow safe light(UV free)
Shelf life	12 months under recommended storage conditions
Packaging	Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handing	Stored in a cool and dry environment, away from excessive cold, heat and humidity

2. Characteristic

Uniform surface coating with high photosensitivity for consistent imaging quality
High resolution output with extended press run capability
Accurate halftone dot reproduction for sharp, detailed prints
Fast exposure combined with excellent stability for reliable performance

3. Application

The EcooGraphix PS Plate (conventional analog plate) is designed for offset and lithographic printing, including commercial and newspaper applications. Manufactured with advanced production technology and premium raw materials, it offers high photosensitivity, accurate halftone dot reproduction, and stable performance throughout the print run.
