Name: EcooGraphix Negative Photopolymer Conventional Violet CTP Plate for Newspaper Printing
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-V
Price: 34.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Conventional Violet CTP Plate

Run Length: More Than 150,000 Impressions

Gauge: 0.20/0.25/0.30mm

Resolution: 3% To 97% @ 175 Lpi Under Calibration

Specification: Maximum Width 1320 Mm

Application: Newspaper/Commercial Printing

Developer: FUJI LP. DWS. Agfa PL. 10. IMAF NEGA 910; PVD Gum

Exposure Energy: 50-60 Uj/ Cm2(Based On Plate Setter And Condition)

Highlight:

EcooGraphix CTP Plate

Newspaper Printing CTP Plate

Violet CTP Plate

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-V

Payment & Shipping Terms

Packaging Details: Standard Exporting Wooden Box

Delivery Time: 45-60 Days

Payment Terms: L/C, T/T

Supply Ability: 2000, 000sqm/Year

Gallery

EcooGraphix Negative Photopolymer Conventional Violet CTP Plate for Newspaper Printing

Product Description

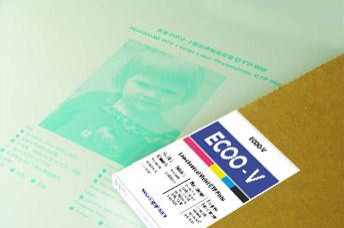

EcooGraphix Negative Photopolymer Conventional Violet CTP Plate

Product Description

Application

Ecoo-V is an environmentally friendly Chemical Violet Photopolymer CTP plate designed specifically for newspaper printing. It is optimized for violet CTP platesetters and can be precisely scanned by a 410nm laser controlled by a computer. After preheating, rinsing, and developing, the plate is ready to be mounted on the press for high-level printing.

The Ecoo-V plate incorporates several advanced technologies, including a superior roughed aluminum substrate, high-resolution formulation design, and advanced Multi-layer Coating Technology. These innovations ensure high-quality output, exceptional stability, and reliable performance, making Ecoo-V an excellent choice for newspaper printing applications.

Characteristic

1. Eco-Friendly:

- Reduces chemical consumption and saves water.

2. Simplified Processing:

- Only requires three steps: preheating, developing, and drying.

3. Consistent Quality:

- Uses weak alkali developers to minimize inconsistencies from exhausted developers, ensuring stable print quality.

Specification

Plate Type: ECOO-V

Application: Newspaper/Commercial Printing

Guage: 0.20/0.25/0.30mm

Developer: FUJI LP. DWS. Agfa PL. 10. IMAF NEGA 910; PVD gum

Run Length: More than 150,000 impressions. Actual run length may vary according to press/paper/ink conditions

Resolution: 3% to 97% @ 175 lpi under calibration

Safe Light: 12months under recommended storage conditions

Plate Type	ECOO-V
Features	Negative-working, low-chemical violet plate, also can work as a normal violet plate
Application	Newspaper/Commercial Printing
Substrate	The electrochemically-grained and anodized aluminum substrate
Gauge	0.20/0.25/0.30mm
Plate-setter	Existing mainstream 405nm violet plate-setter, All the main brands in the market, like Agfa/FFEI&FUJI/ Krause/ECRM/Highwater/Escher-Grad/Dotline
Processor	Existing conventional violet processors and low-chemical violet processors. Recommended: Glunz&Jensen Raptor, Height inca/maya etc.
Developer	FUJI LP. DWS. Agfa PL. 10. IMAF NEGA 910; PVD gum
Processing	Preheat temp setting to 90- 100C (plate surface temp) For FUJI LP-DWS: Developer temperature 25-26C/Dwell time 16-17 seconds For Agfa PL- 10 Developer temperature 24C/Dwell time 17 seconds
Run Length	More than 150,000 impressions. Actual run length may vary according to press/paper/ink conditions
Laser energy	70-80 μj/cm²
Resolution	3% to 97% @ 175 lpi under calibration
Safe light	For manual handling and plate setting loading, darkroom conditions with G10 safelight are required.
Shelf life	12 months under recommended storage conditions
Storage	Temperature: 18-26C Relative humidity: 30-70% RH
Advantages	environment-friendly------help enterprises to develop Stable developing performance, compatible with various kinds of developers Reduce equipment investment and maintenance cost

EcooGraphix Negative Photopolymer Conventional Violet CTP Plate for Newspaper Printing 1

Workflow

EcooGraphix Negative Photopolymer Conventional Violet CTP Plate for Newspaper Printing 2

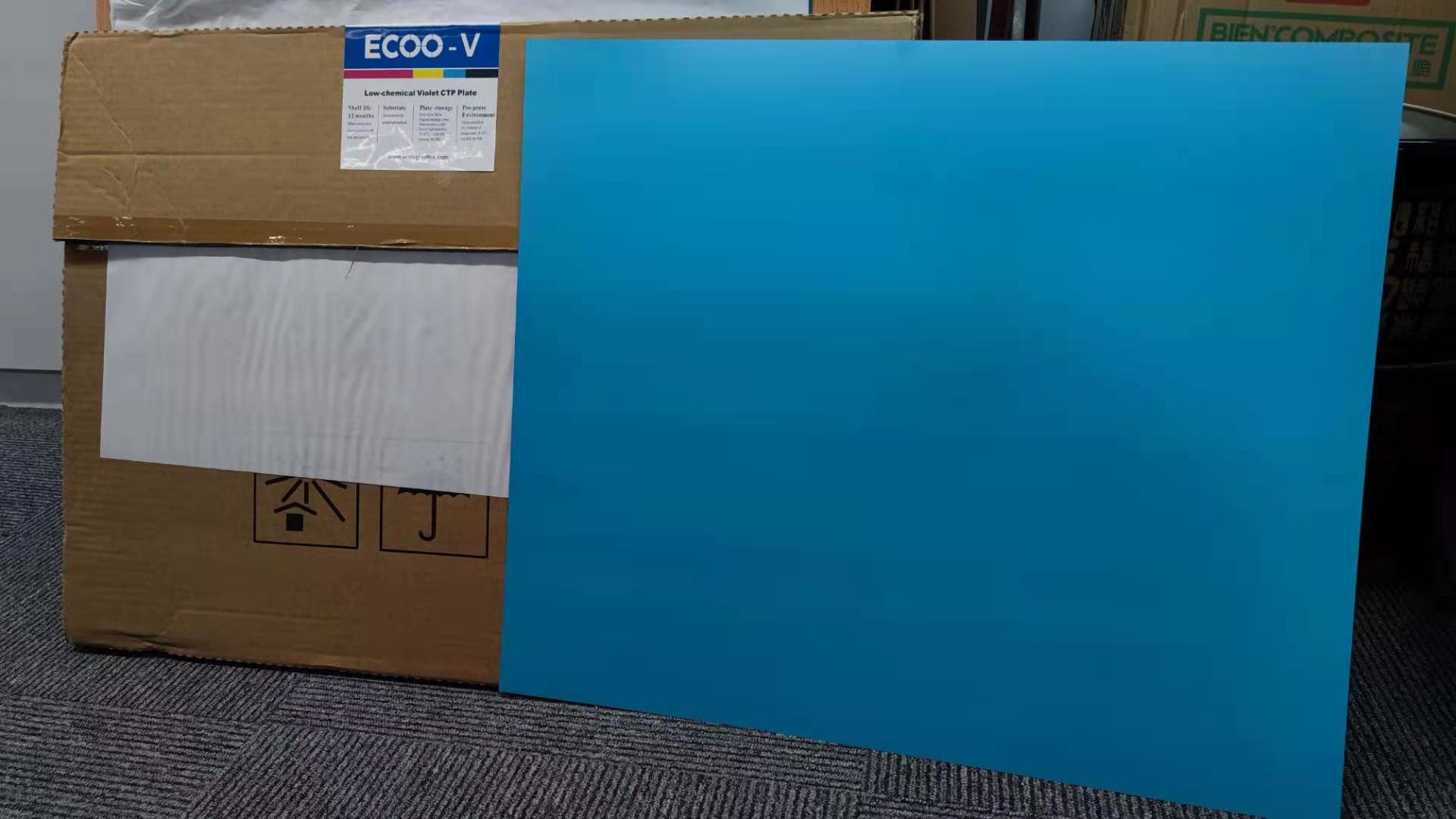

Producing and Packing

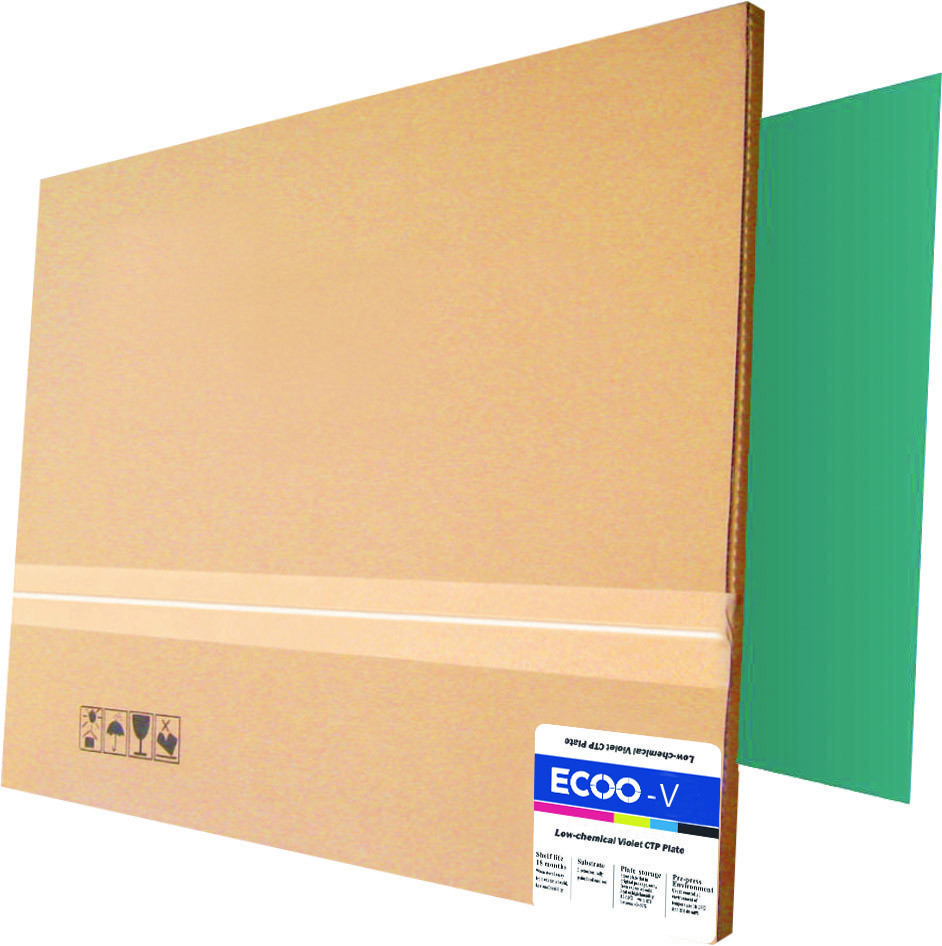

Packing: Standard Exporting Wooden Box

EcooGraphix Negative Photopolymer Conventional Violet CTP Plate for Newspaper Printing 3

Our Factory

1. Material Warehouse:
Only use South Western Aluminum, the Best quality aluminum roll manufacturer.
This ensures the plate substrate quality.

EcooGraphix Negative Photopolymer Conventional Violet CTP Plate for Newspaper Printing 4

EcooGraphix Negative Photopolymer Conventional Violet CTP Plate for Newspaper Printing 5

2. Worldwide Top Standard Production Line: 240 meters long, 40meters per minute

EcooGraphix Negative Photopolymer Conventional Violet CTP Plate for Newspaper Printing 6

More details

EcooGraphix Negative Photopolymer Conventional Violet CTP Plate for Newspaper Printing 7

EcooGraphix Negative Photopolymer Conventional Violet CTP Plate for Newspaper Printing 8

FAQ

Q1: Can I get the sample?
A: We are very glad to provide some samples for you to test. We usually provide 5-15 pieces of plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3 days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
