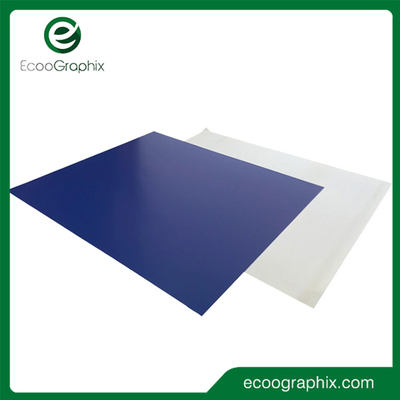

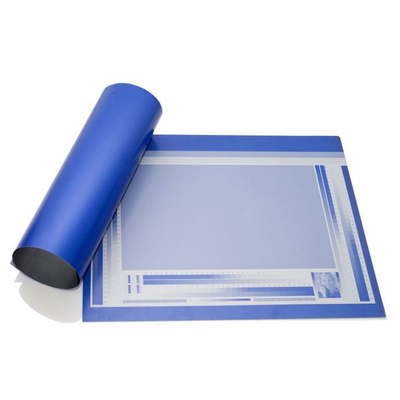

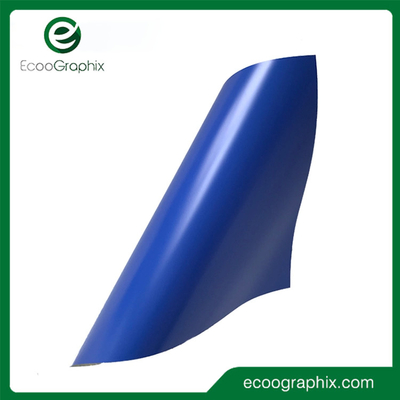

Double Coating Thermal CTP Plate for UV Ink Offset Printing
Model: ECOO-TSR
Brief introduction
Double Layer Coating Thermal CTP Plate ECOO-TSR plate is a positive-working plate for commercial printing. The plate is bakeable, and it is compatible with ordinary ink and UV ink.
Features
1. super long running length 2. workable with UV ink 3. solvent resistant
Application
This plate is workable with most commercial printing, newspaper printing, and package printing, and is ideal for customers who are looking for robust thermal CTP plate.
Specification
Plate Type:
Positive Working Thermal CTP Plate(Double Layer)
Application:
High grade offset commercial ,packaging or newspaper printing
Substrate:
Electro chemically Grained and Anodized lithographic Aluminum
Plate Thickness:
0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width:
Maximum width 1325 mm
Length of Press Runs:
Ordinary Ink: 200,000 to 400,000 impressions unbaked
UV Ink : 50,000 to 100,000 impressions
Exposure energy:
120 - 150 mj/cm²
Spectral Sensitivity:
800-850 nm - Peaks 830nm
Resolution:
1-99% at 400 LPI or FM 10 micron stochastic
Safelight:
Daylight handling
Shelf Life:
12 months under recommended storage conditions
Storage and handling:
Stored in a cool and dry environment, away from excessive cold, heat and humidity.
| Model | ECOO-TSR |
| Plate Type | Positive Thermal Digital Plate |
| Application | Commercial, newspaper and packaging print |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Gauge | 0.15, 0.30mm |
| Maximum short grain width | Maximum width 1280 mm |
| Coating | Blue |
| Length of Run | Unbaked: 400,000 impressions UV Ink :100,000 impressions |
| Plate setters | All thermal CTP machine |
| Aluminum | Standard 1050 Alloy |
| Exposure energy | 120 - 150 mj/ m² |
| Developing time | 25-30 sec |
| Spectral Sensitivity | 780 - 850 nm |
| Resolution | 1-99% @ 400LPI |
| Developer | Ecoo DV-T Series Developer |
| Processing temperature | 23ºC+/-2ºC |
| Processing Speed | 0.80 - 1.20 m/min |
| safelight | Daylight handling |
| Shelf life | 12-18 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage and handing | Stored in a cool and dry environment, away from excessive cold, heat and humidity |
From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers.
