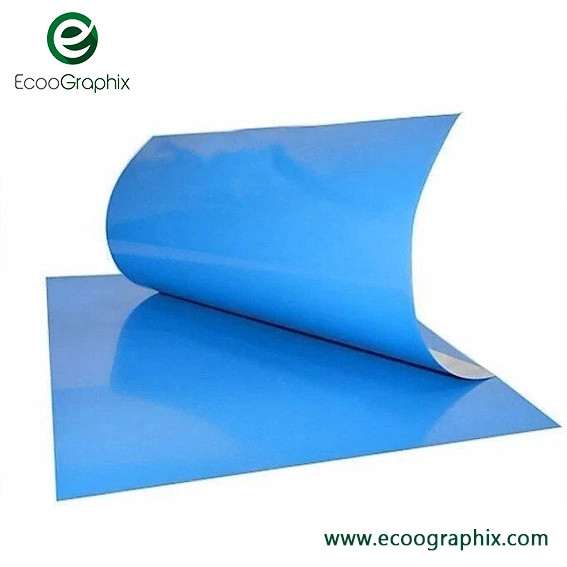

Single Layer Positive Aluminum CTCP / UV CTP Plate High Sensitivity

High Sensitivity Single Layer Positive Aluminum Ctcp/UV CTP Plate

Model: ECOO-CTCP-ES



EcooGraphix CTCP Plate can be used for long runs high grade commercial and newspaper printing.
Unique production technology and high quality raw materials make the plate gain high photosensitive speed,
good half-tone dot reproduction and stable performance.


Specification

Plate Model

ECOO-CTCP-ES

Plate Type

Positive CTCP Plate(Single Layer)

Application

High quality commercial and newspaper printing

Substrate

Electro chemically grained and Anodized lithographic aluminum

Aluminum alloy

Standard 1050 Alloy

Gauge

0.15, 0.20, 0.25, 0.30, 0.40 (mm)

Maximum short grain width

1280 mm

Length of Run

Unbaked: 80,000 to 100,000 impressions;

Baked: Over 100,000 impressions

Plate setters

Luscher, Basysprint, Cron, EcooGraphix UV series CTCP machine

Exposure energy

50 - 70 mj/cm²

Spectral Sensitivity

400 - 430 nm - UV Laser

Resolution

2 - 99% LPI 200

Photosensitive Wave Length

405 nm

Coating

Light Blue

Processor

All the kind brands.

Developer

Any CTCP plate developer or our own developer

Processing temperature

23°C +/- 2°C

Developing time

25 - 30 sec

Processing Speed

0.80 - 1.20 m/min

Safelight

Handle under yellow safelight (UV free)

Shelf Life

12 months under recommended storage conditions

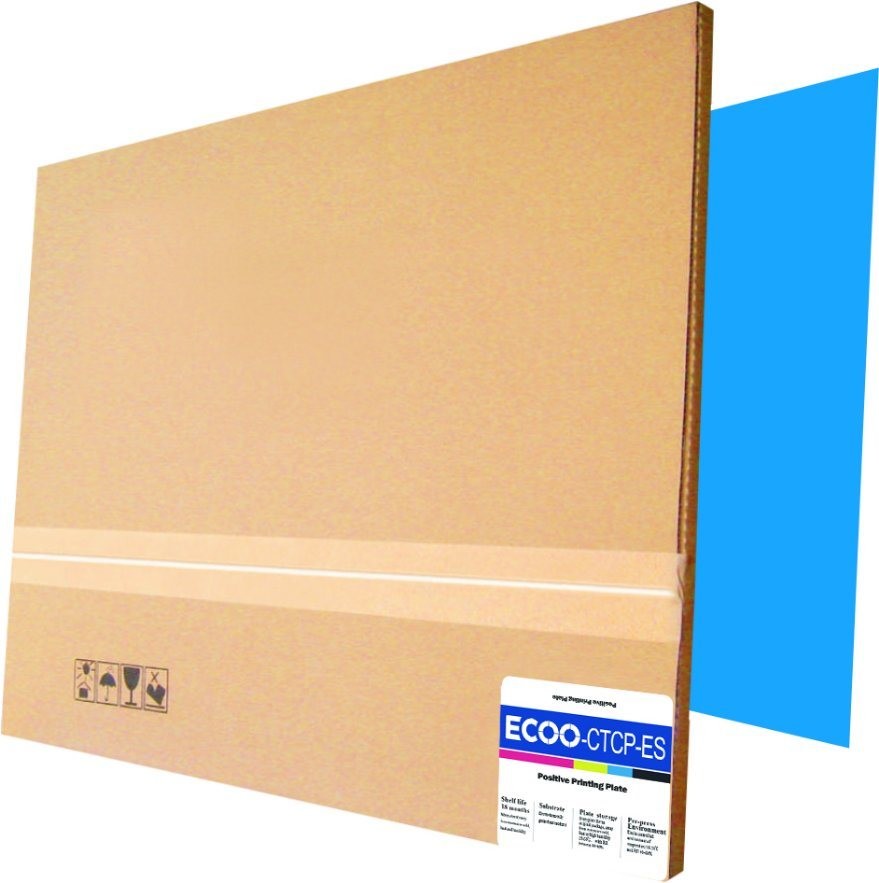

Packaging

Available in all standard formats, including bulk packaging options such as APL packaging

Storage and handling

Stored in a cool and dry environment, away from excessive cold, heat and humidity.









Producing and Packing

---





High quality Aluminum and photosensitive coating.
Multi layer composite grain structure.
Precise half-tone dot reproduction.
High development tolerance level and convenient operation.















Producing and Packing

---











Certifications

---















Certifications

---



Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: How many square meters CTP plates can feed one 20' container?
A: About 20000-25000SQM.

Q3: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
