Thermal / CTCP CTP Plate Long Runs Double Layer Offset Printing

Thermal / CTCP CTP Plate Long Runs Double Layer Offset Printing
Features Gallery Product Description Request A Quote
Product Name: Manufacturer Long Runs Double Layer Thermal/Ctcp CTP Plate
Application: High Grade Commercial And Newspaper Printing
Substrate: Electro Chemically Grained And Anodized Lithograph
Coating: Two-layer System, IR Sensitive, Positive Acting
Resolution: 2 - 99% LPI 200
Spectral Sensitivity: 800-850 Nm-Peaks 830nm
Gauge: 0.15, 0.20, 0.25,0.30, 0.40 Mm
Length Of Run: Unbaked: 80000 To 100,000 Impressions
Shelf Life: 12 Months Under Recommended Storage Conditions
High Light:

0.3mm Thermal CTP Plate


Long Runs CTCP Plate


Double Layer CTCP Offset Printing Plate

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: ECOO-ED
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Pallet
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T
Supply Ability: 5000, 000sqm
Product Description


Product Description

Manufacturer Long Runs Double Layer Thermal/Ctcp CTP Plate
Double Layer, Long Run Length, UV ink Compatible

1. Application
EcooGraphix Double Layer Thermal CTP Plate can be used for long runs high grade commercial and newspaper printing.


2. Features:
- Positive writing thermal plate
- Double layers system
- Made with high grade aluminum from Europe
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 100,000 impressions
- UV Ink up to 50,000 impressions
- Ability to print both AM and FM screening

3. Characteristic:
1) High quality aluminum, composite grain and high press runs.
2) Capable of bright room operation.
3) High resolution and precise half tone dot reproduction.
4)High development tolerance level and convenient operation.



Thermal / CTCP CTP Plate Long Runs Double Layer Offset Printing 0




4. Specification:
Model: ECOO-ED
No preheat, positive-working, thermal digital plate with excellent chemical and press durability;
Exposure energy required: 110-120 mj/ cm2 (depend on imager type, configuration and resolution)
Resolution: 1-99% @400lpi or 10μ FM stochastic (depend on capability of imaging device)
Spectral sensitivity: 780-850 nm
Run-length: 100,000 impressions unbaked; 50,000 impressions for UV ink applications,300,000 plus impressions baked(dependent upon image resolution, press, press chemical, ink and paper conditions).
Gauges: 0.15mm, 0.30mm and 0.40mm standard, with 0.20mm and 0.24mm availability in selected regions.
Coating color: Blue
Safelight: Daylight handling
Shelf life: 12 months, under recommended storage conditions.



General Information
Plate Model ECOO-ED
Plate Type Positive Thermal CTP Plate(Double Layer)
Application High grade commercial and newspaper printing
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy Standard 1050 Alloy
Coating Two-layer system, IR sensitive, positive acting
Gauge 0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width Maximum width 1280 mm
Plate intermix Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Press Runs Ordinary Ink: 100,000 to 200,000 impressions
UV Ink : 50,000 to 100,000 impressions
CTP Plate Making Machine
Plate setters
Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS
Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter
Screen : PT-R,Creo : Scitex
EcooGraphix Thermal CTP Tseries
Exposure energy 110 - 130 mJ/cm²
Spectral Sensitivity 800-850 nm - Peaks 830nm
Resolution 1-99% at 200 LPI
Image color Blue
FM capability 20 micron stochastic
Image color Blue Green to Pale Green
Processor All the kind Brands.
Developer Kodak Gold Star or our own developer
Processing temperature 23°C +/- 2°C
Developing time 25 - 30 sec
Processing Speed 0.80 - 1.20 m/min
Storage and handling
Safelight Daylight handling
Shelf Life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling Stored in a cool and dry environment, away from excessive cold, heat and humidity.
*Note: Higher exposure energy will make the image contrast more clear, and benefit to the plate run length;
while over high/low exposure energy will affect the image quality negatively.
Thermal / CTCP CTP Plate Long Runs Double Layer Offset Printing 1
Thermal / CTCP CTP Plate Long Runs Double Layer Offset Printing 2

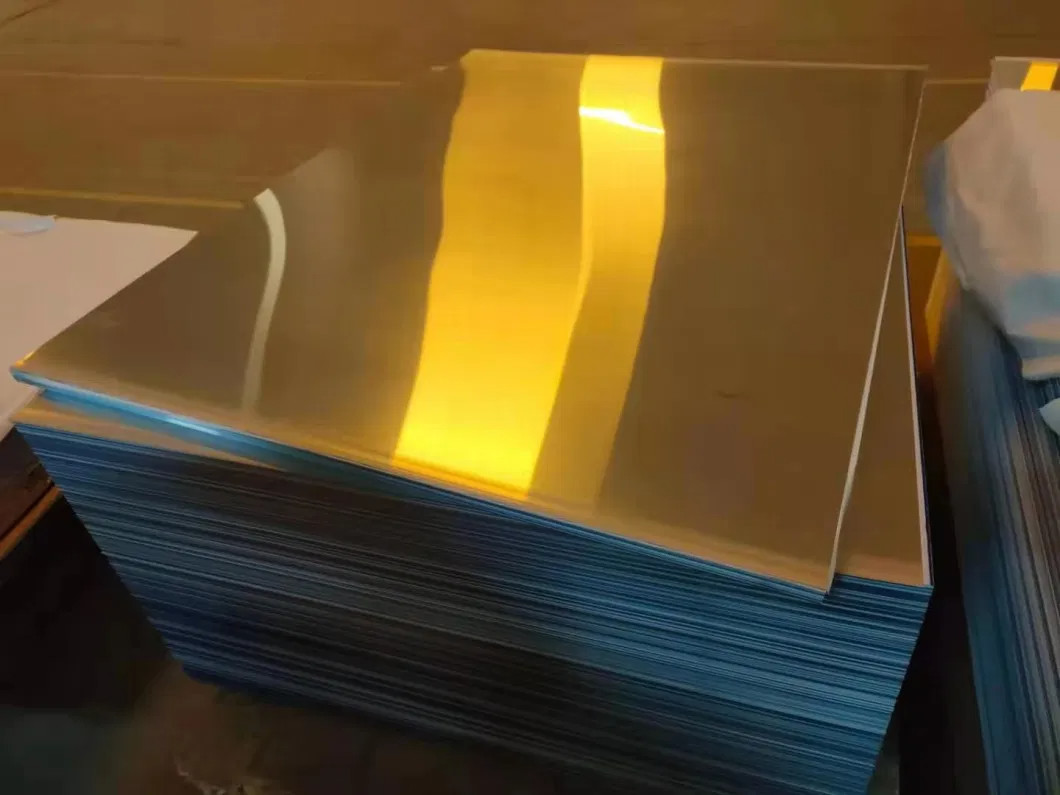

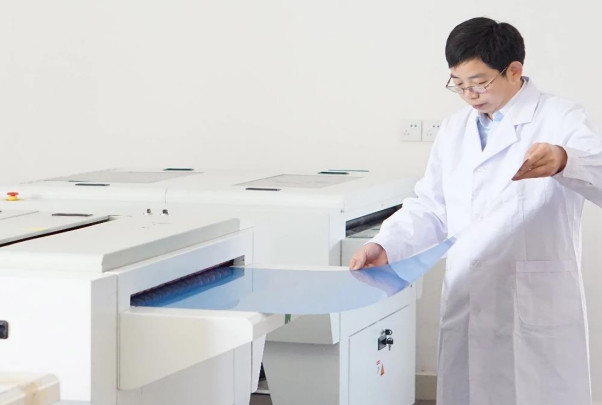

5. Producing And Packaging:

From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers.




Thermal / CTCP CTP Plate Long Runs Double Layer Offset Printing 3



Thermal / CTCP CTP Plate Long Runs Double Layer Offset Printing 4



Thermal / CTCP CTP Plate Long Runs Double Layer Offset Printing 5




5. Company Profile


EcooGraphix is a leading worldwide prepress and graphics arts supply provider. With our main office in China and top quality factories mostly based in China. We provide top quality as well as cost competitive products including CTP/CTCP equipments, CTP/CTCP plates, and some other graphics arts supply. Furthermore, we treat quality service as our top priority to ensure evey single customer operates seamlessly. We are by far one of largest and top quality and service provide for CTP equipments, plates and service from China. With hundreds of EcooGraphix CTP installations across USA, Canada, Mexico, South America, UK, Europe, Middle East, Turkey and etcs, we have gained a very fine international reputation in the industry.





6. FAQ


Q1: Can I get a sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
