Home /Products/CTP Printing Plates/Negative Violet Photopolymer Digital Offset Aluminum Plate For High-Level Printing

Negative Violet Photopolymer Digital Offset Aluminum Plate For High-Level Printing

1000 Square Meters

MOQ

Negotiable

Price

Negative Violet Photopolymer Digital Offset Aluminum Plate For High-Level Printing

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Violet Printing Plate

Application: Newspaper/Commercial Printing

Substrate: Electrochemically Grained And Anodized Aluminum Substrate

Laser Energy: 70-80 μj/cm²

Resolution: 3% To 97% @ 175 Lpi Under Calibration

Run Length: More Than 150,000 Impressions

Gauge: 0.20/0.30mm

Shelf Life: 12months Under Recommended Storage Conditions

Highlight:

Aluminum Computer To Plate CTP

,

Digital Offset Printing Aluminum Plate

,

Negative Violet Photopolymer CTP Printing Plates

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-V

Payment & Shipping Terms

Packaging Details: Standard Exporting Wooden Box

Delivery Time: 45 Days

Payment Terms: L/C, T/T

Supply Ability: 2000, 000sqm/Year

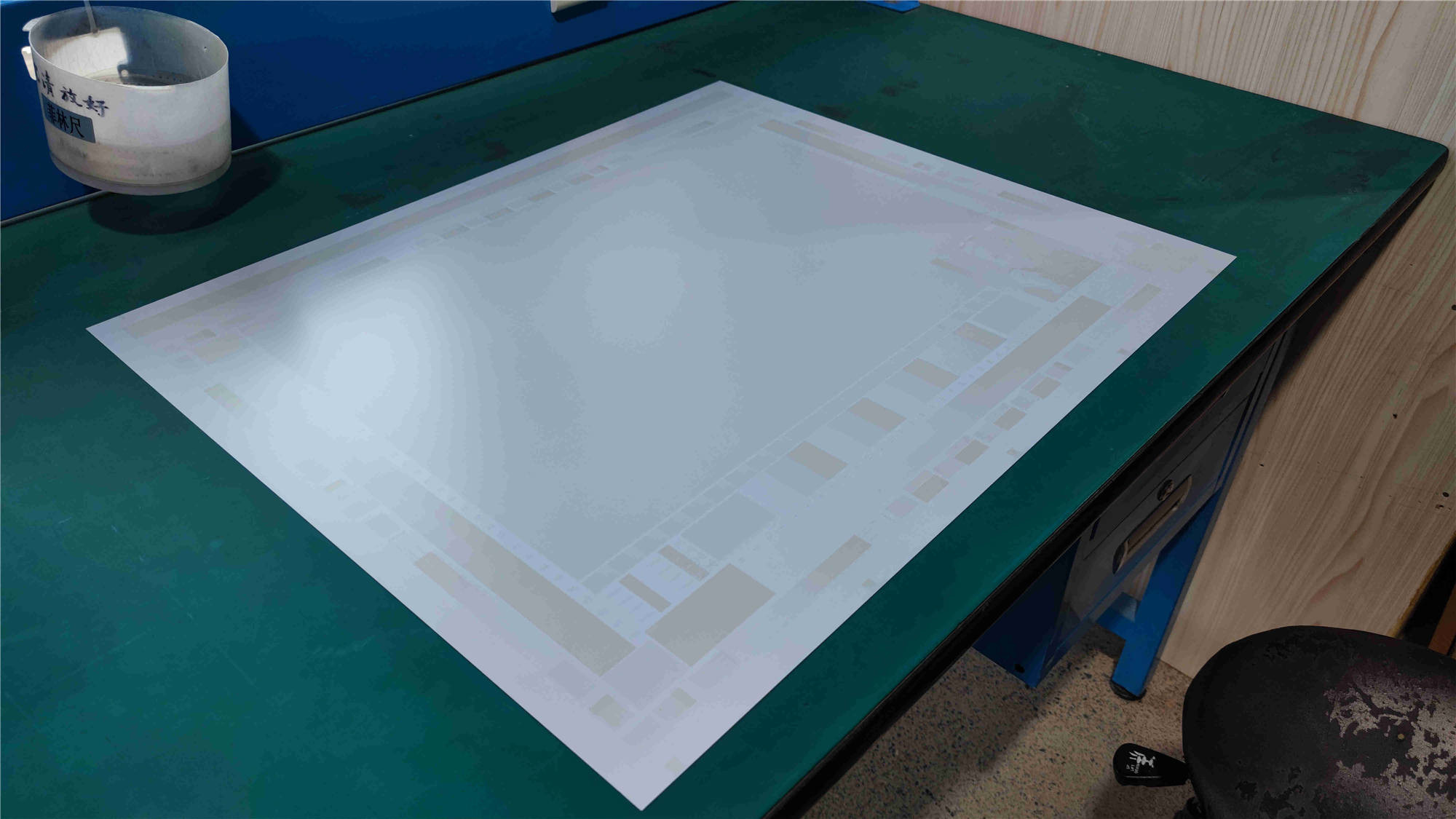

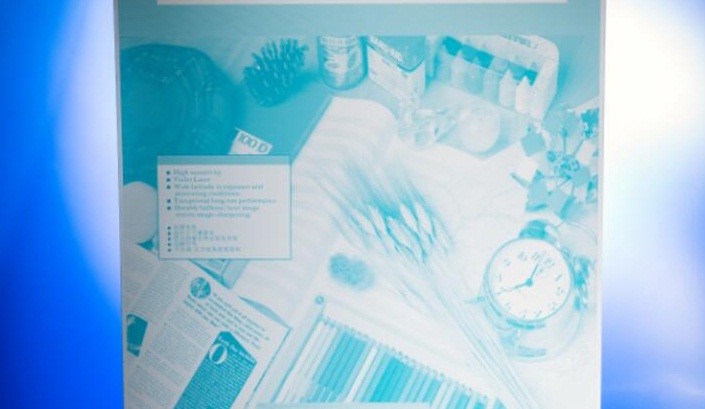

Gallery

Negative Violet Photopolymer Digital Offset Aluminum Plate For High-Level Printing

Product Description

Negative Violet Photopolymer Aluminum Plate

This violet CTP plate is a kind of plate specialized for violet CTP platesetters for high-level printing, which can be scanned by 410nm laser controlled by computer, and mounted on the press for printing after preheating, rinsing, developing, etc.

The plate has applied many latest technologies like excellent roughed aluminum substrate, high-resolution formulation design and advanced Multi-layer Coating Technology. These advanced technologies ensure the high quality and stable property.

Features

Simplifying the processing, only 3 steps including preheating, developing, and drying.

Redusing chemical consuption, saving water.

Weak alkali developer maximumly avoid developing inconsistency due to exhausted developer. It makes print wuality more stable.

Specifications

Plate Type	ECOO-V
Features	Negative-working, low-chemical violet plate, also can work as normal violet plate
Application	Newspaper/Commercial Printing
Substrate	Electrochemically grained and anodized aluminum substrate
Gauge	0.20/0.25/0.30mm
Plate-setter	Existing mainstream 405nm violet plate-setter, All the main brands in market, like Agfa/FFEI&FUJI/ Krause/ECRM/Highwater/Escher-Grad/Dotline
Processor	Existing conventional violet processors and low-chemical violet processors. Recommended: Glunz&Jensen Raptor, Height inca/maya etc.
Developer	FUJI LP. DWS. Agfa PL. 10. IMAF NEGA 910; PVD gum
Processing	Preheat temp setting 90- 100C (plate surface temp) For FUJI LP-DWS: Developer temperature 25-26C/Dwell time 16-17 seconds For Agfa PL- 10 Developer temperature 24C/Dwell time 17 seconds
Run Length	More than 150,000 impressions. Actual run length may vary according to press/paper/ink conditions
Laser energy	70-80 μj/cm²
Resolution	3% to 97% @ 175 lpi under calibration
Safe light	For manual handling and platesetting loading, darkroom conditions with G10 safelight is required.
Shelf life	12months under recommended storage conditions
Storage	Temperature: 18-26C Relative humidity: 30-70% RH
Advantages	Environment-friendly------help enterprises to develop Stable developing performance, compatible with various kinds of developers Reduce equipment investment and maintenance cost

Negative Violet Photopolymer Digital Offset Aluminum Plate For High-Level Printing 0

Negative Violet Photopolymer Digital Offset Aluminum Plate For High-Level Printing 1

Workflow

Negative Violet Photopolymer Digital Offset Aluminum Plate For High-Level Printing 2

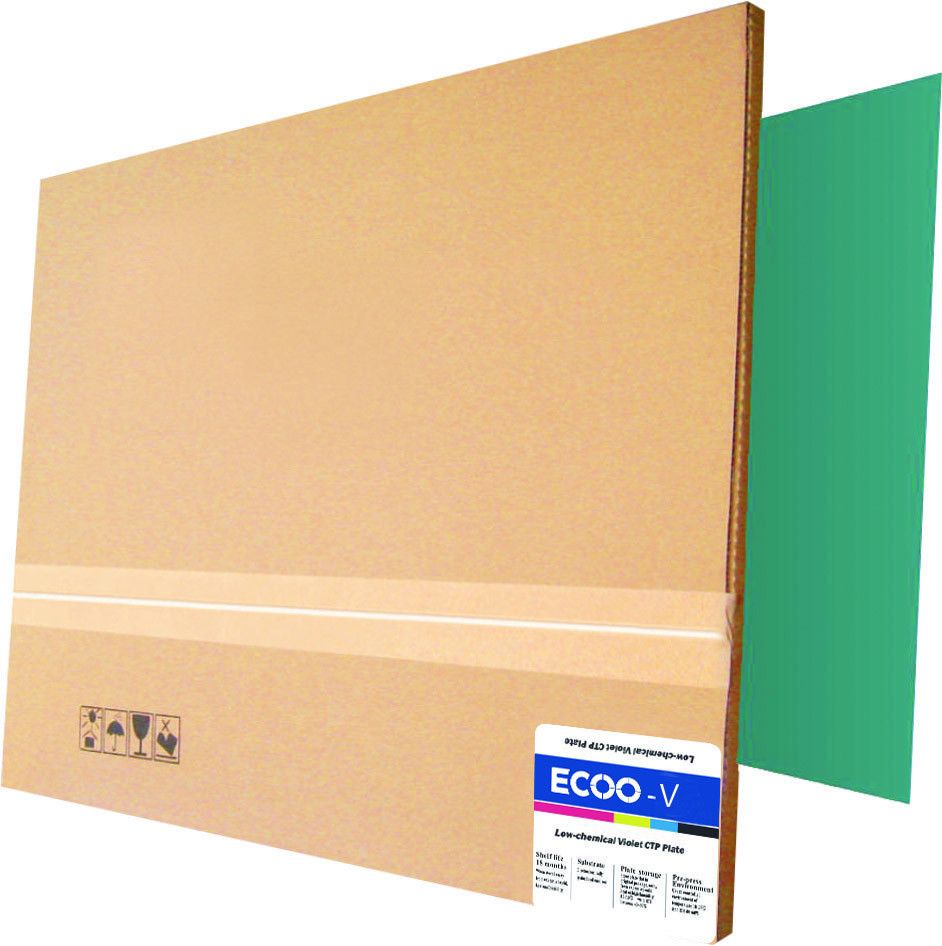

Packing and Producing

Negative Violet Photopolymer Digital Offset Aluminum Plate For High-Level Printing 3

Negative Violet Photopolymer Digital Offset Aluminum Plate For High-Level Printing 4

Negative Violet Photopolymer Digital Offset Aluminum Plate For High-Level Printing 5

Negative Violet Photopolymer Digital Offset Aluminum Plate For High-Level Printing 6

FAQ

Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
