High Sensitive Double Layer Thermal CTP Plate Aluminum Plate Positive

1000SQM
MOQ
Negotiable
Price
High Sensitive Double Layer Thermal CTP Plate Aluminum Plate Positive
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Thermal CTP Plate Aluminum Plate
Application: High Grade Offset Commercial ,packaging Or Newspaper Printing
Plate Type: Positive Working Thermal CTP Plate(Double Layer)
Plate Thickness: 0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum Short Grain Width: Maximum Width 1325 Mm
Spectral Sensitivity: 800-850 Nm – Peaks 830nm
Resolution: 1-99% At 400 LPI Or FM 10 Micron Stochastic
Length Of Press Runs: Ordinary Ink: 200,000 To 400,000 Impressions Unbaked UV Ink : 50,000 To 100,000 Impressions
Exposure Energy: 120 - 150 Mj/cm²
High Light:

0.3mm CTP Printing Plates

,

High Sensitive Thermal CTP Plate

,

Double Layer Positive Thermal Aluminum Plate

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-TSR
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 2,000,000 Sqm Per Year
Product Description
EcooGraphix Thermal CTP Plate Aluminum Plate
ECOO-TSR

EcooGraphix Thermal Solvent Resistance CTP plate can be used for long runs high grade commercial and newspaper printing.
It can also be used for the UV ink printing with perfect performance.



Features


- Positive writing thermal plate

- Double layers system

- Made with high grade aluminum base

- Wide adaptability for different plate setter brands

- Non-ablative coating

- Run lengths up to 150,000 impressions

- UV Ink up to 80,000 impressions

- Ability to print both AM and FM screening



Benefits

- Extensive adaptability, saving from waste during possible swift of consumables' supplying

- Quick turn around time on press

- Compatible with common developers

- Premium quality of dot reproduction and super long run length





Specification



General Information
Plate Model ECOO-TSR
Plate Type Positive Working Thermal CTP Plate(Double Layer)
Application High grade offset commercial ,packaging or newspaper printing
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Plate Thickness 0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width Maximum width 1325 mm
Plate intermix Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Press Runs Ordinary Ink: 200,000 to 400,000 impressions unbaked
UV Ink : 50,000 to 100,000 impressions
Exposing
CTP Plate Making Machine Kodak: Trendsetter/Lotem/Magnus; FUJI : Javelin T9000HS
Plate setters Heidelberg : Top setter/Supra setter; Luscher : Xpose
Screen : PT-R,Creo : Scitex ;EcooGraphix Thermal CTP Tseries
Exposure energy 120 - 150 mj/cm²
Spectral Sensitivity 800-850 nm - Peaks 830nm
Resolution 1-99% at 400 LPI or FM 10 micron stochastic
Image color Blue
Developing
Developer Kodak Gold Star or EcooGraphix DV-T developer
Processing temperature 25°C +/- 3°C
Developing time 25+/- 5 sec
Processing Speed 0.80 - 1.20 m/min
Storage and handling
Safelight Daylight handling
Shelf Life 12 months under recommended storage conditions
Storage and handling Stored in a cool and dry environment, away from excessive cold, heat and humidity.

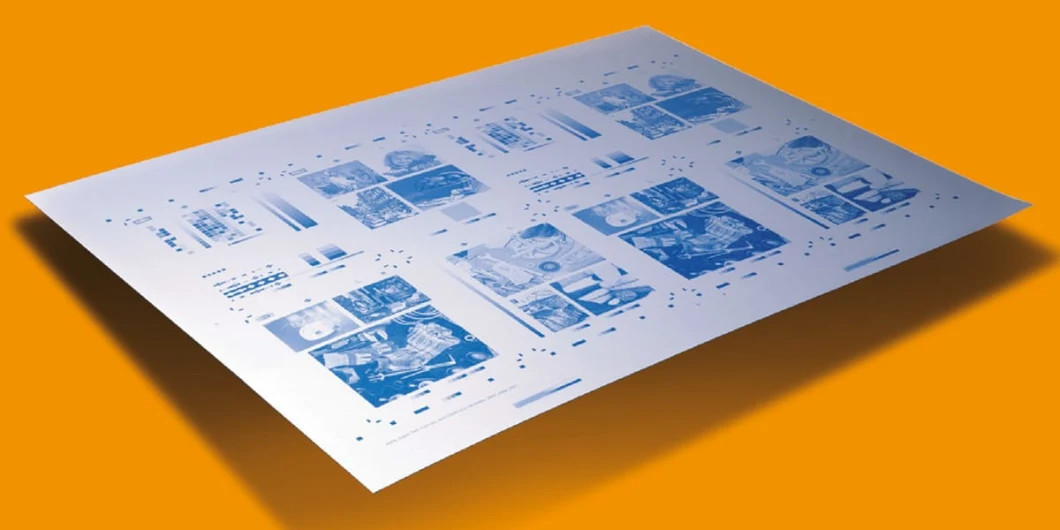

High Sensitive Double Layer Thermal CTP Plate Aluminum Plate Positive 0

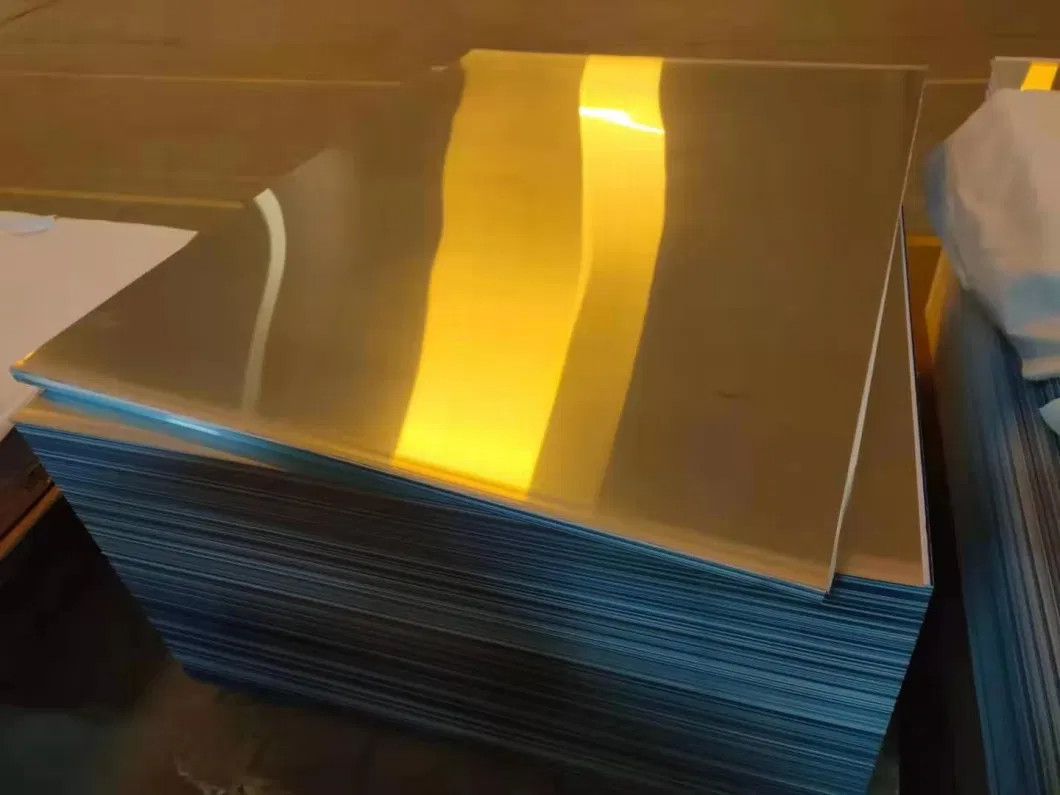

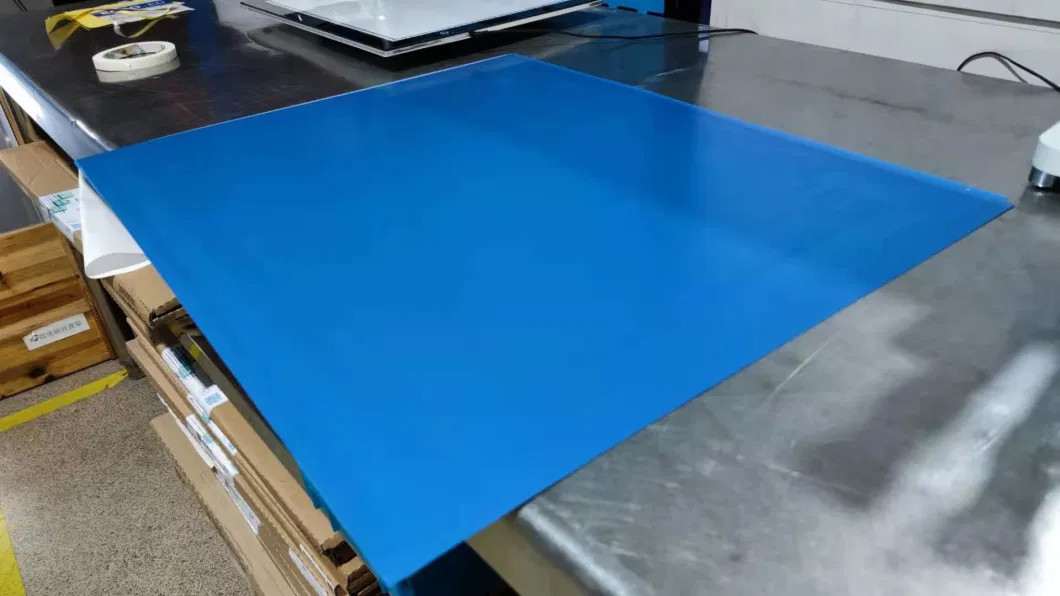

Producing and Packing


High Sensitive Double Layer Thermal CTP Plate Aluminum Plate Positive 1

High Sensitive Double Layer Thermal CTP Plate Aluminum Plate Positive 2

High Sensitive Double Layer Thermal CTP Plate Aluminum Plate Positive 3

High Sensitive Double Layer Thermal CTP Plate Aluminum Plate Positive 4


Workflow





High Sensitive Double Layer Thermal CTP Plate Aluminum Plate Positive 5





About US




EcooGraphix is a leading worldwide prepress and graphics arts supply provider. With our main office in China and top quality factories mostly based in China. We provide top quality as well as cost competitive products including CTP/CTCP equipments, CTP/CTCP plates, and some other graphics arts supply. Furthermore, we treat quality service as our top priority to ensure evey single customer operates seamlessly. We are by far one of largest and top quality and service provide for CTP equipments, plates and service from China. With hundreds of EcooGraphix CTP installations across USA, Canada, Mexico, South America, UK, Europe, Middle East, Turkey and etcs, we have gained a very fine international reputation in the industry.





FAQ




Q1: Can I get a sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
