Aluminum CTP Plate UV / Ctcp Plate High Sensitivity For Offset Printing

1000SQM
MOQ
Negotiable
Price
Aluminum CTP Plate UV / Ctcp Plate High Sensitivity For Offset Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Aluminum CTP Plate
Material: Electro Chemically Grained And Anodized Lithographic Aluminum
Usage: High Quality Commercial And Newspaper Printing
Gauge: 0.15,0.20, 0.25,0.30, 0.40 (mm
Length Of Run: Unbaked: 80000 To 100,000 Impressions
Resolution: 2 - 99% LPI 200
High Light:

0.3mm Ctcp Plate

,

High Sensitivity Ctcp Printing Plates

,

Offset Printing UV Thermal CTP Plate

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: ECOO-CTCP-ES
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Pallet
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T
Supply Ability: 2000, 000sqm/Year
Product Description



Aluminum CTP Plate UV/Ctcp Printing Plate



​​​​​​​CTCP refers to Computer-To-Conventional-Plate


Product Description



Application
EcooGraphix CTCP Plate can be used for long runs high grade commercial and newspaper printing.
Unique production technology and high quality materials make the plate gain highphotosensitive speed,

good half-tone dot reproduction and stable performance.




Characteristic
1)High quality Aluminum and photosensitive coating.
2) Multi layer composite grain structure. 3) Precise half-tone dot reproduction.
4) High development tolerance level and convenient operation.



Specification




General Information

Plate Model
ECOO-CTCP-ES

Plate Type
Positive CTCP Plate(Single Layer)

Application
High quality commercial and newspaper printing

Substrate
Electro chemically Grained and Anodized lithographic Aluminum

Aluminum alloy
Standard 1050 Alloy

Gauge
0.15, 0.20, 0.25, 0.30, 0.40 (mm)

Maximum short grain width
Maximum width 1280 mm

Length of Run
Unbaked: 80,000 to 100,000 impressions; Baked: Over 100,000 impressions




Exposing

Plate setters
Luscher, Basysprint, Cron, EcooGraphix UV series CTCP machine

Exposure energy
50 - 70 mJ/cm²

Spectral Sensitivity
400 - 430 nm - UV Laser

Resolution
2 - 99% LPI 200

Photosensitive Wave Length
405nm

Coating
Light Blue




Developing

Processor
All the kind brands.

Developer
Any CTCP plate developer or our own developer

Processing temperature
23°C +/- 2°C

Developing time
25 - 30 sec

Processing Speed
0.80 - 1.20 m/min




Storage and handling

Safelight
Handle under yellow safelight (UV free)

Shelf Life
12 months under recommended storage conditions

Packaging
Available in all standard formats, including bulk packaging options such as APL packaging

Storage and handling
Stored in a cool and dry environment, away from excessive cold, heat and humidity.



General Information
Plate Model ECOO-CTCP-ES
Plate Type Positive CTCP Plate(Single Layer)
Application High quality commercial and newspaper printing
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy Standard 1050 Alloy
Gauge 0.15,0.20,0.25,0.30,0.40 (mm)
Maximum short grain width Maximum width 1280 mm
Length of Run Unbaked: 80000 to 100,000 impressions; Baked: Over 100000 impressions
Exposing
Plate setters Luscher , Basysprint, Cron, EcooGraphix UV series CTCP machine
Exposure energy 50 - 70 mJ/cm²
Spectral Sensitivity 400 - 430 nm - UV Laser
Resolution 2 - 99% LPI 200
Coating Blue
Photosensitive Wave Length 405nm
Developing
Processor All the kind Brands.
Developer Any CTCP plate developer or our own developer
Processing temperature 23°C +/- 2°C
Developing time 25 - 30 sec
Processing Speed 0.80 - 1.20 m/min
Storage and handling
Safelight Handle under yellow safelight (UV free)
Shelf Life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling Stored in a cool and dry environment, away from excessive cold, heat and humidity

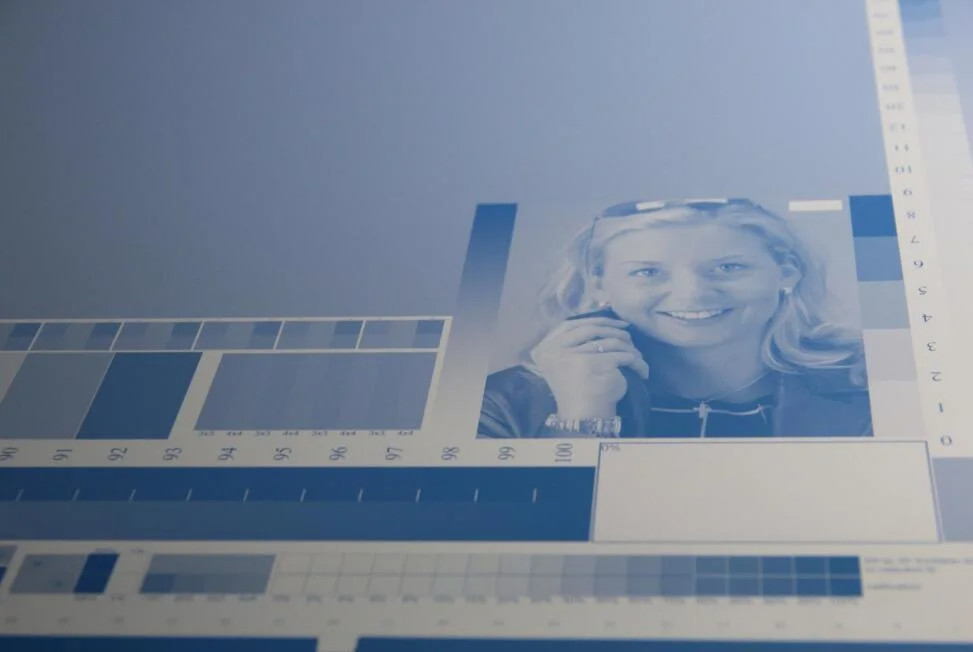

Aluminum CTP Plate UV / Ctcp Plate High Sensitivity For Offset Printing 0



Workflow





Aluminum CTP Plate UV / Ctcp Plate High Sensitivity For Offset Printing 1

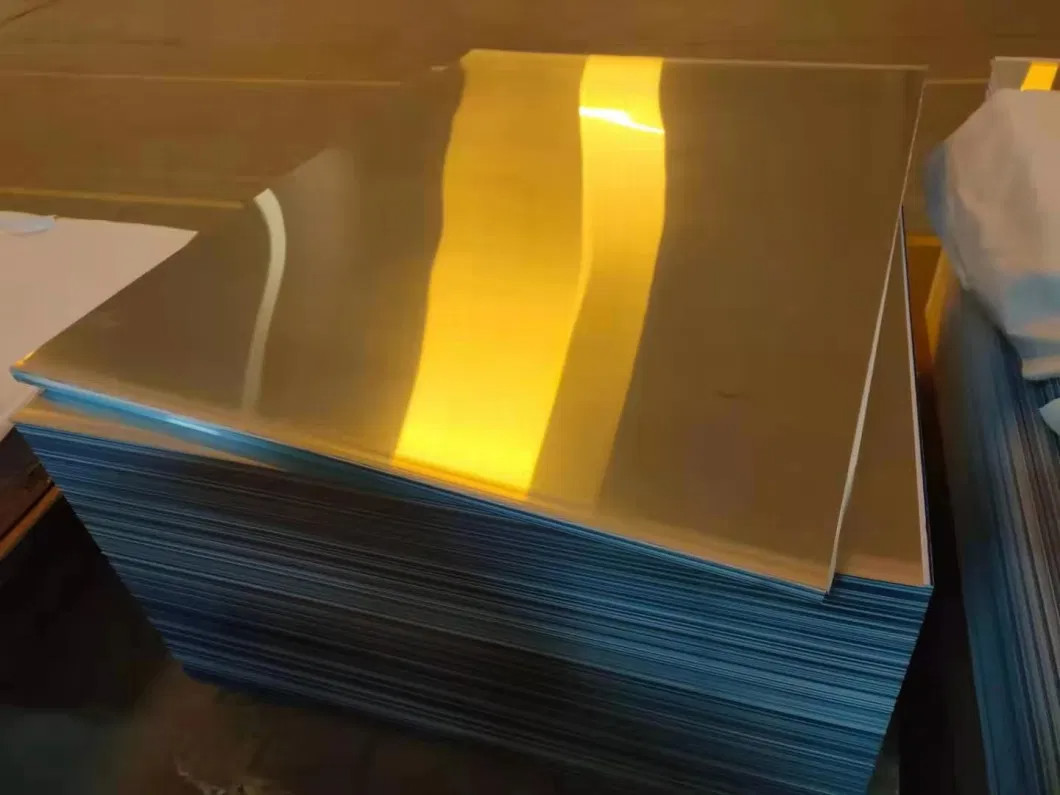

Producing and Packing



Aluminum CTP Plate UV / Ctcp Plate High Sensitivity For Offset Printing 2



Aluminum CTP Plate UV / Ctcp Plate High Sensitivity For Offset Printing 3



Aluminum CTP Plate UV / Ctcp Plate High Sensitivity For Offset Printing 4



Aluminum CTP Plate UV / Ctcp Plate High Sensitivity For Offset Printing 5

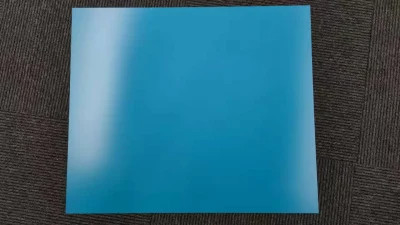

More details


Aluminum CTP Plate UV / Ctcp Plate High Sensitivity For Offset Printing 6



Aluminum CTP Plate UV / Ctcp Plate High Sensitivity For Offset Printing 7



FAQ




Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
