200,000 Impressions Solvent Resistance CTP Offset Printing Plates

1000 Square Meters
MOQ
Negotiable
Price
200,000 Impressions Solvent Resistance CTP Offset Printing Plates
Features Gallery Product Description Request A Quote
Features
Specifications
Classification: CTP Printing Plates
Exposure Energy: 120 - 150 MJ/cm²
Resolution: 1-99% At 400 LPI
Run Length With: Ordinary Ink: 100,000 To 200,000 Impressions; UV Ink : 50,000 To 100,000 Impressions
Application: High Grade Commercial And Newspaper Printing
Coating: Two-layer System, IR Sensitive, Positive Acting
Gauge: 0.15, 0.20, 0.25, 0.30, 0.40 (mm)
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-TSR
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 15,000,000 Sqm Per Year
Product Description



 Long Run Length Thermal Solvent Resistance CTP Printing Plate







EcooGraphix Thermal Solvent Resistance CTP printing plate can be used for long runs commercial and newspaper printing. It can also be used for the UV ink printing with perfect performance.










Characteristic





Features

- Positive writing thermal plate

- Double layers system

- Made with high grade aluminum base

- Wide adaptability for different plate setter brands

- Non-ablative coating

- Run lengths up to 150,000 impressions

- UV Ink up to 80,000 impressions

- Ability to print both AM and FM screening



Benefits

- Extensive adaptability, saving from waste during possible swift of consumables’ supplying

- Quick turn around time on press

- Compatible with common developers

- Premium quality of dot reproduction and super long run length










Specification





 General Information
Plate Model ECOO-TSR
Plate Type Thermal UV-CTP Plate(Double Layer)
Application High grade commercial and newspaper printing
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Aluminum Alloy Standard 1050 Alloy
Coating Two-layer system, IR sensitive, Positive acting
Gauge 0.15, 0.20, 0.25, 0.30, 0.40 (mm)
Maximum Short Grain Width Maximum width 1325 mm
Plate Intermix Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates,
Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Run

Ordinary Ink: 100,000 to 200,000 impressions

UV Ink : 50,000 to 100,000 impressions

 Exposing
CTP Plate Making Machine Plate Setters Kodak: Trendsetter/Lotem/Magnus; Fuji: Javelin T9000HS
Heidelberg: Top setter/Supra setter; Luscher: Xpose Plate setter
Screen: PT-R, Creo: Scitex
EcooGraphix Thermal CTP Tseries
Exposure Energy 120 - 150 mJ/cm²
Spectral Sensitivity 800-850 nm – Peaks 830nm
Resolution 1-99% at 400 LPI
FM Capability 10 micron stochastic
Image Color Blue
 Developing
Processor All the kind Brands
Developer Kodak Gold Star or our own developer
Processing Temperature 23°C +/- 2°C
Developing Time 25 - 30 sec
Processing Speed 0.80 – 1.20 m/min
 Storage and Handling
Safelight Daylight handling
Shelf Life 12 months under recommended storage conditions
Packaging

Available in all standard formats, including bulk packaging options

such as APL packaging

Storage and Handling

Stored in a cool and dry environment, away from excessive cold,

heat and humidity.

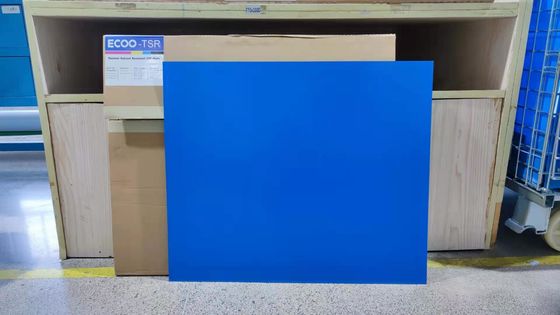

200,000 Impressions Solvent Resistance CTP Offset Printing Plates 0










Producing And Packaging





From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

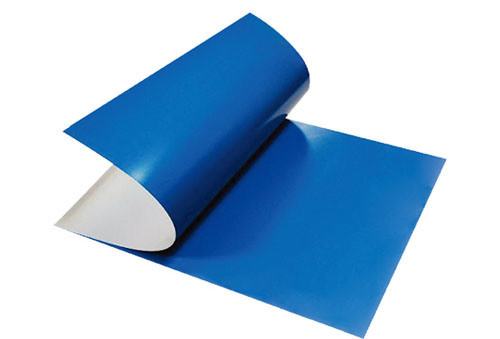

200,000 Impressions Solvent Resistance CTP Offset Printing Plates 1

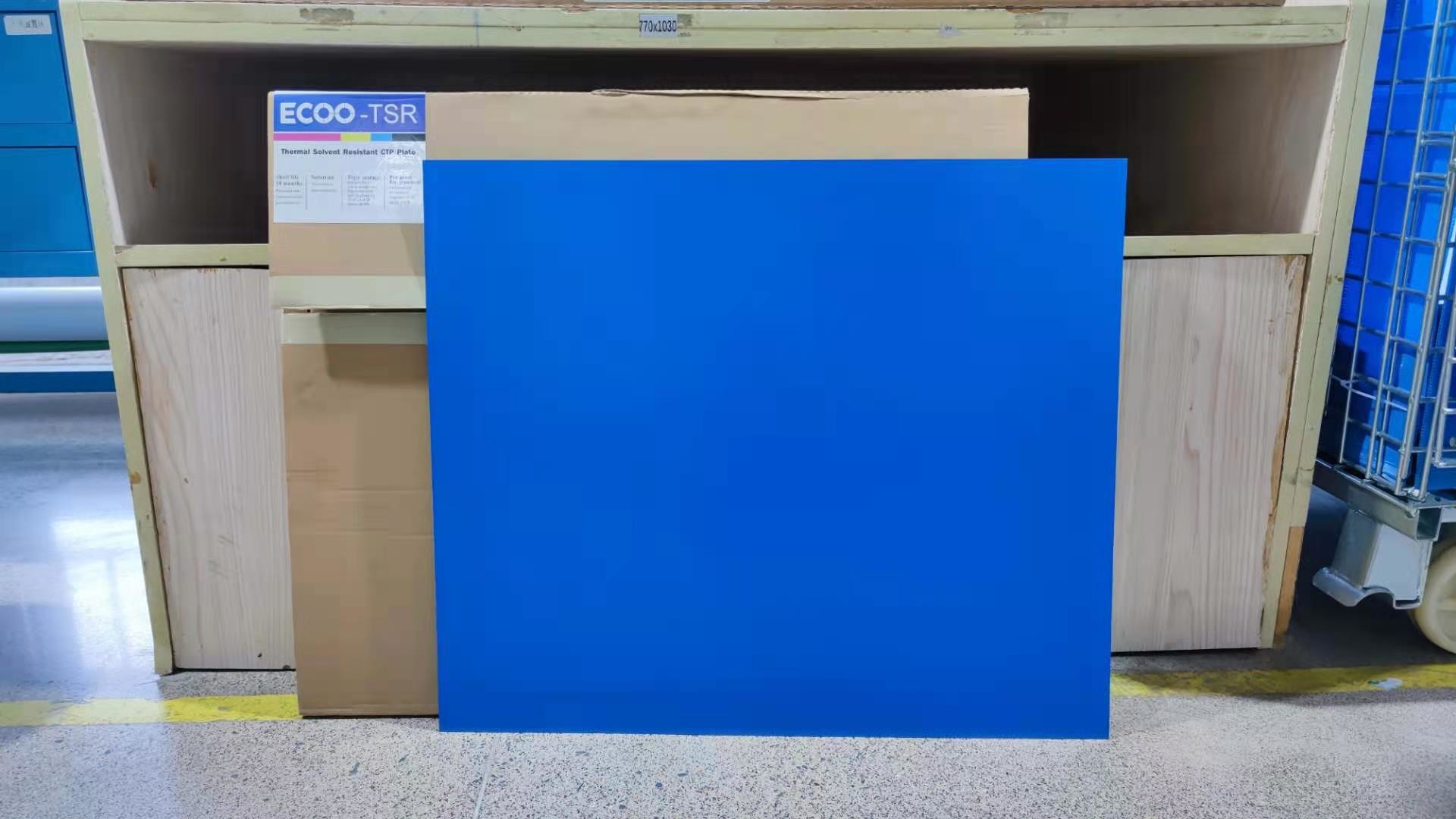

200,000 Impressions Solvent Resistance CTP Offset Printing Plates 2

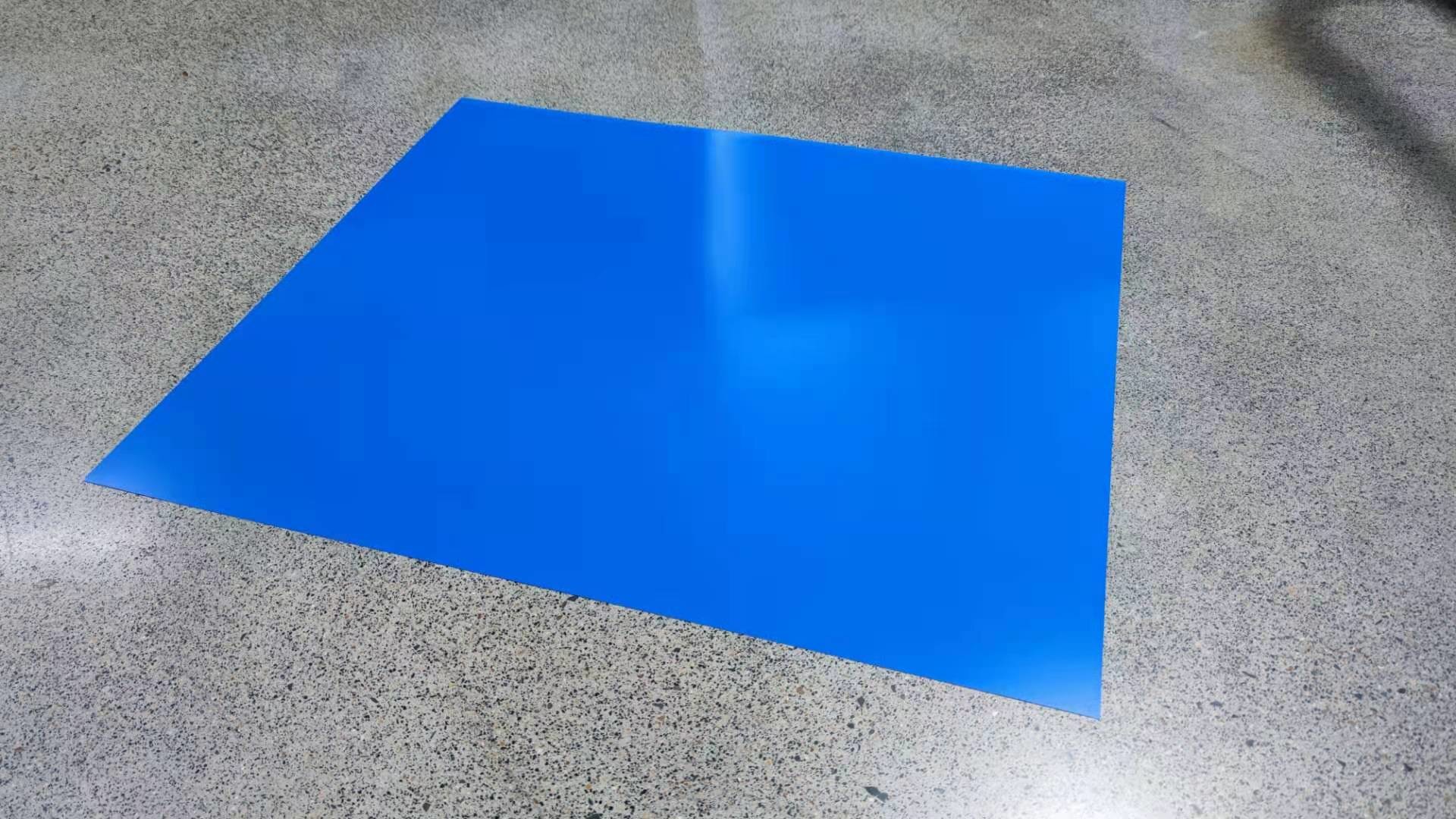

200,000 Impressions Solvent Resistance CTP Offset Printing Plates 3



200,000 Impressions Solvent Resistance CTP Offset Printing Plates 4



200,000 Impressions Solvent Resistance CTP Offset Printing Plates 5










 FAQ







 Q1: Can I get the sample ?



A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.







 Q2: What is the cost for the CTP plate sample freight ?



A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.







 Q3: How long can the sample be ready ?



A: It usually takes about 3 days to prepare the sample.







 Q4: Can I visit your factory ?



A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
