Double Layered Offset Printing Thermal CTP Plate Long Runs

1000SQM
MOQ
Negotiable
Price
Double Layered Offset Printing Thermal CTP Plate Long Runs
Features Gallery Product Description Request A Quote
Features
Specifications
Coating: Two-layer System, IR Sensitive, Positive Acting
Gauge: 0.15,0.20, 0.25,0.30, 0.40 (mm)
Length Of Run: Ordinary Ink: 100,000 To 200,000 Impressions UV Ink : 50,000 To 100,000 Impressions
Resolution: 1-99% At 200 LPI
Exposure Energy: 110 - 130 MJ/cm²
Spectral Sensitivity: 800-850 Nm – Peaks 830nm
High Light:

Long Runs Thermal CTP Plate

,

Offset Printing Computer To Plate

,

Double Layered CTP Printing Plates

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: ISO, CE
Model Number: ECOO-ED
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 2000,000 sqm per year
Product Description





MODELO: ECOO-ED

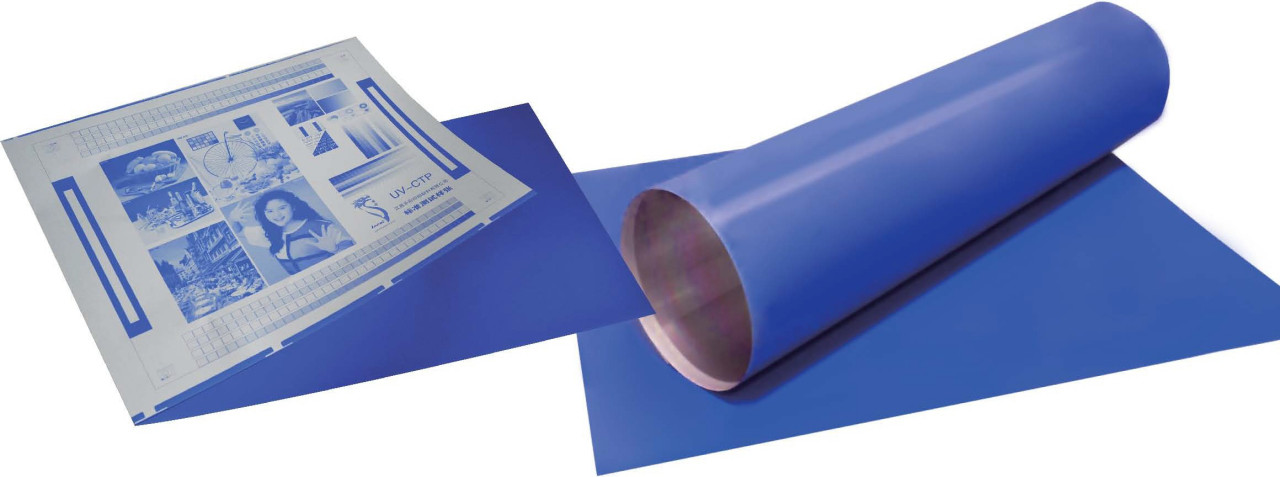

Double Layer, Long Run Length, UV ink Compatible

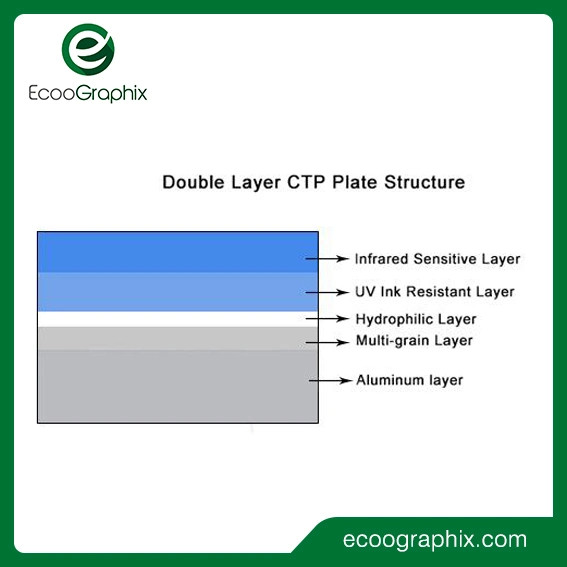

ECOO-ED double-layered thermal CTP plate technology uses a highly chemical resistance second layer

which allows you to enjoy the long-run printing without baking needed.

Compared to single-layered CTP plate, ECOO-ED has combined with high sensitivity,

strong resistance and ability to print both AM and FM screening.









Double Layered Offset Printing Thermal CTP Plate Long Runs 0







Advantages

- Long run length with non-ablative coating - Resist UV-ink; workable with both normal ink and UV ink
- Mature product, good stability and wide processing latitude
 - Being adaptive to most of platesetters, processors and solutions.




Double Layered Offset Printing Thermal CTP Plate Long Runs 1



Features



-Positive writing thermal plate -Double layers system -Made with high grade aluminum from Europe
-Wide adaptability for different plate setter brands -Non-ablative coating
-Run lengths up to 100,000 impressions -UV Ink up to 50,000 impressions -Ability to print both AM and FM screening
Double Layered Offset Printing Thermal CTP Plate Long Runs 2

Specification



Plate Model ECOO-ED
Plate Type Positive Thermal CTP Plate(Double Layer)
Application High grade commercial and newspaper printing
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy Standard 1050 Alloy
Coating Two-layer system, IR sensitive, positive acting
Gauge 0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width Maximum width 1280 mm
Plate intermix Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Press Runs Ordinary Ink: 100,000 to 200,000 impressions
UV Ink : 50,000 to 100,000 impressions
CTP Plate Making Machine
Plate setters
Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS
Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter
Screen : PT-R,Creo : Scitex
EcooGraphix Thermal CTP Tseries
Exposure energy 110 - 130 mJ/cm²
Spectral Sensitivity 800-850 nm – Peaks 830nm
Resolution 1-99% at 200 LPI
Image color Blue
FM capability 20 micron stochastic
Image color Blue Green to Pale Green
Processor All the kind Brands.
Developer Kodak Gold Star or our own developer
Processing temperature 23°C +/- 2°C
Developing time 25 - 30 sec
Processing Speed 0.80 – 1.20 m/min
Safelight Daylight handling
Shelf Life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options
such as APL packaging
Storage and handling Stored in a cool and dry environment, away from excessive cold, heat and humidity.





Workflow




Double Layered Offset Printing Thermal CTP Plate Long Runs 3

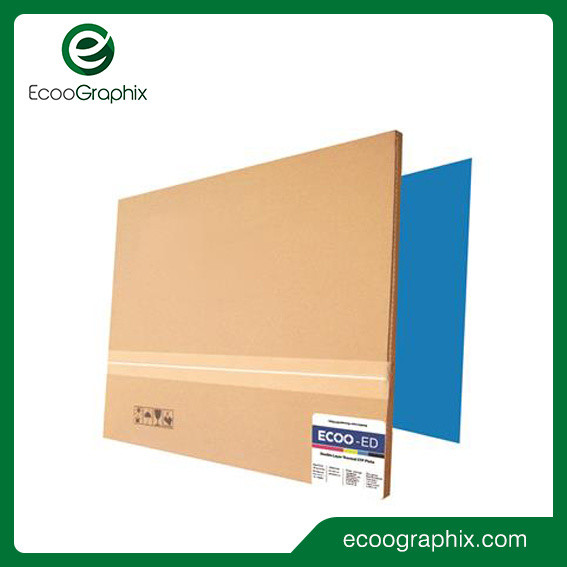

Producing and Packing




Double Layered Offset Printing Thermal CTP Plate Long Runs 4



Double Layered Offset Printing Thermal CTP Plate Long Runs 5



Double Layered Offset Printing Thermal CTP Plate Long Runs 6



Double Layered Offset Printing Thermal CTP Plate Long Runs 7



Double Layered Offset Printing Thermal CTP Plate Long Runs 8



Double Layered Offset Printing Thermal CTP Plate Long Runs 9



Double Layered Offset Printing Thermal CTP Plate Long Runs 10



Double Layered Offset Printing Thermal CTP Plate Long Runs 11



More details




Double Layered Offset Printing Thermal CTP Plate Long Runs 12



Double Layered Offset Printing Thermal CTP Plate Long Runs 13





FAQ


Q1: Can I get a sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can ber returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
